Home > Products > Hydraulic winch & windlass > Hydraulic winch adopted SAI motor of GM motor GMW series 1ton to 100 tons

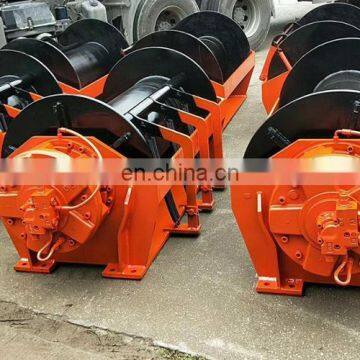

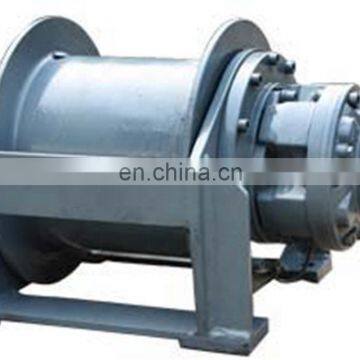

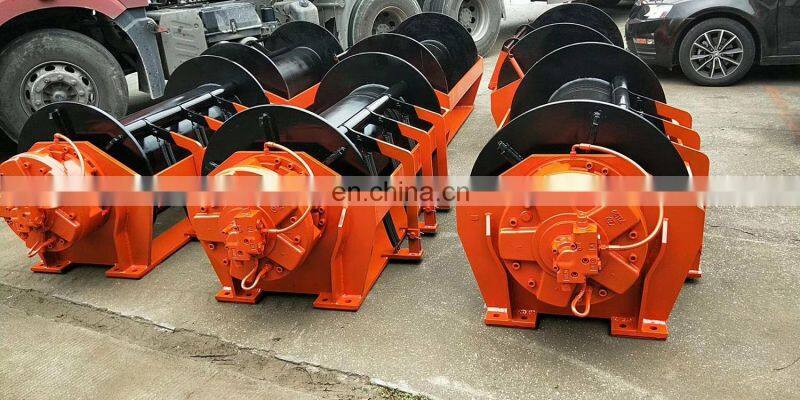

Hydraulic winch adopted SAI motor of GM motor GMW series 1ton to 100 tons
- 500 Unit / Units per Month
- NINGBO SHANGHAI GUANGZHOU
- T/T Credit Card
You May Like
-
Disc valve orbit hydraulic motor BMP series OMT195 OMT245 OMT310 OMT390 OMT490 OMT625 OMT800 OMT985
-
Spool valve orbit hydraulic motor BMR series BMR-50 BMR-80 BMR-100 BMR-125 BMR-160 BMR-200 BMR-250 BMR-315 BMR-400
-
Radial hydraulic piston motor IAM H1 H2 H3 H4 H5 H6 H7 H8 for Intermot
-
Spool valve orbit hydraulic motor BMP series BMP-50 BMP-80 BMP-100 BMP-125 BMP-160 BMP-200 BMP-250 BMP-315 BMP-400
-
Radial Piston Hydraulic Motor Compact CA series CA50 CA70 CA100 CA140 CA210 for Hagglunds
-
Spool valve orbit hydraulic motor BM3 series BM3-80,BM3-100,BM3-125,BM3-160,BM3-200,BM3-250,BM3-315,BM3-400
Product Details
| Brand Name | LXL | Model Number | GMW | |
| Application | Cranes | Power Source | Hydraulic | |
| Capacity | 10KN~1000KN |
Product Description

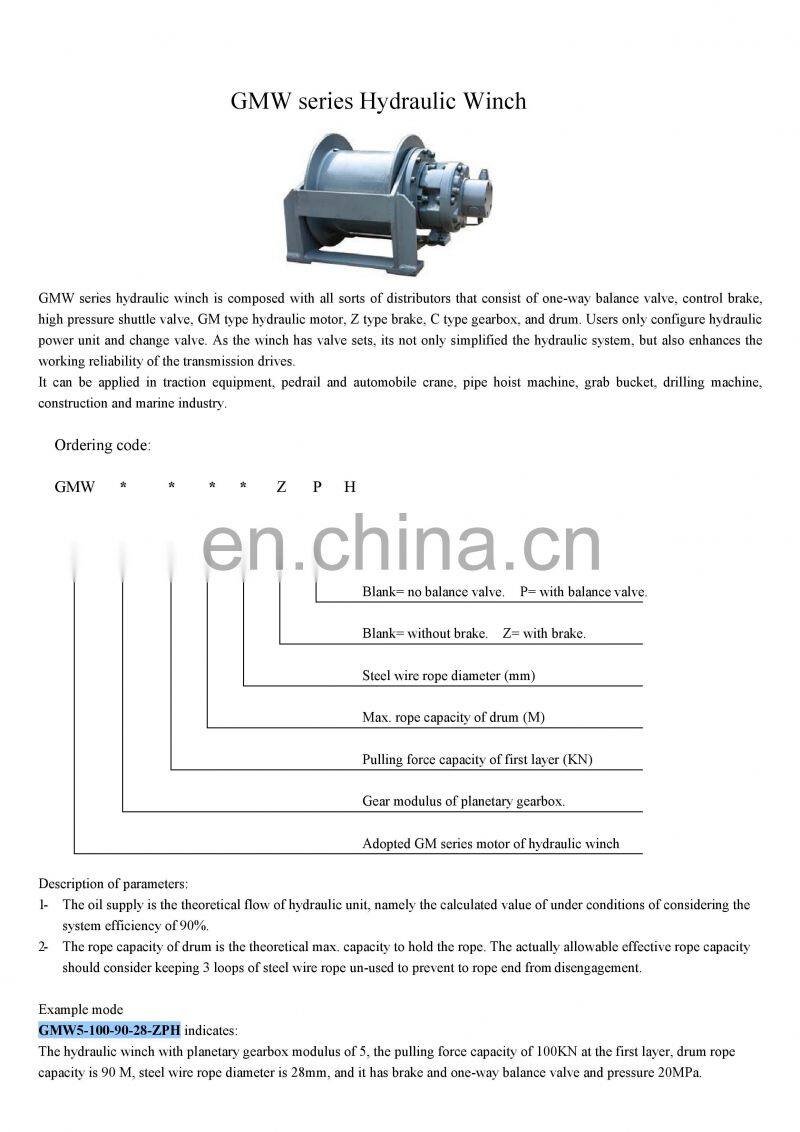

GMW series hydraulic winch is composed with all sorts of distributors that consist of one-way balance valve, control brake, high pressure shuttle valve, GM type hydraulic motor, Z type brake, C type gearbox, and drum. Users only configure hydraulic power unit and change valve. As the winch has valve sets, its not only simplified the hydraulic system, but also enhances the working reliability of the transmission drives.
It can be applied in traction equipment, pedrail and automobile crane, pipe hoist machine, grab bucket, drilling machine, construction and marine industry.

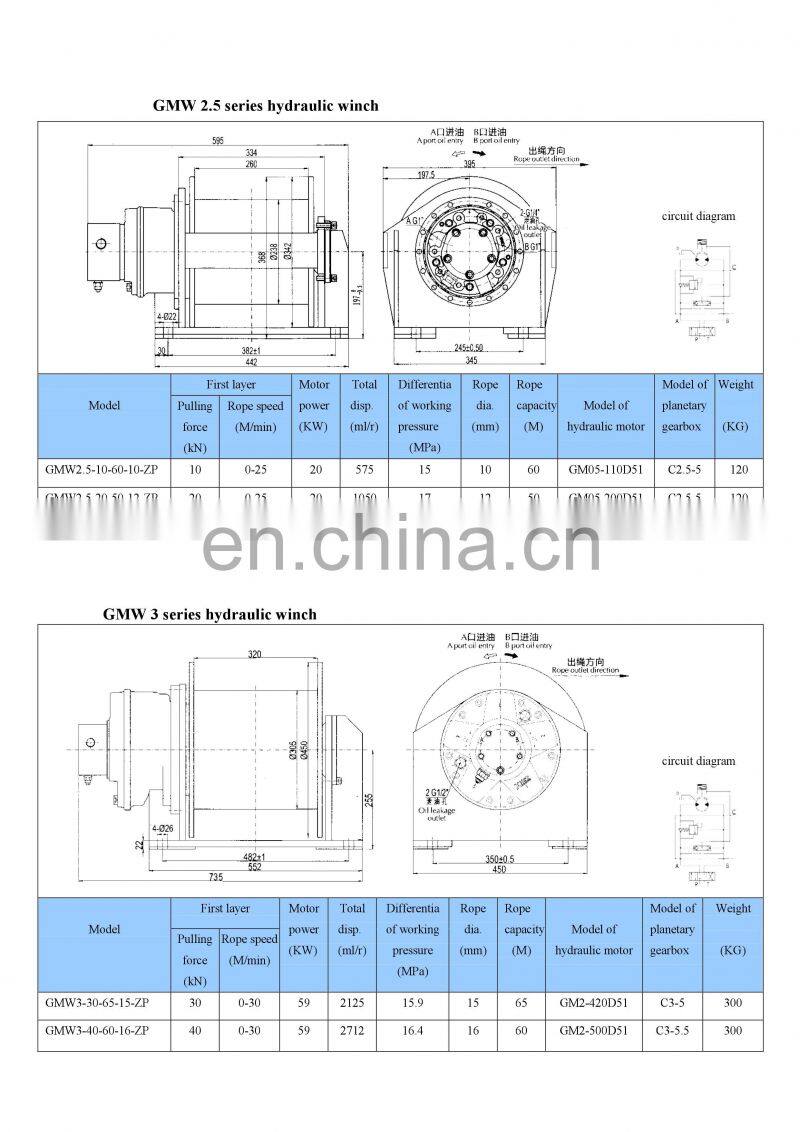

Model | First layer | Motor power (KW) | Total disp. (ml/r) | Differentia of working pressure (MPa) | Rope dia. (mm) | Rope capacity (M) |
Model of hydraulic motor | Model of planetary gearbox | Weight
(KG) | |
Pulling force (kN) | Rope speed (M/min) | |||||||||
GMW2.5-10-60-10-ZP | 10 | 0-25 | 20 | 575 | 15 | 10 | 60 | GM05-110D51 | C2.5-5 | 120 |
GMW2.5-20-50-12-ZP | 20 | 0-25 | 20 | 1050 | 17 | 12 | 50 | GM05-200D51 | C2.5-5 | 120 |
GMW3-30-65-15-ZP | 30 | 0-30 | 59 | 2125 | 15.9 | 15 | 65 | GM2-420D51 | C3-5 | 300 |
GMW3-40-60-16-ZP | 40 | 0-30 | 59 | 2712 | 16.4 | 16 | 60 | GM2-500D51 | C3-5.5 | 300 |
GMW4-50-70-20-ZP | 50 | 0-35 | 80 | 4365 | 16.3 | 20 | 70 | GM3-900D240101 | C4-5 | 550 |
GMW4-60-68-21.5-ZP | 60 | 0-35 | 80 | 5429 | 16 | 21.5 | 68 | GM3-900D240101 | C4-5.5 | 550 |
GMW5-80-100-24-ZP | 80 | 0-35 | 120 | 9080 | 15.6 | 24 | 100 | GM5-1800D240101 | C5-5 | 1200 |
GMW5-100-90-28-ZP | 100 | 0-35 | 120 | 11039 | 16 | 28 | 90 | GM5-1800D240101 | C5-5.5 | 1200 |
GMW6-120-170-30-ZP | 120 | 0-25 | 170 | 16725 | 17 | 30 | 175 | GM6-3000D480101 | C6-5.5 | 2300 |
GMW6-150-150-34-ZP | 150 | 0-20 | 170 | 16725 | 19.8 | 34 | 150 | GM6-3000D480101 | C6-5.5 | 2300 |
GMW7-180-143-38-ZP | 180 | 0-25 | 210 | 23639 | 17.8 | 38 | 143 | GM7-4300D480101 | C7-5.5 | 2800 |
