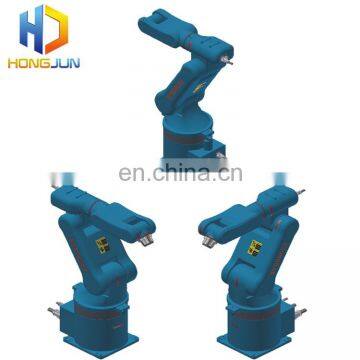

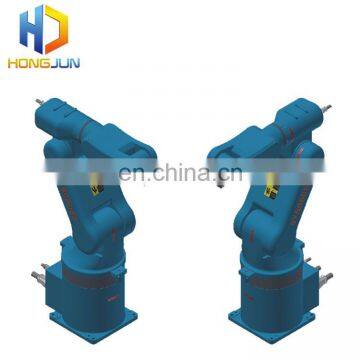

Best price mini 6 axis aluminum alloy educational robotic arm for sale
| Model | SYB0805A | |
| Basic Specs | Freedom Degree | 6 |
| Rated Load (kg) | 5 | |
| Rated load of J3 Axis(kg) | 5 | |
| Position Accuracy(mm) | ±0.05 | |
| Body Weight(kg) | 56 | |
| Installation | Ground/Side Mounted | |
| Power Capacity(kw) | 1.1 | |
| Power Voltage | 220V 1PH | |
| Brake Axis | J2/3/5 Axis | |

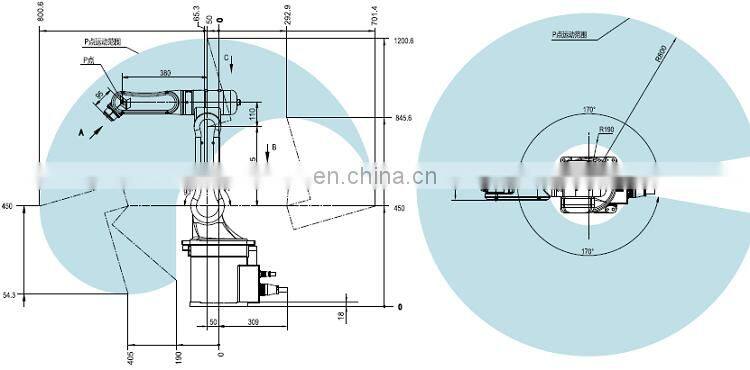

| Motion | Range Motion of P (mm) | 190-800 |
| J1 Axis (Rotation) | ±170o | |
| J2 Axis (lower arm swing) | -90o~+75o | |
| J3 Axis (upper arm swing) | -90o~+90o | |
| J4 Axis (Arm Rotation) | ±170o | |
| J5 Axis (Wrist Pitch) | ±120o | |
| J6 Axis (Wrist Rotation) | ±360o | |
| Speed | J1 Axis (Rotation) | 190o/s |
| J2 Axis (lower arm swing) | 225o/s | |
| J3 Axis (upper arm swing) | 270o/s | |
| J4 Axis (Arm Rotation) | 270o/s | |
| J5 Axis (Wrist Pitch) | 337o/s | |
| J6 Axis (Wrist Rotation) | 420o/s | |
| Final Output Speed | 1.5m/s | |
| Others | Final Flange | Solid |
| Customize to be 5 Axis? | Yes | |
| Upside-Down Installation Customize? | Yes | |
| Isolation Transformer | No | |
| Applications |
Material Handling Palletizing CNC Loading/Unloading Education |
- SY800 Robot Control System
SY800 industrial robot control system adopts the popular opening hardware and software platform.It is equipped with a special multi axis motion control card,a data acquisition card,a robot dedicated terminal and a safety interface.Modularized software designs are for different ontology structures,application industries,function etc.It can control vertical multi joint robot,vertical articulated parallelogram robot,vertical multi joint L wrist robot,Vertical multi joint spherical wrist robot,coordinate robot,multi axis special machinery and many other types of robots. It can be applied in loading and unloading,welding,painting,palletizing,material hangling etc.The standard computer bus can communicate with whole onsite automation system,such as vision system.
SY800 robot control system technical features:
1.The mainstream and efficient hardware platform is composed of the industrial computer with high performance 800MHz main frequency CPU and 512MB memory X86 frame and FPGA motion control card.
2.With industrial grade,mature and stable embedded operating system.
3.Equipped with 4 USB2.0 interfaces,one VGA interface,one Ethernet interface ,and one PS/2 interface.
4.8 inch TFt-LCD,button+touch screen,mode selection switch,safety switch ,emergency stop button.
5.Self-develped industrial robot control software,embedded real-time operating system and soft PLC function,flexible configuration and rich functions.
6.Simple operation interface with button+touch screen input mode.it’s simple and convenient.
7.Supporting Maximum 8 axis.(6+2 extended axis)
8.Continuous operation for 30*40 hours without troube.
9.Widely applied in industrial production.Such as:machine tool material loading and uloading,welding,material handling,pallerizing,spraying,etc.
- SYS100 robot control system
SYS100 robot control system technical features
1. Optimized structure algorithm.Applied to work with many forms of robots.
2. Modular function setting to make a variety of applications.
3. 8 axis control,can realize the external axis(walking slider,positioner) control.
4. Improved computer bus interface to ensure reliability and practicality.
5. Open structure,same with international level,convenient for function expansion.
6. With software PLG function,it is convenient for logical control.
7. Working process function,simplified programming,easy operation.
8. Suitable for various increments with absolute servo.
9. With Safety module to ensure the safety of robot workstation.
SYS100 robot control system technical specification
| User memory space | 200M |
| Teaching pendant | 8 inch TFT-LCD,button+touch screen,mode selection switch,safety switch,emergency stop button |
| Axis quantity that can be controlled | 6+2 axis,6 robot body axes +2 external axes. |
| Interface | Digital I/O interface,With 2 version I/O options(24 input/output or 32 input/output(expandable)). |
| 4 way 0-10V analog output.12 bit accuracy. | |
| Multiplex encoder signal interface (position tracking). | |
| Special terminal interface for robot,hard limit,Anti-collision,Maintenance switch,Brake control. | |
| Ethernet interface,serial communication(RS232,485,422)interface. | |
| Safety module | Associated with abrupt stop.Robot abnormal signals will ensure rapid stopping of robots. |
| Servo control | Absolute,incremental type.It can work with Delta,Yaskawa,MITSUBISHI,Sanyo,Matsushita,Fuji,Tamagawa and other servo brands made in China. |
| Operation mode | Teaching,reproduction,remote. |
| Programming mode | Teaching programming to work the whole working process.(palletizing,welding,gluing,tracking,vision,booking etc.) |
| Moving function | Point-to-point,straight line,Arc. |
| Command system | Motion,logic,process,operation. |
| Control mode | position control. |
| Coordinate system | Joint coordinates,cartesian coordinates,user coordinates,tool coordinates,and base coordinates |
| Software PLC function | Ladder diagram editing,5000 steps. |
| Abnormal detection function | Abnormal stop,abnormal servo,anti-collision,safety maintenance,abnormal arc,abnormal user coordinates,abnormal tool coordinate etc. |
| Structure algorithm | Vertical multi joint series,vertical multi joint parallelogram,vertical multi joint L shape wrist robot etc. |
| Zero position function | Absolute type;Battery memory;incremental type;turn back to zero and save the coordinates automatically. |
| Application | Handling,welding,spraying,palletizing,cutting,polishing,forging,casting etc. |
| Power Supply | AC220V+/-15% 50/60Hz 200W |
| Outline size | 34*192*104mm |
As one of the earliest manufacturers of industrial robots, we always focus on improvement of our technology as well as the products quality! We started our manufacture since 2005 and our main products are CNC loading/unloading robots, palletizing robots, welding robots, material handling robots and grinding robots ect. Our robots rated load capacity from 3kgs to max. 80kgs and widely used in different industrial field and won high reputation in both China and overseas!
Our robots are widely use in different industrial fields such like:
- CNC machineing loading/unloading robot
- welding robot
- material handling robot
- palletizing robot
- grinding robot
- gluing/spray robot
- B1410B robots for CNC material loading and unloading
- Hongjun H1806A welding robots. Engineer supplying training for customers
- We supply overseas installations and testing for our customers
- One-stop supply service-welding robots H1505A welding kits
- Customize color and logo for customers
- Different types of robotics attachments
We use export standard wooden box to protect our robots well for shipping!
1. Are you a trading company or a manufacturer?
We are a specialized manufacturer for industrial robots since 2005!
2. What is your warranty for your robots?
We supply 24 months warranty for our robots.
3. What after sales service can you supply
a) we supply free parts within warranty period
b) we can send our engineer to overseas to help customers do the installation and testing
4. What is the MOQ of your robots?
Our MOQ is 1 pcs.
5. Can you customize your robots?
Yes we can customize the color and the logo and others for our customers!
