High quality 4 inch solid tire gearless 36V bicycle kit electric brushless scooter hub motor
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
CE 3 inch 36v single shaft brushless gearless for wheelchair electric scooters wheel motor
-
high quality 5" 5inch 250W wheel electric bike kit hub motor
-
CE approved high quality 8" 8inch 48v brushless gearless electric hub motor
-
CE 10 inch gearless DC brushless ETECH electric wheel hub motor
-
CE approved High quality 4" 4inch 24v 36v 200W DC brushless geared hub motor
-
CE High quality 4 inch 24v 36v brushless gearless single/double shaft hub motor
Product Details
| Brand Name | ETECH | Place of Origin | Sichuan, China |
Product Description
High quality 4" 4inch 24v 36v gearless hub motor
A hub motor is an electric motor that turns a wheel without the use of a transmission. This is accomplished because a hub motor is built directly into the wheel's hub, which is the point around which the wheel rotates. This by passes the need for a transmission, so hub motors are more efficient, especially at high rates of speed. It is common to find a hub motor on an electric bicycle.
Parameters of Etech 4 Inch Gearless DC Hub Motor
Motor Voltage: DC 12V/24V/36V
Power: MAX:200W
Speed: MAX:25km/h
Diameter with tire: 100mm
Brake: EBS brake
Tire: solid type
Weight: 1.5KG with tire
Size: 4 inch
Sensor: With hall sensor
Testing report
Testing curve
Drawing

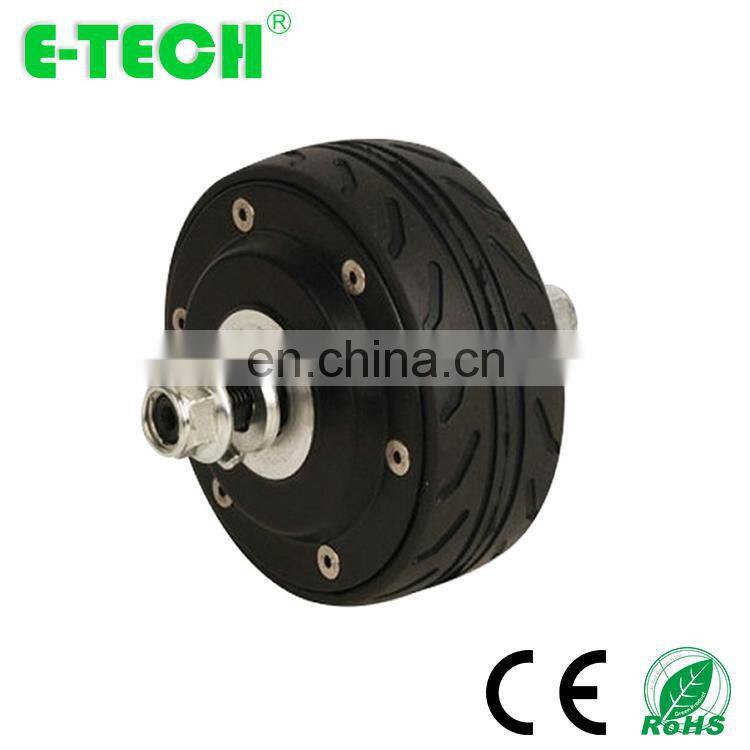

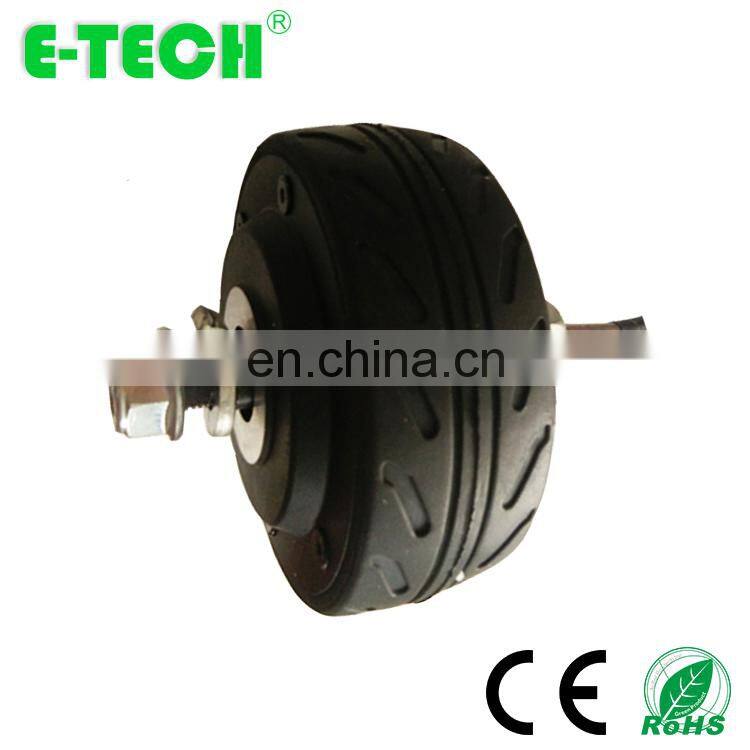

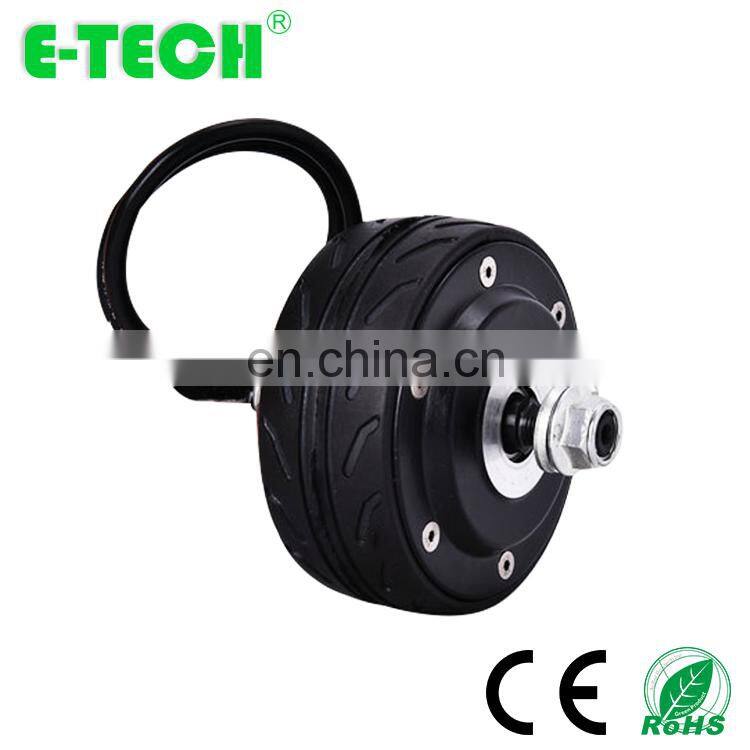

Products photos
