CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics

CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics thumbnail-1
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics thumbnail-2
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics thumbnail-3
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics thumbnail-4
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics thumbnail-5
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics photo-1
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics photo-2
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics photo-3
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics photo-4
CE Approved High Quality 4" 4inch 36v 200W DC Brushless Geared Hub Motor for Robotics photo-5
US$ 95 - 95 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ETECH
Place of Origin:
Sichuan, China
Model Number:
HJ-001G
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETECH
Place of Origin Sichuan, China
Model Number HJ-001G
Product Description

High quality 4" 4 inch 24v 36v geared hub motor

 A hub motor is an electric motor that turns a wheel without the use of a transmission. This is accomplished because a hub motor is built directly into the wheel's hub, which is the point around which the wheel rotates. This bypasses the need for a transmission, so hub motors are more efficient, especially at high rates of speed. It is common to find a hub motor on an electric bicycle.



Parameters of E-tech 4 Inch Geared DC Hub Motor

Voltage:

DC 24V/36V

Power:

MAX:200W

Speed:

MAX:6-8km/h

Diameter with tire:

100mm

Brake:

EBS brake

Tire:

solid rubber tire

Weight:

3KG with tire

Size:

4 inch

Sensor:

With hall sensor



Testing Report (36V)

CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics

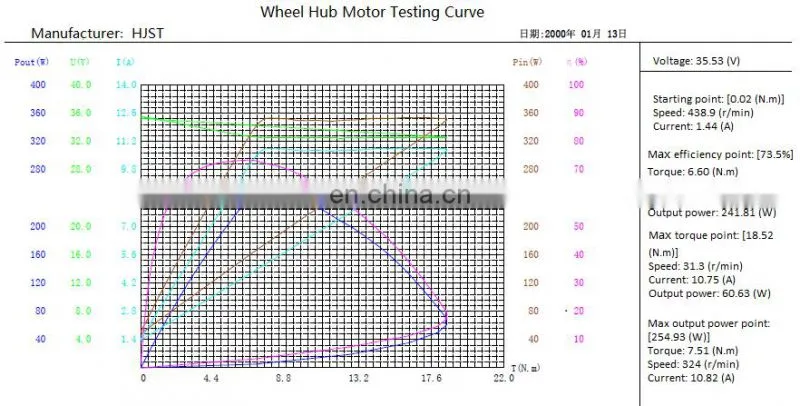

Curve

CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics

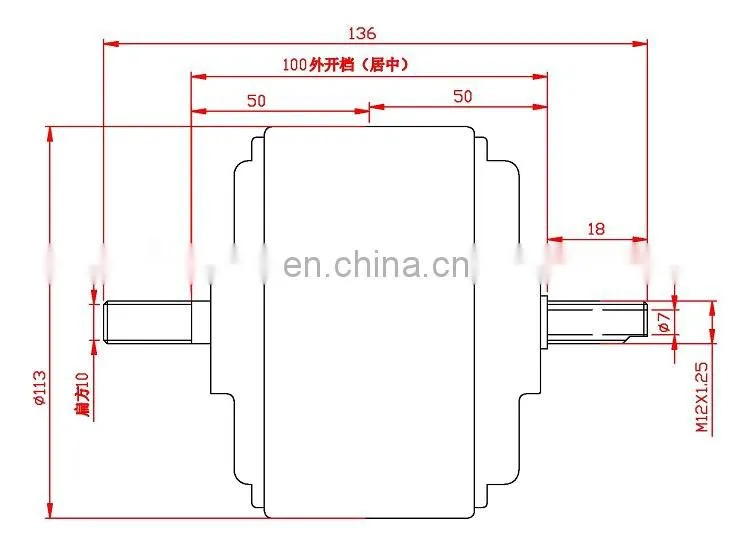

Drawing

CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics

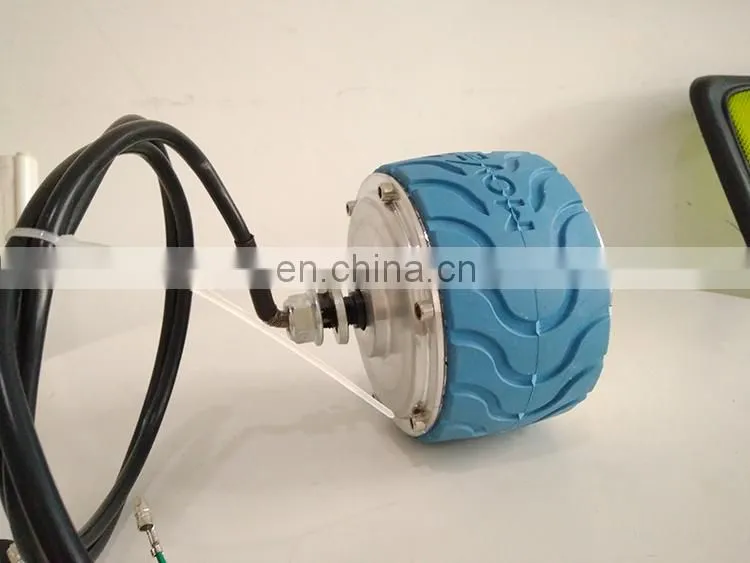

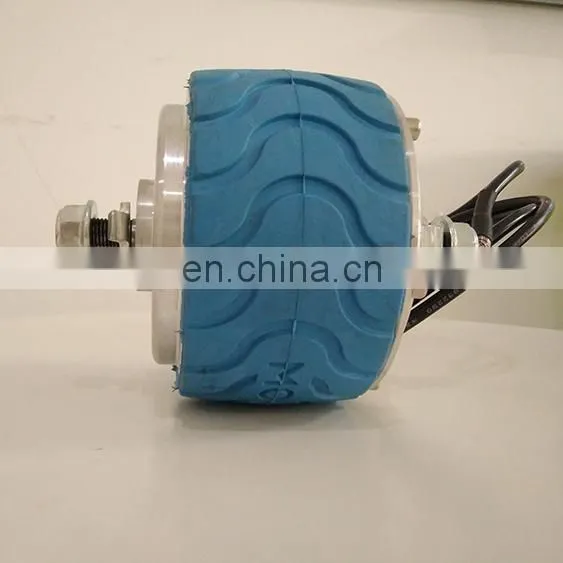

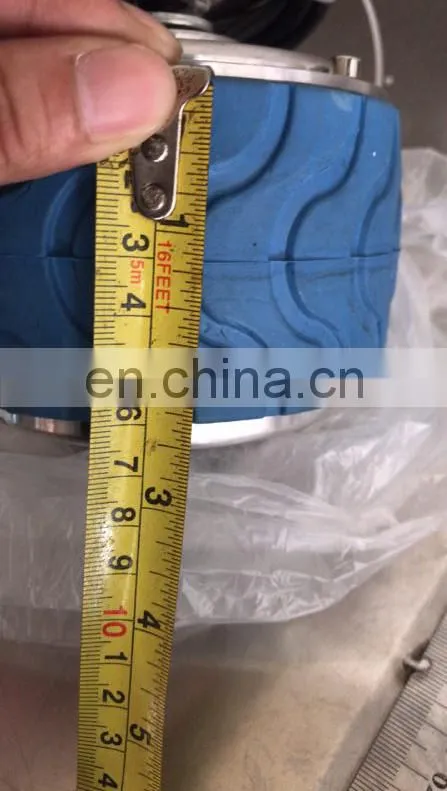

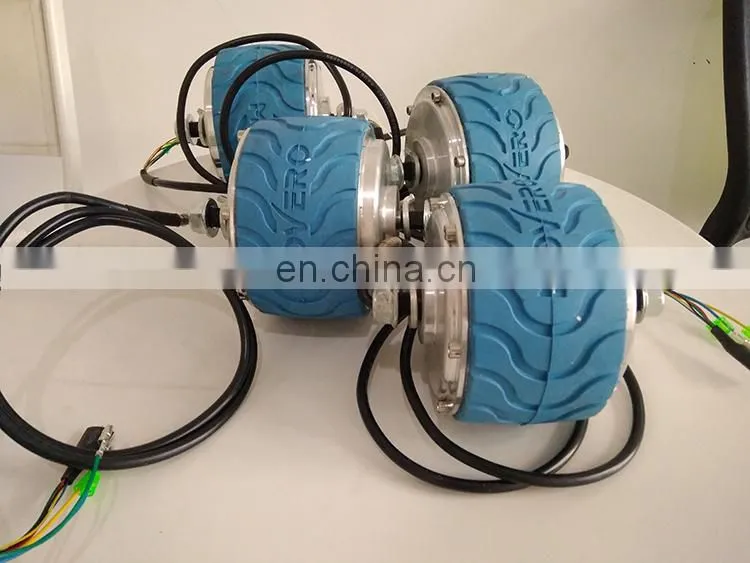

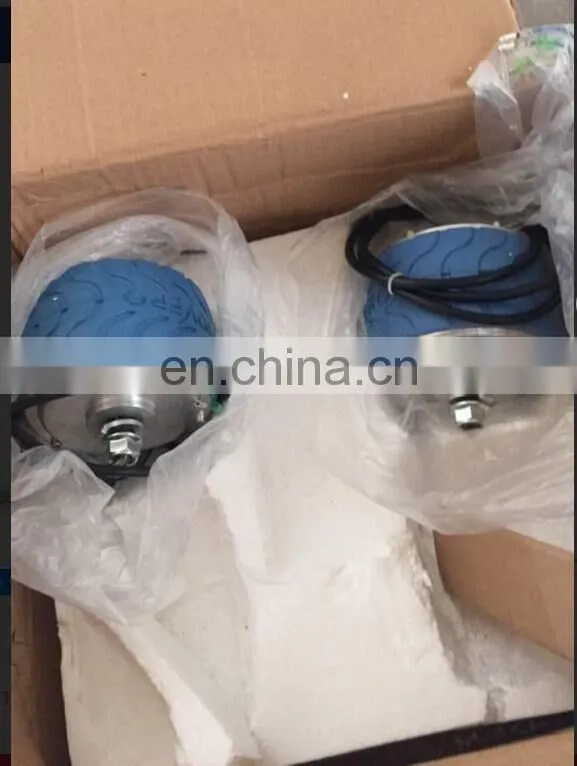

 Products Photos

CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics



Other related spare parts from us:CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics

CE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for roboticsCE approved High quality 4" 4inch 36v 200W DC brushless geared hub motor for robotics





FAQ

 1. Factory or trader?
We are factory, the source of the supply chain.
2. Low speed 4 inch hub motor with gear deliver time?
- Sample: 3 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
