Home > Products > Hub Motor > High Torque 4.5inch 24V 36V 48V Robot Hub Motor Wheel With 1024 Optical Encoder

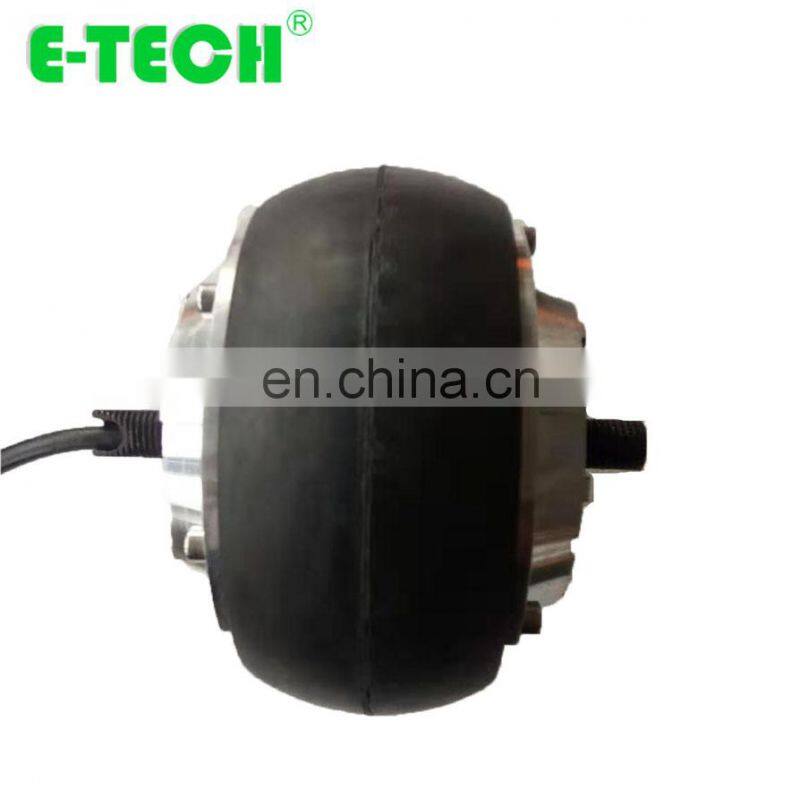

High Torque 4.5inch 24V 36V 48V Robot Hub Motor Wheel With 1024 Optical Encoder
US$ 95 - 119
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
E-tech 8 Inch 24v 36v Brushless Scooter Electric Brake Hub Motor
-
High Quality 10 Inch 36V 500W Gearless DC Brushless Double Shaft Electric Wheel Hub Motor
-
High Quality 10 Inch DC Brushless 48v 800w Electric Wheel Hub Motor
-
High Quality 10 Inch 24V 250W Kit Bike Electric Wheel Hub Motor With Tire
-
ETECH 5inch 250W E-Scooter Wheel Electric Hub Motor
-
13 Inch 24V 36V 48V 250W 400W 500W 800W Electric Hub Motor With Off-rode Tyre
Product Details
| Brand Name | ETECH | Place of Origin | Sichuan, China |
Product Description
| Hub Motor | 4.5 inch DC brushless gearless hub motor with encoder for robots |
| Hall sensor | 5 hall sensor |
| Brake | EBS brake |
| Motor wheel size | 4.5 inch |
| Voltage | 24V/36V/48V |
| Power | 150W-400W |
| Speed | 300-1500rpm |
| Tire diameter | 121mm |
| Load weight | Max 100kg |

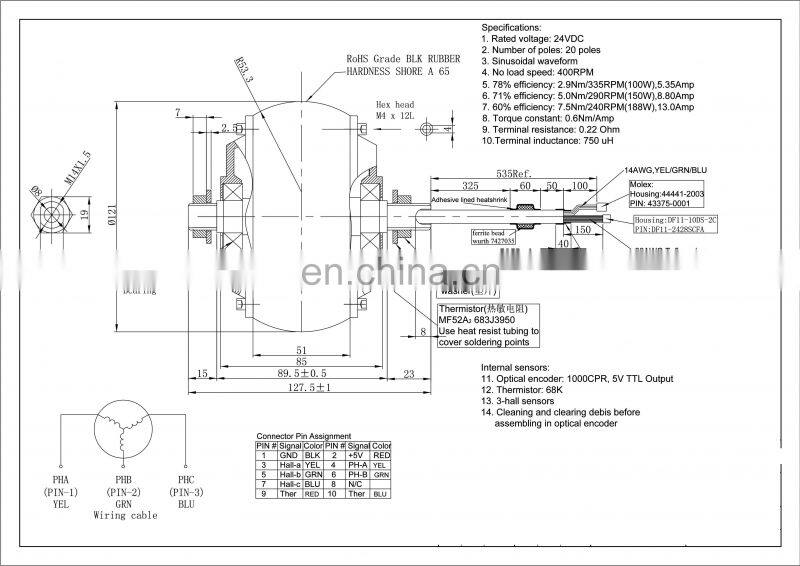

Drawing
Testing Curve

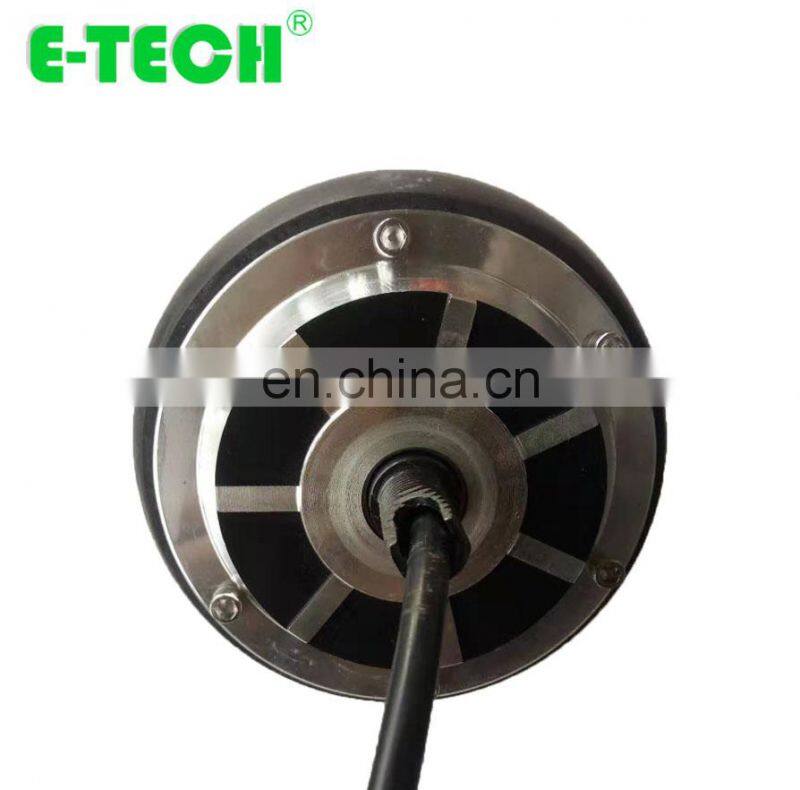

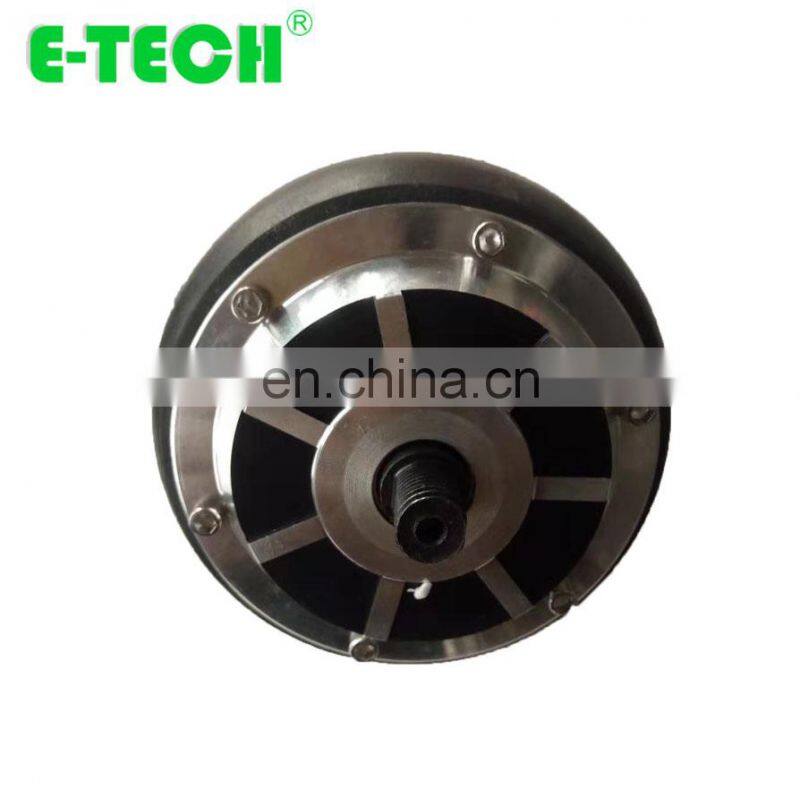

Products Photos
Other parts from us
all gearless motor
all geared hub motor
Application
Our hub motors from 3 inch to 15 inch are widely used for below application, also you can do DIY and use it to bulid other products
FAQ
1. Factory or trader?
We are factory, the source of the supply chain.
2.hub motor deliver time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
