Home > Products > Hub Motor > Robotics Motor Wheel 5 Inch 36V 250W 1024ppr Hub Motor Wheel With Driver

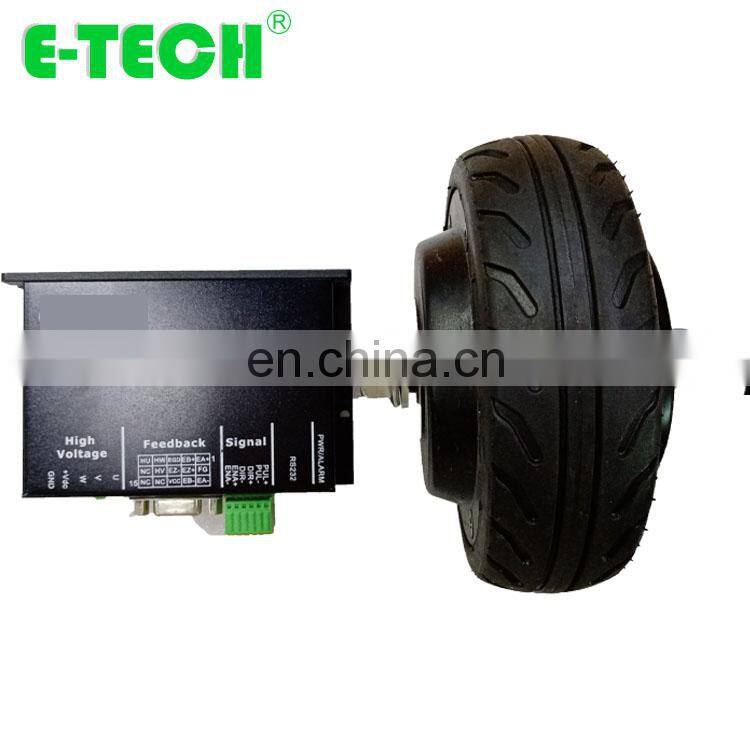

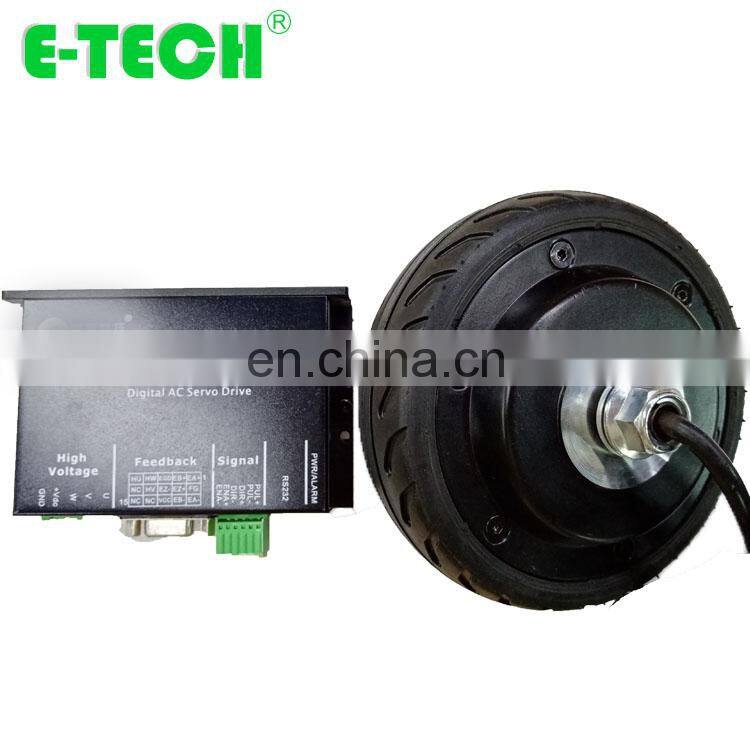

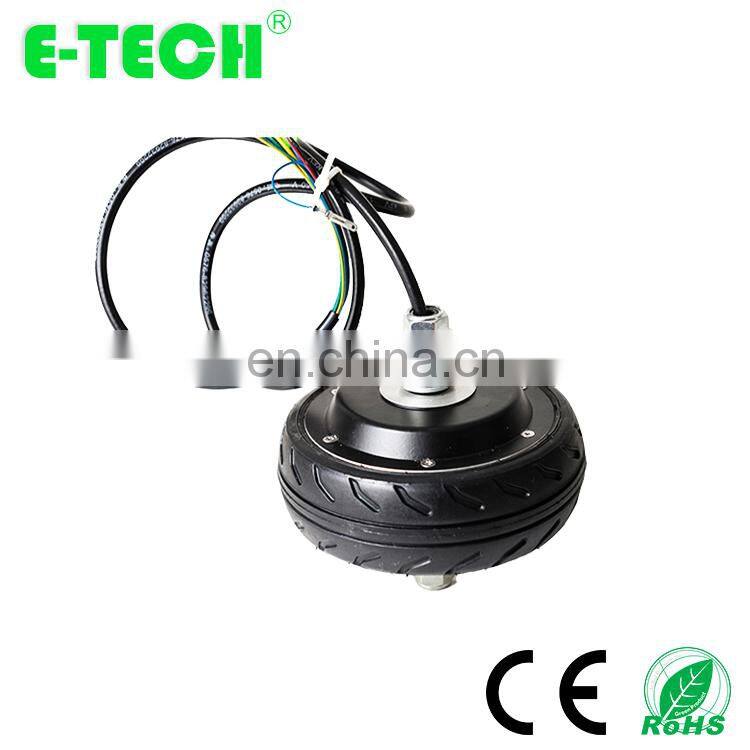

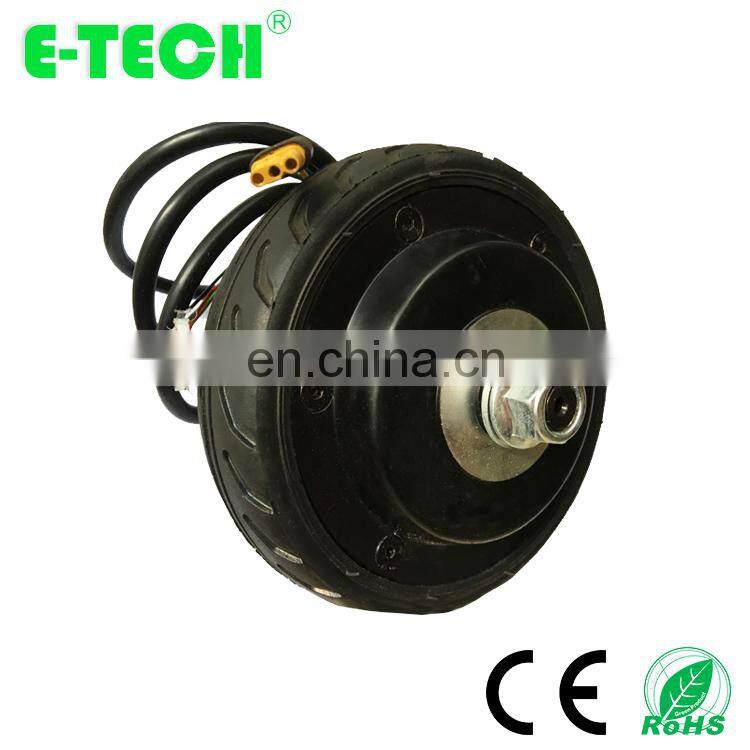

Robotics Motor Wheel 5 Inch 36V 250W 1024ppr Hub Motor Wheel With Driver
- T/T Credit Card
You May Like
-
Programmable 5 Inch 24V 250W 1024ppr Incremental Encoder Hub Motor Wheel With Driver
-
DC Brushless Gearless 13 Inch Single Shaft 48V 800W Electric Hub Motor With Encoder
-
Programmable DC 15 Inch Geared 48v 400W Robotics Motor Wheel With Encoder
-
DC Brushless 1024 Line Encoder 13 Inch Geared 33cm Single Shaft 250W-400W Hub Motor With Hall Sensor
-
Built-in Encoder 10 Inch Single Shaft Pneumatic Tyre Geared 24V/36V/48V Electric Wheel Hub Motor
-
8 Inch Bldc Geared Single Shaft Brushless dc Hub Motor With Encoder Robot Motors
Product Details
| Size | 5 inch | Weight | 2kg |
Product Description
| Voltage: | DC 36V |
| Voltage: | MAX:250W |
| Speed: | MAX: 18-25km/h |
| Diameter with tire: | 128mm |
| Brake: | Electronic brake |
| Weight: | 2.5KG |
| No Load Speed: | 300-1200rpm |
| Sensor: | With hall sensor |
| Motor type: | brushless and gearless hub motor |

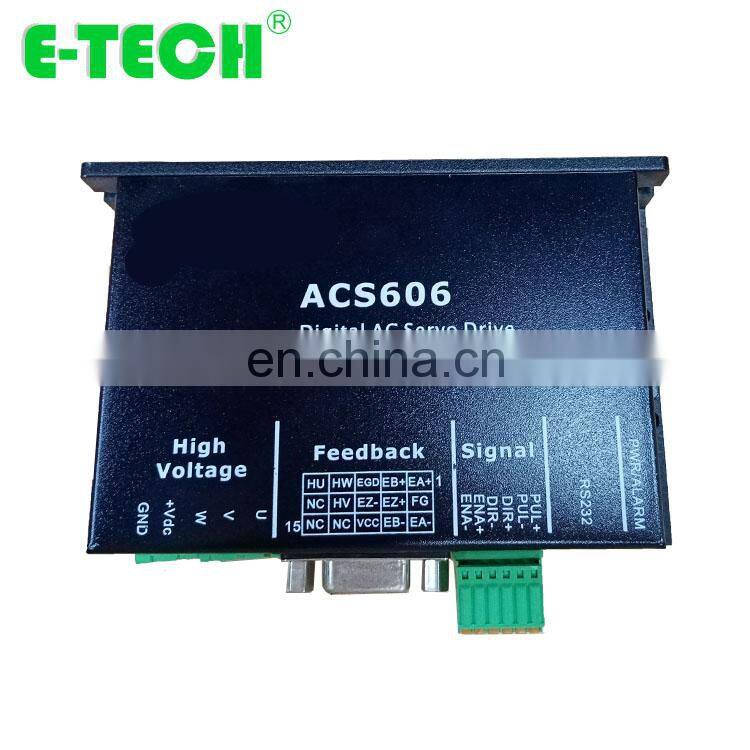

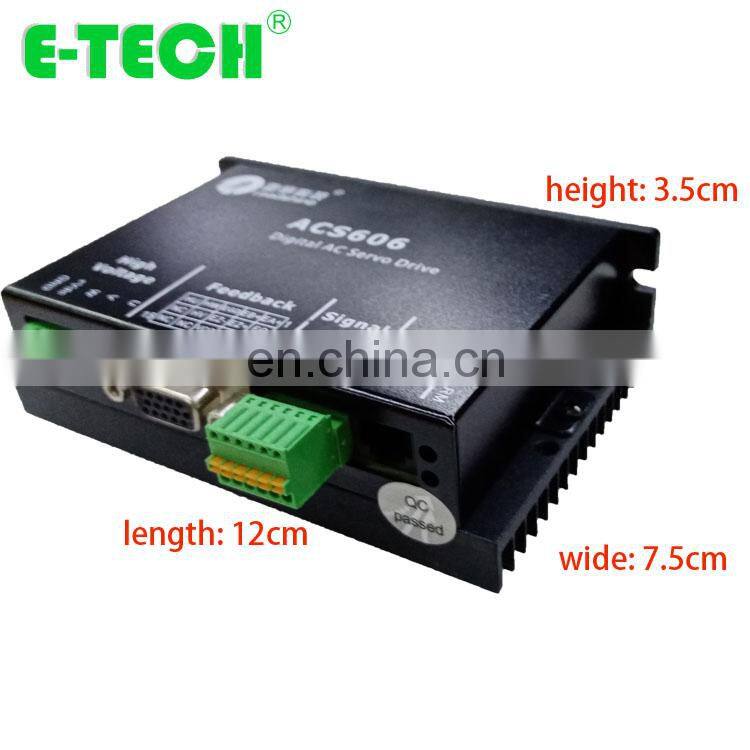

| Driver: | conmunication based on 232 |
| Encoder: | 1024ppr Incremental encoder |
| Pole: | 10 pair |
Wire definition
Phase line
First phase: U. thick green wire
Second phase: V. thick yellow wire
Third phase: W. thick blue wire
Encoder
A pulse: purple thin wire
B pulse: gray thin wire
Temperature control induction line: orange thin wire, white thin wire
Hall sensor
Positive pole: +5V red wire
Negative pole: GND black wire
First phase: A(Uu). thin green wire
Second phase: B(Vv). thin yellow wire
Third phase: C(Ww). thin blue wire
1. Factory or trader?
We are factory, the source of the suplly chain.
2. Delivery lead time?
- Sample: 3 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-aplication.
* Self Protection system avoid damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
Contact: Marilyn Zeng
Mobile no.: +86 17348063677 (WhatsApp)
Skype:live:15b6443287481faa
Wechat: 17348063677
Email: hj006(@)
