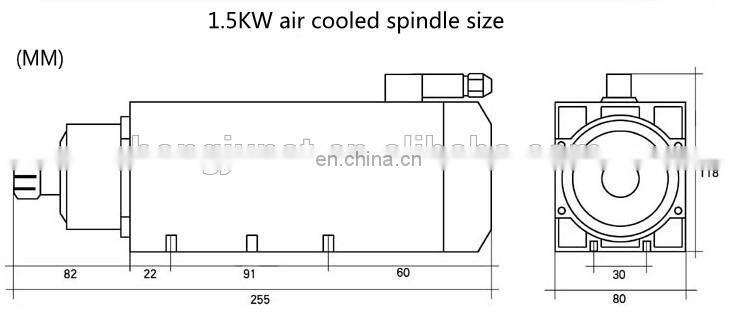

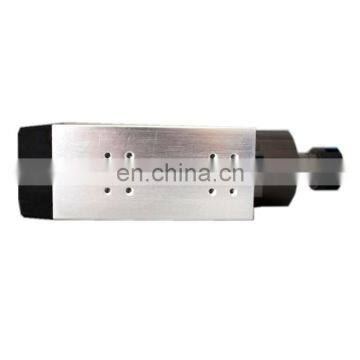

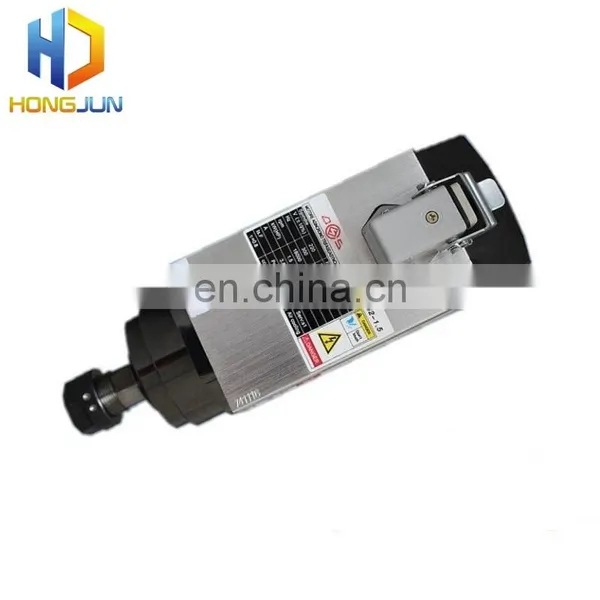

China factory 1.5KW 18000rpm ER20 air cooled spindle motor with 220V/380V
- 1000 Piece / Pieces per Month
- T/T Credit Card
- China manufacturer air cooling spindle motor for cnc milling with square type
- mini air coolded spindle motor for cnc for wood CNC router
- ER11 220V 500W air cooled Mini spindle motor for CNC
- 2.2kw ISO20 ATC water cooling spindle motor for cnc machine
- low speed spindle motor for cnc
- 24000RPM 2.2KW water cooled high speed CNC router lathe AC spindle motor for metal cut
Product Details
Brand Name: | HONGJUN | Place of Origin: | Sichuan, China | Model Number: | GDZ93*82-1.5, 1.5kw Air Cooled Square Spindle Motor |
Weight: | 6.5kg |
Product Description
4.5KW air cooled spindle motor
Material : spindle cover is 304 stainless steel,water jet is high pressure casting aluminum pipe,copper coil
Power connection
GX16 waterproof aviation plug,(1/2/3)connect inverter(U/V/W)in turn,4 connect inverter earth wire
Model | GDZ-100-4.5 |
Rev(rpm) | 24000 |
Power(kw) | 4.5 |
Voltage(V) | 380(2200V is optional) |
Current(A) | 10A |
Frequency(HZ) | 400 |
Cool type | water cooling |
Diameter(mm) | 100 |
Lubricate | Grease |
Bearing | 7005C P4*2 7003C P4*2 |
Collet(mm) | ER20(standard size 6MM diameter) |
Repair time | Bearing(half year), spindle(one year) |
Size | 125mmx260mm |
Connection

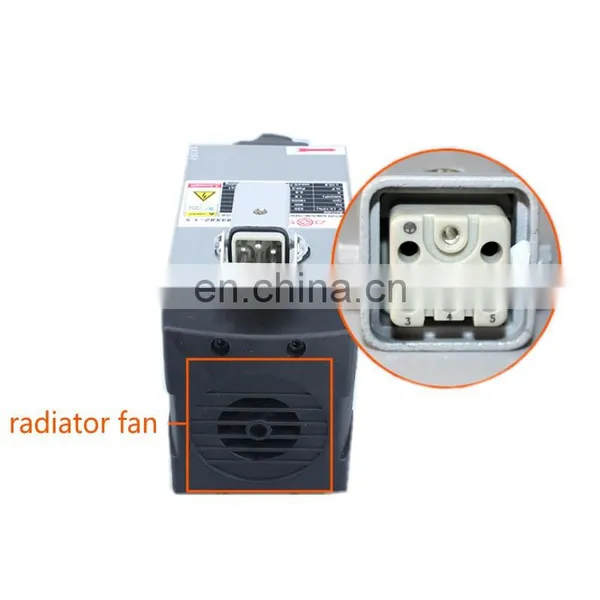

professional sqaure aviation plug,1 2 3 connect inverter ouput port (U/V/W), 4 and 5 connect temperature protection,6 connect earth wire
Warranty
Bearing(one year), spindle(one year)
Main spindle motor,So if u need other spindle motor.you also buy them from me.

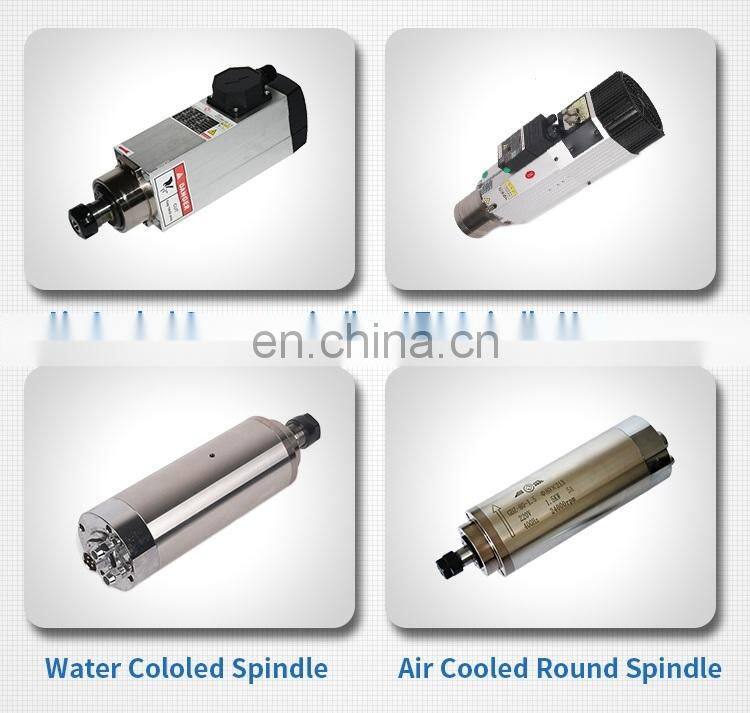

1.water cooled spindle motor:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooled spindle motor: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.air cooled ATC spindle motor:4.5kw,7.5kw,9kw
4.water cooled ATC spindle motor:1.5kw,2.2kw,5.5kw,6kw,7.5kw
We can provide all the spindle motor parts if you have more needs. We can give you more advice

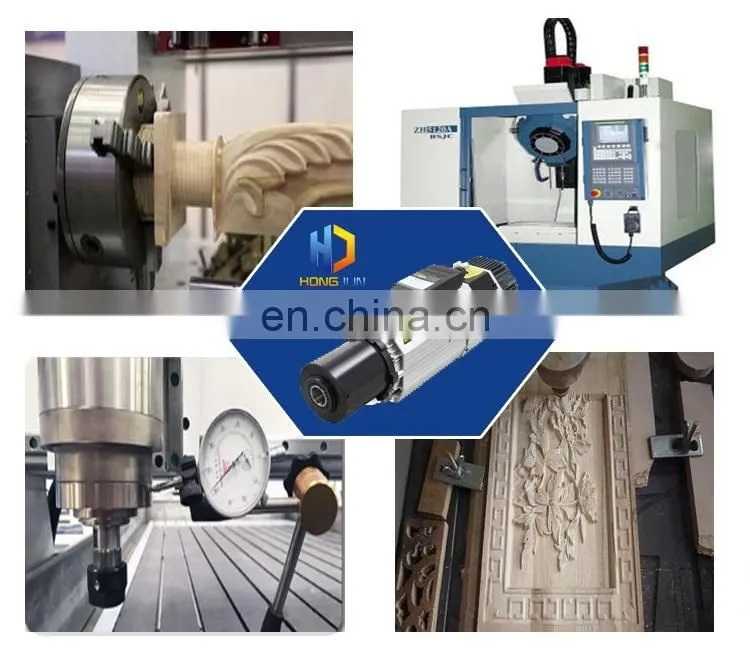

spindle motor is suitable for engraving machinery equipment, CNC numerical control equipment, industrial robots, wood processing, metal processing, plastics, glass and other industries, and for milling, drilling, milling, cutting, slotting and other fields

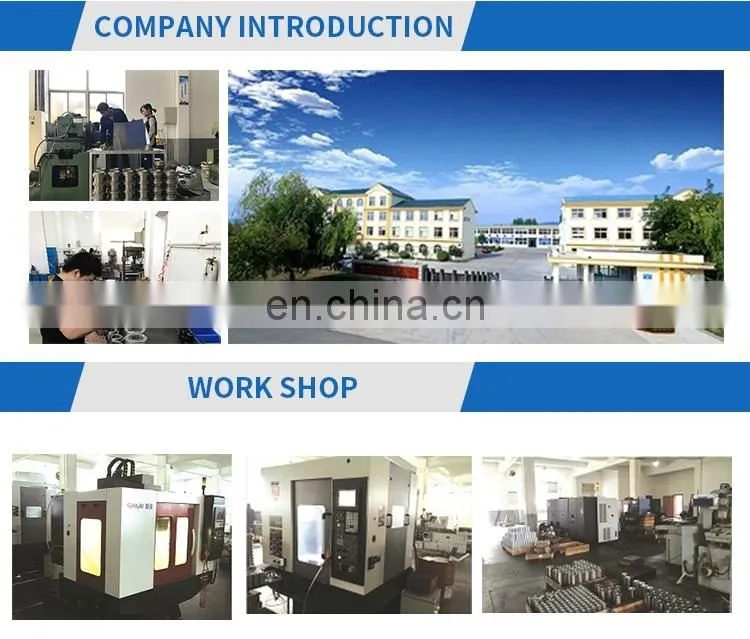

SICHUAN HONGJUN SCIENCE AND TECHNOLOGY CO., LTD.
SICHUAN HONGJUN SCIENCE AND TECHNOLOGY CO., LTD is pressional and technology manfacture of high speed spindle motor. with 20 years production experience.

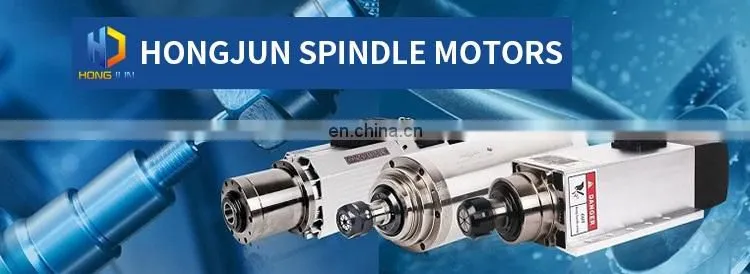

Our main spindle motor are water cooled spindles, air cooled spindles, ATC spindles, and edge bander spindles. Our products are widely used in grinding, Engraving, CNC drilling machine.
We welcome your coming at any time for bussiness cooperation.
We have two packaging methods for spindle motor
1. Low-power spindle motor is generally used in paper boxes
2 automatic tool change and high power spindle motor used in wooden boxes
