Hollow Shaft Gearbox PLE80 16:1 Ratio Planetary Gearbox High Quality Spur Gear 2 Speed Gearbox
Planetary Gearbox for Stepper Motor & Servo Motor:
Our New invent heavy-duty double support structure, carrying capacity & overload capacity has been doubled.
It's easy to install and same size with the mainstream of Taiwan, could directly replace PHT/VGM high-end planetary reducer.

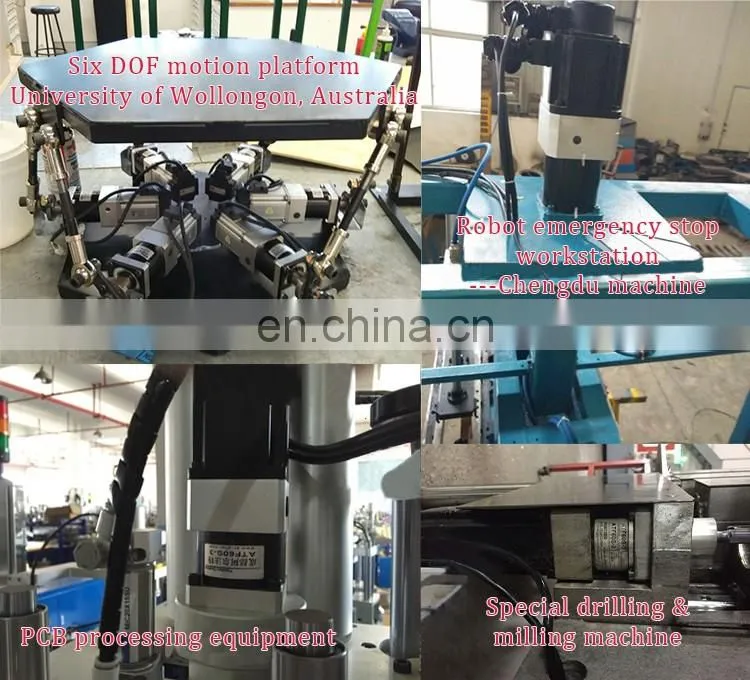

This spur planetary gearbox is used for servo motor and related device which need to redce speed or enlarge torque! Our spur planetary gearboxes external diameter from 40 to 190, gear ratio from 3 to 1000! It has high precision and are widely used with servo motor such like Panasonnic, Mitsubishi, Omran, Teco...
-----------------------------------------------------------------------------------------------------------------------------------------------------
HOINGJUN Planetary Gearbox Application:
High precision (backlash 3-7 arc minutes), maintenance-free, lightweight design, small size, compact structure, easy install and cost-effective.
1) Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 57, 60, 70, 80, 86, 90, 110, 115, 120, 130, 142, 160, 190mm
3) Reduction ratio:
1 Stage: 3:1, 4:1, 5:1, 8:1, 10:1
2 Stage: 9:1, 12:1, 16:1, 15:1, 20:1, 25:1, 32:1, 40:1, 64:1, 100:1
3 Stage: 60:1, 80:1, 100:1, 120:1, 160:1, 200:1, 256:1, 320:1, 512:1, 1000:1
4) Lubrication: Lifetime lubrication
5) Output type: Round and Square
6) Input speed: 3000- 8000rpm
7) Life: 30, 000 hours
8) Backiash: Stage 1: <3 (arcmin)
Stage 2: <6 (arcmin)
Stage 3: <8 (arcmin)
9) Operating temperature: -25C to +90C

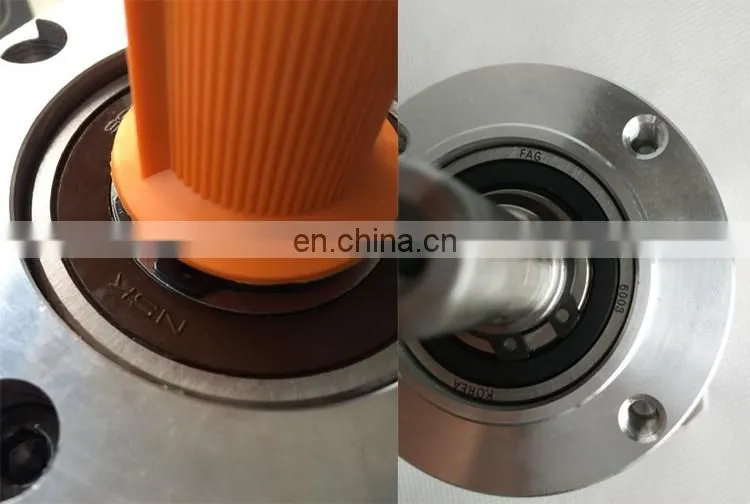

Bearings are imported from Japan's NSK and Germany FAG. Experts understand that good bearing is the key point for reducer's using life.
Input: perfect dynamic balance design, minimize vibration of the device. No cast parts!
Packing Method:
1: MOQ: 1 pcs minimum order
2: Packing: 1 pcs per box or according to your requirements. (Carton / Wooden / Customized)
Shipping:
* We support TNT, DHL, UPS, FedEX, EMS and ourown Shipping Forwarder.
* 3 days by AIR & 30-45 days by SEA. (Europe and North America)

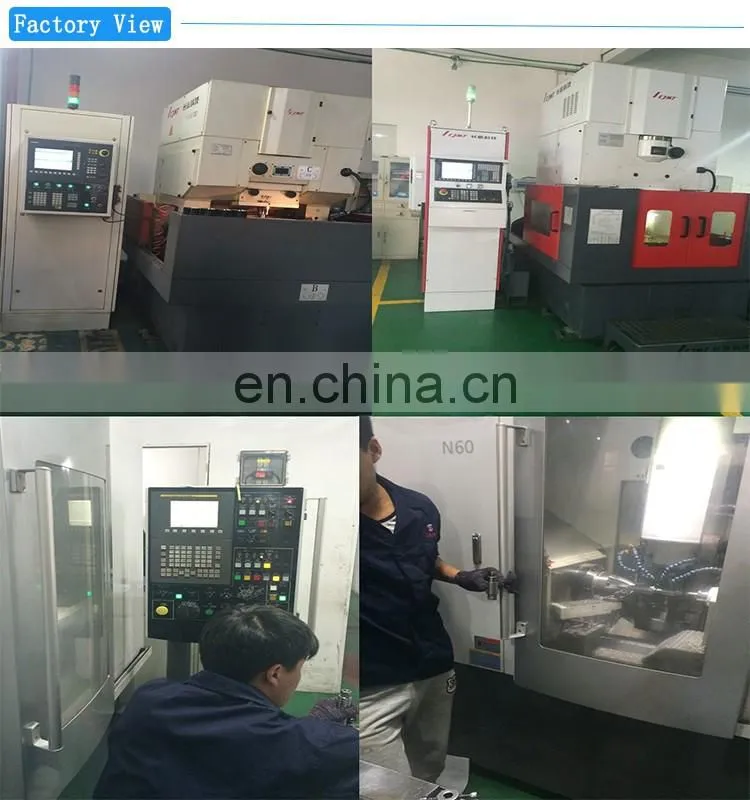

As one of the leading manufacturer for precision planetary gearbox and AC/DC Motor, Hongjun Science and Technology Co., Ltd. works in this field for more than 15 years! We have the biggest market share in domestic China market.
