Home > Electrical & Electronics > Inverter > Power Inverter > Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder

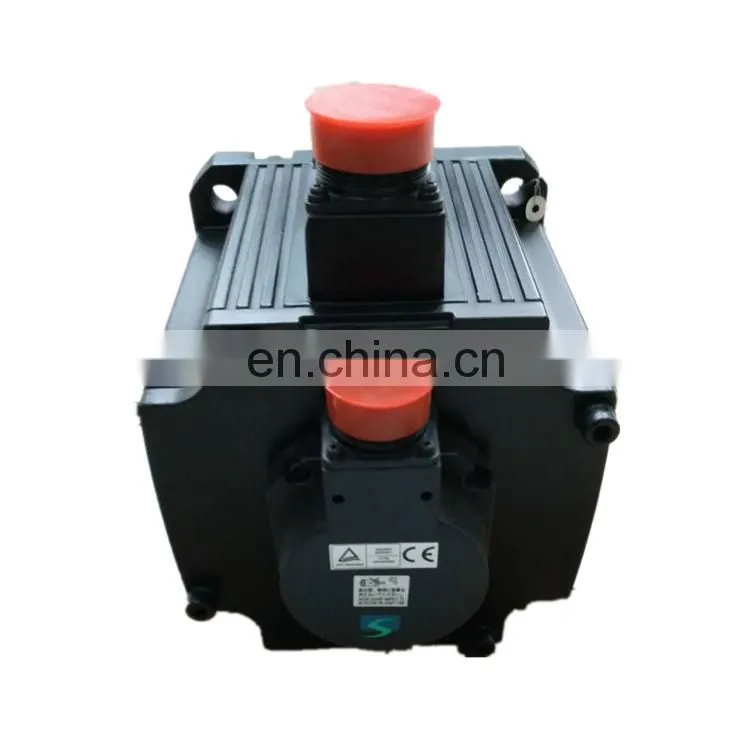

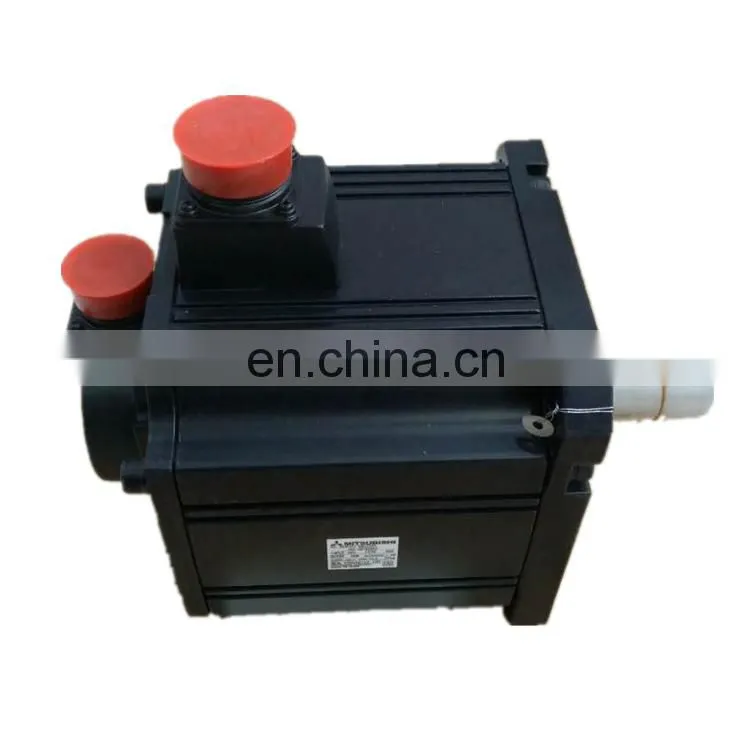

Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder

Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder thumbnail-1
Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder thumbnail-2
Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder thumbnail-3
Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder photo-1
Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder photo-2
Super Power Servo Motor 7kw Mitsubishi HC-SF702 / HC-SF702K With Encoder photo-3
US$ 900 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-SF702 / HC-SF702K
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-SF702 / HC-SF702K

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder

Product Description
Servo motor model HC-SF81 HC-SF121 HC-SF201 HC-SF301 HC-SF52 HC-SF102 HC-SF152 HC-SF202 HC-SF352 HC-SF502 HC-SF702
Rated power(KW) 0.85 1.2 2.0 3.0 0.5 1.0 1.5 2.0 3.5 5.0 7.0
Rated torque(N.m) 8.12 11.5 19.1 28.6 2.39 4.78 7.16 9.55 16.7 23.9 33.4
Maximum torque(N.m) 24.4 34.4 57.3 85.9 7.16 14.4 21.6 28.5 50.1 71.6 100.0
Rated speed(r/min) 1000 1000 1000 1000 2000 2000 2000 2000 2000 2000 2000
Maximum speed(r/min) 1500 1200 1200 1200 3000 3000 3000 2500 2500 2000 2000
Rated current(A) 5.1 7.1 9.6 16 3.2 6 9 11 17 26 35
Maximum current(A) 15.3 21.3 28.8 48 9.6 18 27 33 51 84 105



Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder

Product Images

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoderSuper power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder

Packaging & Shipping

Packaging:

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder

Products are packaged with bubble wrap and cartons.

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder



Shipping:

Products will be shipped in 3 working days after payment.

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder



Product Applications

    Servo motor products are widely used in machine tools, textile machinery, knitting machinery, bank appliances, automatic door opener, sweeping machine, packaging machinery, educational instrument, Cementing machine, health care equipment, warehouse automation, industrial robots, conveyor belts, camera auto focus, robotic vehicle, solar tracking system, metal cutting & metal forming machines, antenna positioning, woodworking, CNC, textiles, printing presses, printers, ATM machine, sewing machine, machinery arm, precise measuring instrument, medical equipment, elevator and so on.

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder

Our Services

Profile:

    This is Hongjun Science and Technology Co., Ltd, one of the most professional motor suppliers in China. We’ve been specializing in this field for many years. Our main products include servo motor, servo motor driver, stepper motor, planetary gearbox, spindle motor, hub motor and etc.

    We’re keeping cooperation with many brands from different countries and areas, such as Germany, Japan, Taiwan, etc., so that we have a large amount of stable source of goods. We supply our customers not only various brands motors with high precision, high stability and flexible price, but also technology and great service. Nowadays, we’ve developed business relationship with many customers from all over the world.



Services:

1.  On receiving Inquiries or any other messages from customers, we'll reply in a very short time. We're on line for customers for a very long time every day;

2.  We supply our customer servo motors, servo drivers and other products from original famous brands, such as Panasonic, Mitsubishi, Delta, TECO, YASKAWA and etc.;

3.  After payment, we'll deliver motors with well and proper packaging after a short delivery lead time. We'll supply necessary technical advice if required;

4.  We promise to give all our customers perfect after-sales services.

Super power servo motor 7kw Mitsubishi HC-SF702 / HC-SF702K with encoder
