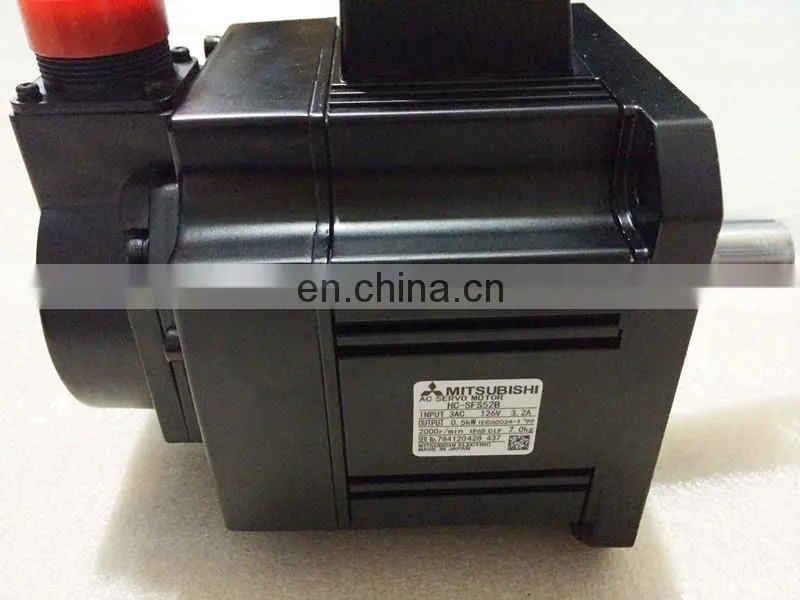

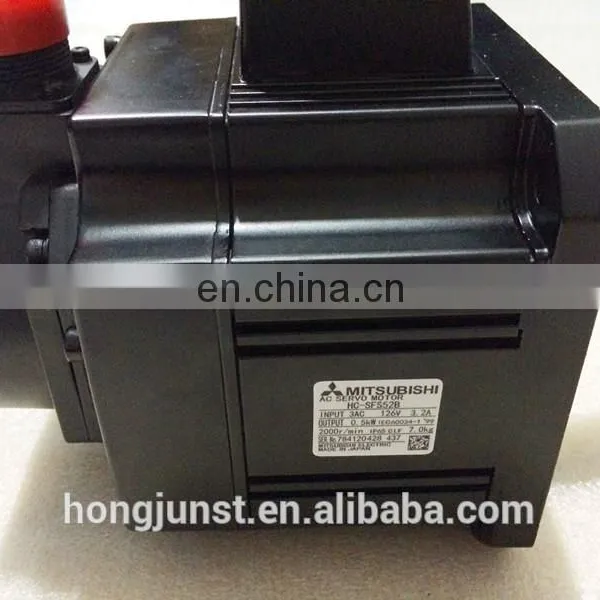

500W Mitsubishi ac Servo Motor HC-SFS52B With Brake

500W Mitsubishi ac Servo Motor HC-SFS52B With Brake thumbnail-1
500W Mitsubishi ac Servo Motor HC-SFS52B With Brake thumbnail-2
500W Mitsubishi ac Servo Motor HC-SFS52B With Brake photo-1
500W Mitsubishi ac Servo Motor HC-SFS52B With Brake photo-2
US$ 250 - 380 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-SFS52B
Contact Supplier Request Quote Chat Now
Sichuan Hongjun Science And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-SFS52B

500W Mitsubishi ac servo motor HC-SFS52B with brake

Product Description
Servo motor model HC-SF81 HC-SF121 HC-SF201 HC-SF301 HC-SF52 HC-SF102 HC-SF152 HC-SF202 HC-SF352 HC-SF502 HC-SF702
Rated power(KW) 0.85 1.2 2.0 3.0 0.5 1.0 1.5 2.0 3.5 5.0 7.0
Rated torque(N.m) 8.12 11.5 19.1 28.6 2.39 4.78 7.16 9.55 16.7 23.9 33.4
Maximum torque(N.m) 24.4 34.4 57.3 85.9 7.16 14.4 21.6 28.5 50.1 71.6 100.0
Rated speed(r/min) 1000 1000 1000 1000 2000 2000 2000 2000 2000 2000 2000
Maximum speed(r/min) 1500 1200 1200 1200 3000 3000 3000 2500 2500 2000 2000
Rated current(A) 5.1 7.1 9.6 16 3.2 6 9 11 17 26 35
Maximum current(A) 15.3 21.3 28.8 48 9.6 18 27 33 51 84 105



500W Mitsubishi ac servo motor HC-SFS52B with brake500W Mitsubishi ac servo motor HC-SFS52B with brake500W Mitsubishi ac servo motor HC-SFS52B with brake500W Mitsubishi ac servo motor HC-SFS52B with brake500W Mitsubishi ac servo motor HC-SFS52B with brake

Product Images

500W Mitsubishi ac servo motor HC-SFS52B with brake

Product Applications

    Servo motor products are widely used in machine tools, textile machinery, knitting machinery, bank appliances, automatic door opener, sweeping machine, packaging machinery, educational instrument, Cementing machine, health care equipment, warehouse automation, industrial robots, conveyor belts, camera auto focus, robotic vehicle, solar tracking system, metal cutting & metal forming machines, antenna positioning, woodworking, CNC, textiles, printing presses, printers, ATM machine, sewing machine, machinery arm, precise measuring instrument, medical equipment, elevator and so on.
