HONGJUN 10KW 180ST Encoder CNC Machine Servo Motor
US$ 355 - 376
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hongjun
Place of Origin:
Sichuan, China
Model Number:
180st-1
Payment & Shipping
Payment Methods:
Port of Shipment:
any China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.4kw 3000rpm Servo Motor Arduino and DriveUS$ 203 - 1,153MOQ: 1 Piece -
Delta Servo Motor for CNC Lathe Milling Graving MachineUS$ 202 - 1,239MOQ: 1 Piece
-
750w - 5.5kw Robot Arm Use Synchronous Servo MotorUS$ 149 - 341MOQ: 1 Piece
-
1.3KW SIGMA II SERIES Yaskawa Servo Motor SgmghUS$ 23 - 232MOQ: 1 Piece
-
HONGJUN Control Trainer 3kg Torqaue CNC Roter Servo Motor KitUS$ 254 - 325MOQ: 1 Piece
Brand Name
Hongjun
Place of Origin
Sichuan, China
Model Number
180st-1
Weight
43KG
Product Description
HONGJUN 10KW 180ST Encoder CNC machine Servo Motor
Servo systems can be used in CNC machining, factory automation, and robotics, among other uses. Their main advantage over traditional DC or AC motors is the addition of motor feedback. This feedback can be used to detect unwanted motion, or to ensure the accuracy of the commanded motion. The feedback is generally provided by an encoder of some sort. Servos, in constant speed changing use, have a better life cycle than typical AC wound motors. Servo motors can also act as a brake by shunting off generated electricity from the motor itself.

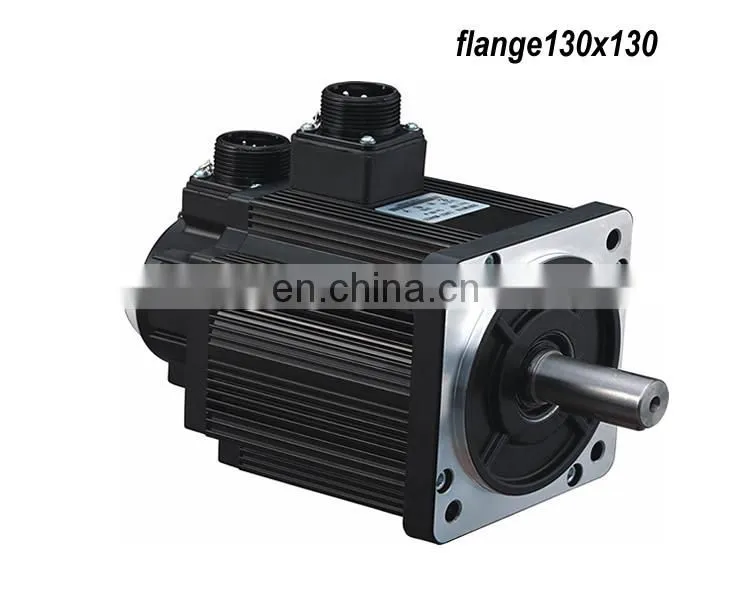

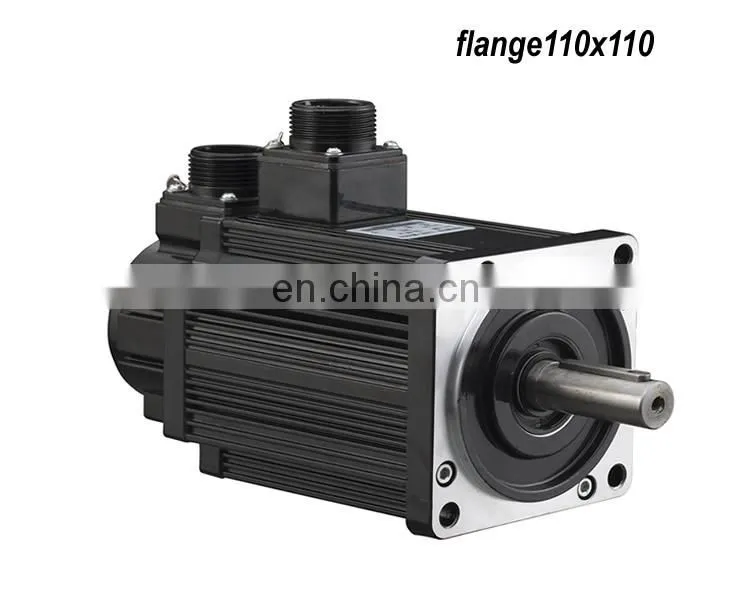

Our ac servo motor flange size from 40x40 to 130x130, power from 50W to 3.8Kw.
Main Specifications
| Motor model | 90ST-M02430 | 90ST-M03520 | 90ST-M04025 |
| Rated power(KW) | 0.75 | 0.73 | 1 |
| Rated volt(V) | 220 | 220 | 220 |
| Rated current(A) | 3 | 3 | 4 |
| Rated speed(rpm) | 3000 | 2000 | 2500 |
| Rated torque(N.m) | 2.4 | 3.5 | 4 |
| Peak torque(N.m) | 7.1 | 10.5 | 12 |
| Voltage constant(V/1000rpm) | 51 | 67 | 60 |
| Torque coefficient(N.m/A) | 0.8 | 1.2 | 1 |
| Rotor inertia(kg.m2) | 2.45x10-4 | 3.4x10-4 | 3.7x10-4 |
| Line-line resistance(Ω) | 3.2 | 4.06 | 2.69 |
| Line-line inductance(mH) | 7 | 9.7 | 6.21 |
| Electrical time constant(MS) | 2.2 | 2.39 | 2.3 |
| Weight(kg) | 3.4 | 3.8 | 4.13 |
| Encoder line number(PPR) | 2500 | ||
| Insulation class | Class B(1300C) | ||
| Safety class | IP64 | ||
| Operating of environment conditions | Temperature -20~+50oC Humidity: below 90%RH No dewing | ||

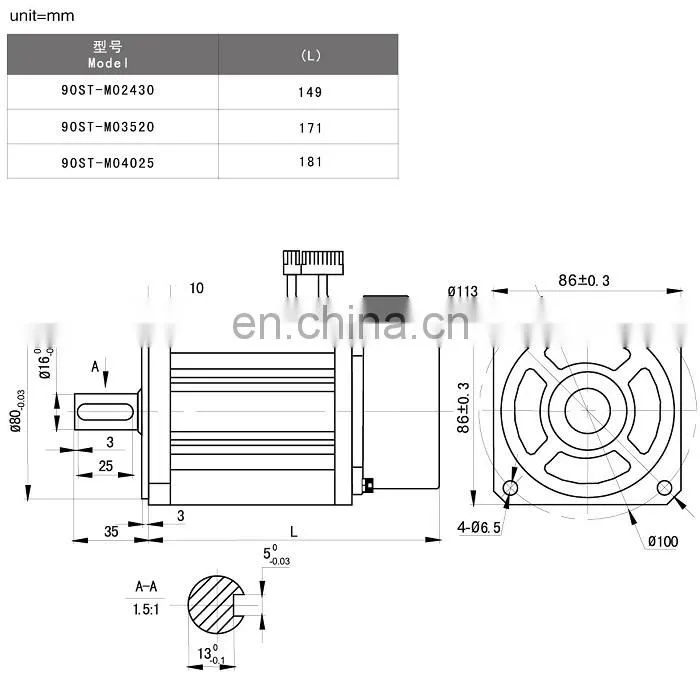

Servo motor dimensions

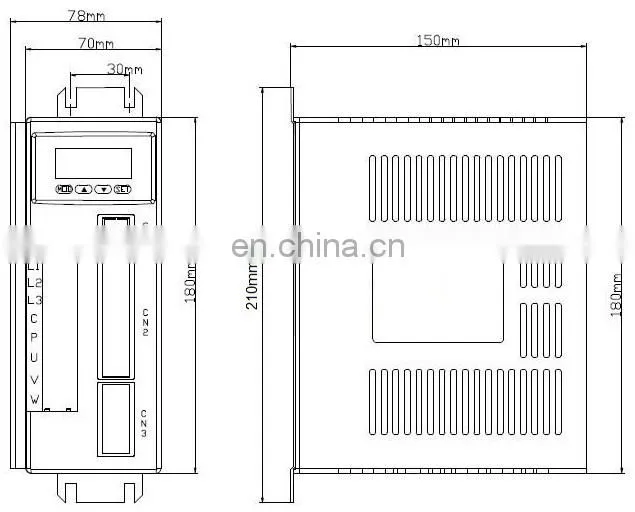

Servo drive dimensions

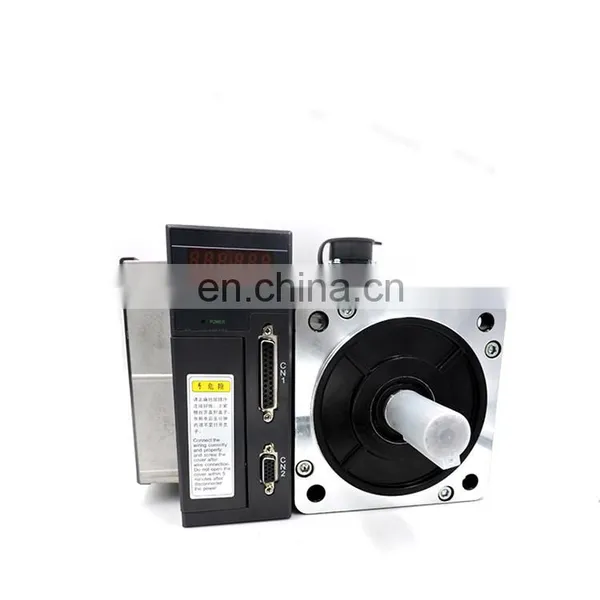

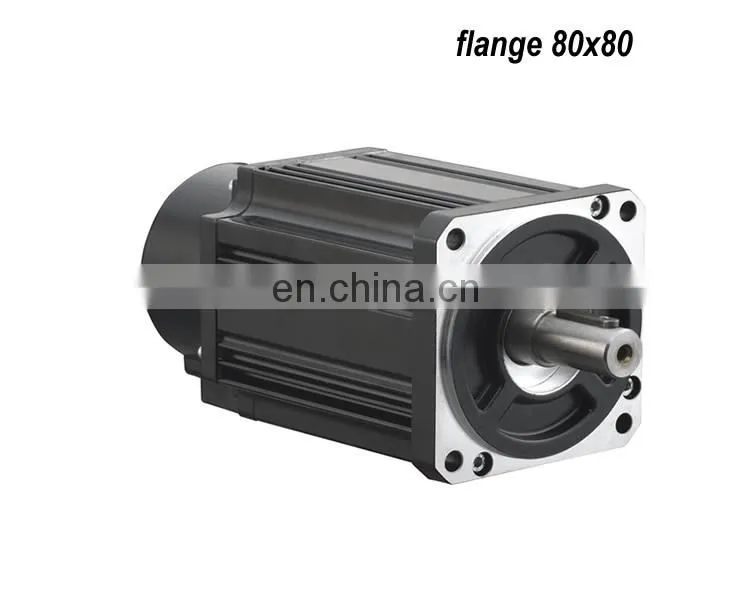

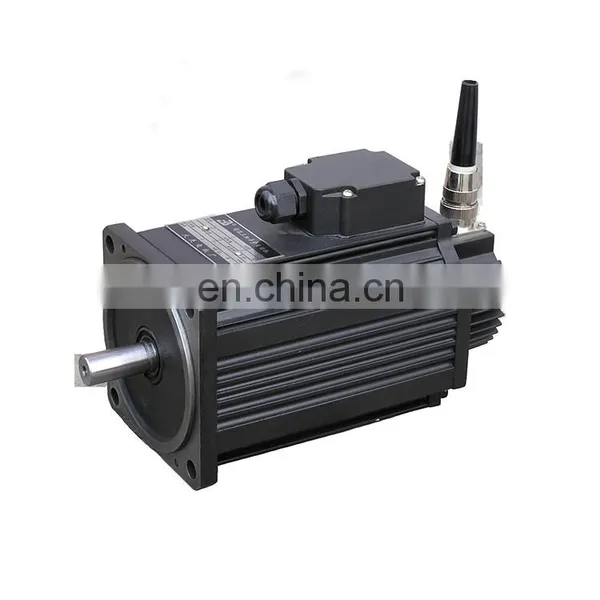

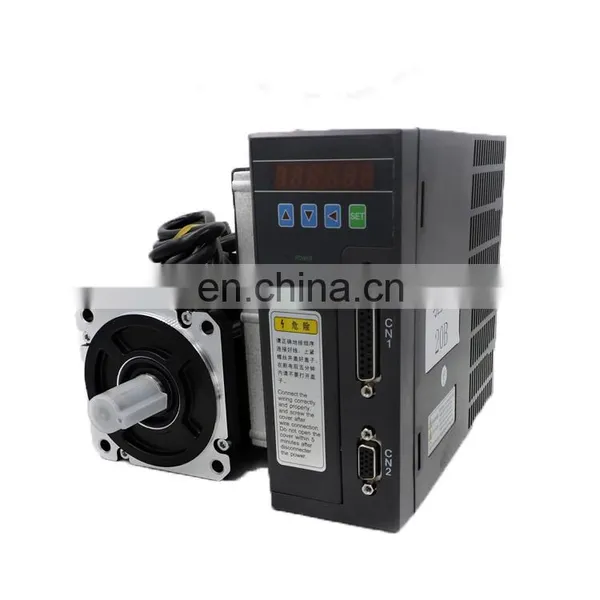

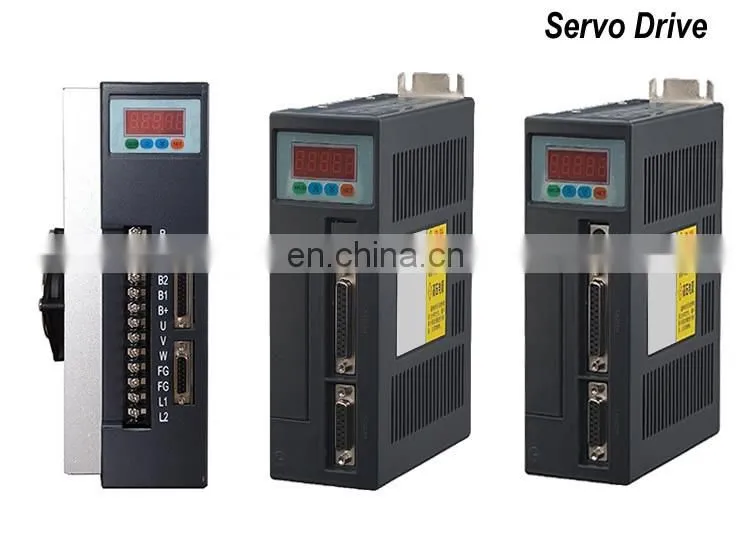

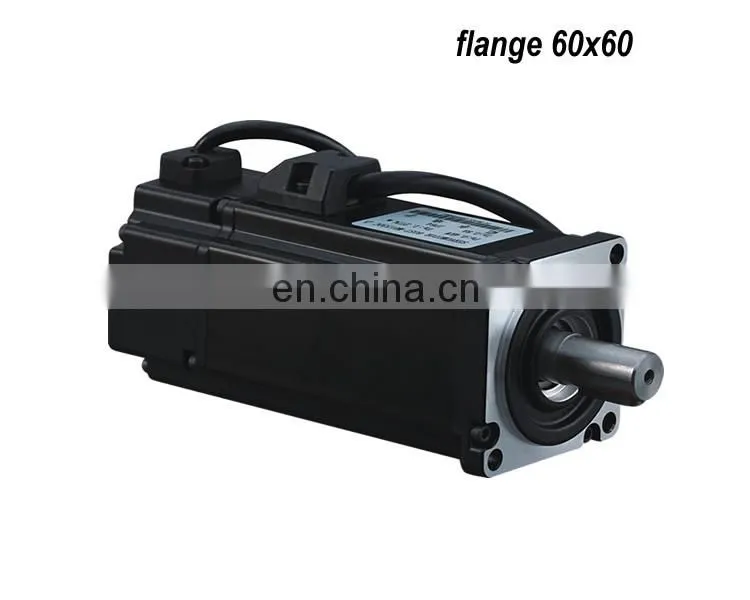

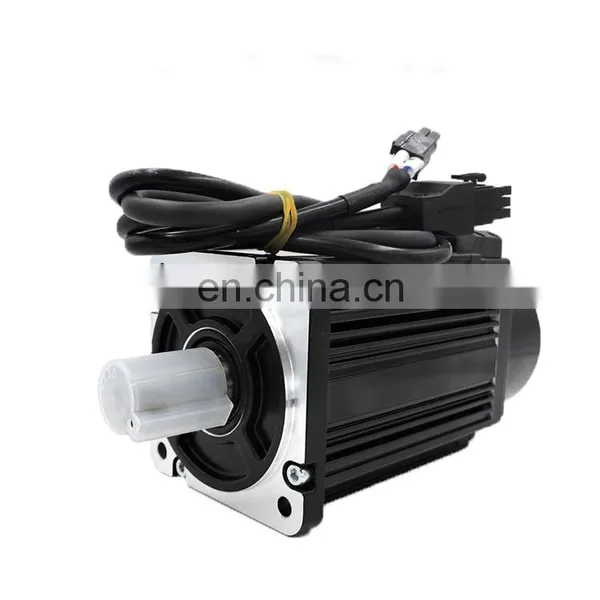

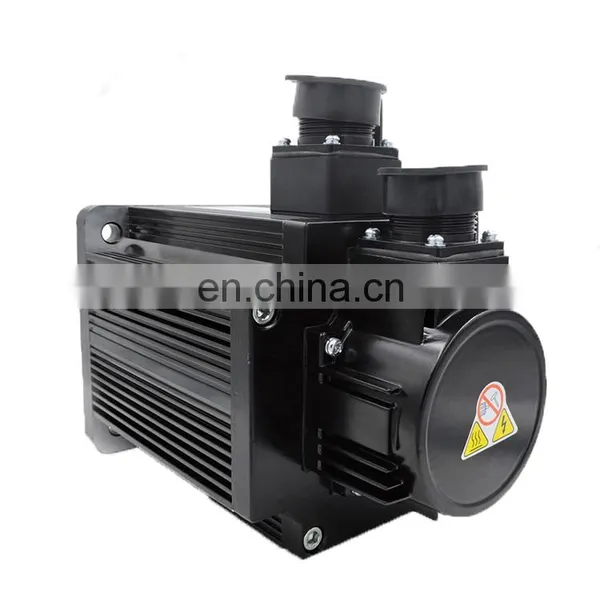

Products Photos
Company Information
- Who We are?
As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15years! There are 1000workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is 850000pcs in 2013!
- What We Do?
We provide not only products but also solutions for customers! Our main products include AC gear motor, DC gear motor, high precision planetary gearbox used for stepper motor and servo motor! Also we provide customize service according to our customers' requirement!
- How is Quality?
Manage workshop by 5S and all products are most strictly checked by several processes before leaving our factory! We have got certification of ISO9001, CCC, CE, UL, RoHS!
- What is the Application?
Our products are widely used in machine tools ( CNC lathes), textile machinery, knitting machinery, bank appliances, industrial assembly line (automatic door opener), cleaning equipment (sweeping machine), packaging machinery, pharmaceutical machinery, educational instrument, office equipment ( Cementing machine), medical devices, health care equipment, warehouse automation, industrial robots and so on.
- How About Overseas Market?
Our products have been exported worldwide and we have now 2000 customers in overseas market and set up office in Canada, Europe and Japan!
