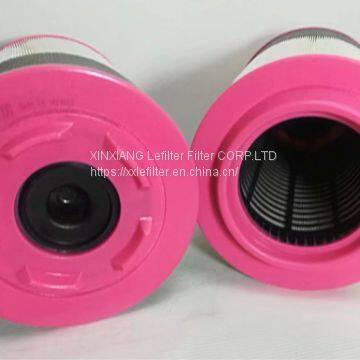

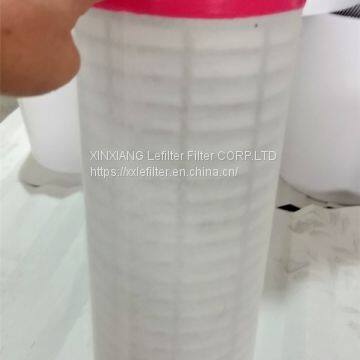

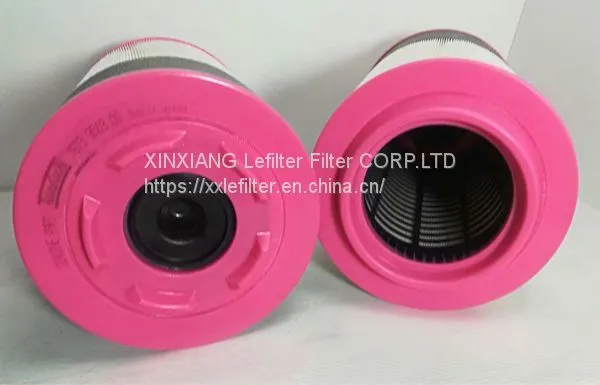

Atlas copco air filter 1094190240 1094190250

The working principle of Atlas filter:
The compressed air from the air compressor entrains large and small oil droplets. Large oil droplets are easily separated by the oil and gas separator, while small oil droplets (suspended oil particles) must be filtered through the micron glass fiber filter layer of the oil and gas separator. .

We use more advanced anti-corrosion and high-efficiency ultra-fine fiber agglomerated materials as the main filter. The filter bed of the system filter element is composed of pre-filter layer, ultra-fine fiber layer, support layer, filter layer and gravity sedimentation layer to make the compressor output air The solid particles above 3μm in the middle can be filtered out, and the very small oil-water vapor dissolution of about 0.01-1μm is condensed into larger oil droplets when passing through the filter element, and accumulates at the bottom of the filter element, and then passes through the recess at the bottom of the filter element. The oil return pipe siphons and returns to the lubrication system so that the compressor discharges more pure, oil-free compressed air.

Atlas filter technical parameters:
1. Filtration accuracy: 0.1µm
2. Filtration efficiency 99.999%
3. The oil content of compressed air can reach below 3ppm
4. The service life can reach about 3500~5200h
5. Initial pressure difference: <=0.02MPa
6. The filter material is made of American HV (Binzer) and American Lydall company glass fiber

Atlas filter test standard:
Strictly follow the filter element--
Crack resistance test
Structural integrity testing
Material and liquid compatibility test
Hydraulic flow characteristic detection

The other model of Atlas  filter:

1619126900      1613872000      1613740700      1613740800

2901043100      1613950100      1613800400      1619279800

290100500       1030097900      2906009200      1621054799

1627009499      1621054600      1030107000      1621057400

1030107000      1613900100      1622065800      1619279800

1503019000      1503018900      1619279900      2900059300

1619279700      1619284700      2914502300      2914502400

2914501700      2914501800      1619279900      2914931000

1619532700      2914802100      1619554500      2914930200

2914930600

3222188141      3222185017      3222185051      3222185077

3222185093      3222185101      3222185107      3222185111

3222185137      3222185143      3222185147      3222185149

3222185221      3222185227      3222185257      3222185279

3222185303      3222185383      3222185429      3222185489

3222185497      3222185501      3222185503      3222185537

3222185543      3222185557      3222185569      3222185581

3222185587      3222185591      3222185609      3222185633

3222185653      3222185657      3222185671      3222185677

Factory shot:

Packing&Shipping

FAQ
1.Are you a trading company or manufacturer?
A:Manufacturer with factory.
2.Do you Accept OEM service?
A:Yes! we can manufacture according to your requirement.
3.What´s your Delivery Time?
A:Normally within 1-7 working days after order confirmation.
4.How do you pack products?
A:Normally,plastic bag inside and carton outside .We´ll do according to customers´ requirement.
5.: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
