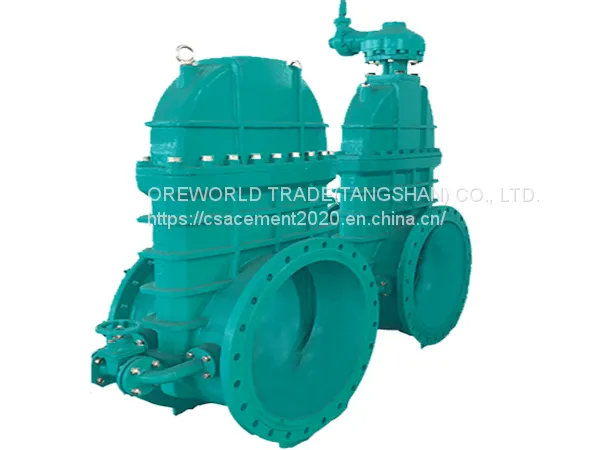

Big Size Resilient Gate Valve

Name: Big Size Resilient Gate Valve
Brand: csacement
SKU: 165621645
Availability: InStock

Big Size Resilient Gate Valve thumbnail-1

US$ 1 - 100 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Brand Name:

csacement

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Oreworld Trade(tangshan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

2 days

Product Details
Company Profile
Contact Us

Brand Name csacement

Place of Origin China

Basic information of Big Size Resilient Gate Valve

This valve is used in the pipeline as a cut-off valve. Dof960 series of cases

Features of Big Size Resilient Gate Valve

1. High-quality EPDM brake rubber provides good sealing performance;
2. The bronze brake nut is not easy to damage even if the switch torque is too high;
3. Light switch torque, easy to operate;
4. The shell material is guaranteed, safe and reliable.

Principle of Big Size Resilient Gate Valve

The big size resilient gate valve is equipped with a turbine head due to excessive torque, which drives the rotary stem through the turbine. The stem drives the brake plate nut upward to open the valve.

Installation and Commissioning of Big Size Resilient Gate Valve

Electric actuators are available for more convenient operation of valves. For specific use, please consult ZECO Valve Group.

Part	Material	Standard
Body	Ductile Iron	EN 1563/DIN 1693
Bonnet	Ductile Iron	EN 1563/DIN 1693
Stem	Stainless Steel 431	EN10088-1/ASTM A959
Wedge	Ductile Iron + EPDM / NBR	EN 1563/ISO 4633
Nut	C83600	ASTN B505
Box	Ductile Iron	EN 1563/DIN 1693
For the materials options not listed, consult factory. ZECO manufactures valves in more than 50 different alloys.

Product scope, Standards & Materials of Big Size Resilient Gate Valve

Size Range: 20"~32"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
