MIA Ventilation Wall-mounted Erv Series AHE/BGL

FOB Price

US$ 280 - 365 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Model Number	MIA-AHE/BGL
Certification	CE, ROHS, SASO	Voltage (V)	220
Installation	Other, Floor Standing

Product Description

Overview

Quick Details

Warranty:
More than 5 years

After-sale Service:
Online technical support, Free spare parts

Project Solution Capability:
graphic design

Application:
Apartment

Design Style:
Minimalist

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-AHE/BGL

Color:
white

Voltage:
AC 220~240V 50Hz

Power supply:
48W

Airflow:
180m3/h

Heat Recovery Efficiency:
92.5%~94%

Noise (SPL@1m):
16~22dB(A)

External Dimensions L*W*H:
506.3x196.5x702.1mm

Tuyere Diameter:
100mm

Weight:
21kg

Type:
Wall mounted ERV

Supply Ability

Supply Ability:
1000 Set/Sets per Month

Packaging & Delivery

Packaging Details
Standard Export Package

Port
Shanghai Port

Picture Example:

Lead Time :
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 10 15 20 To be negotiated

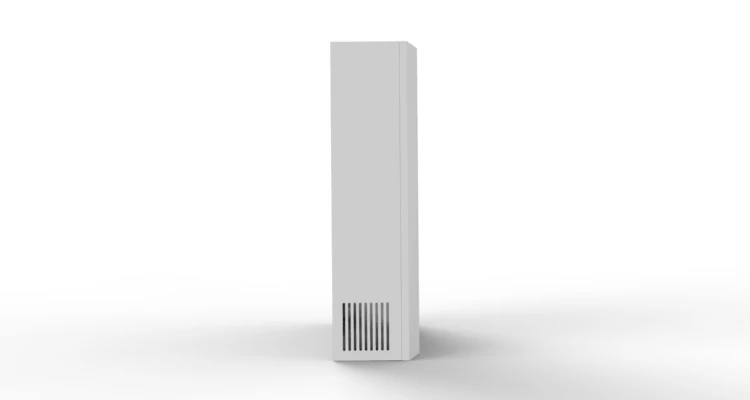

Detailed Images

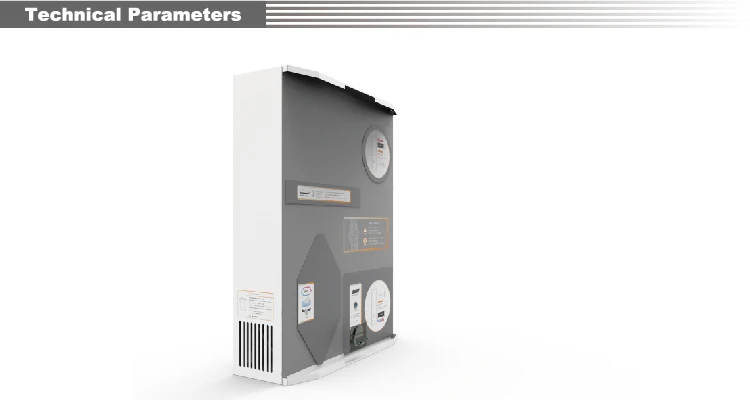

Technical Parameters

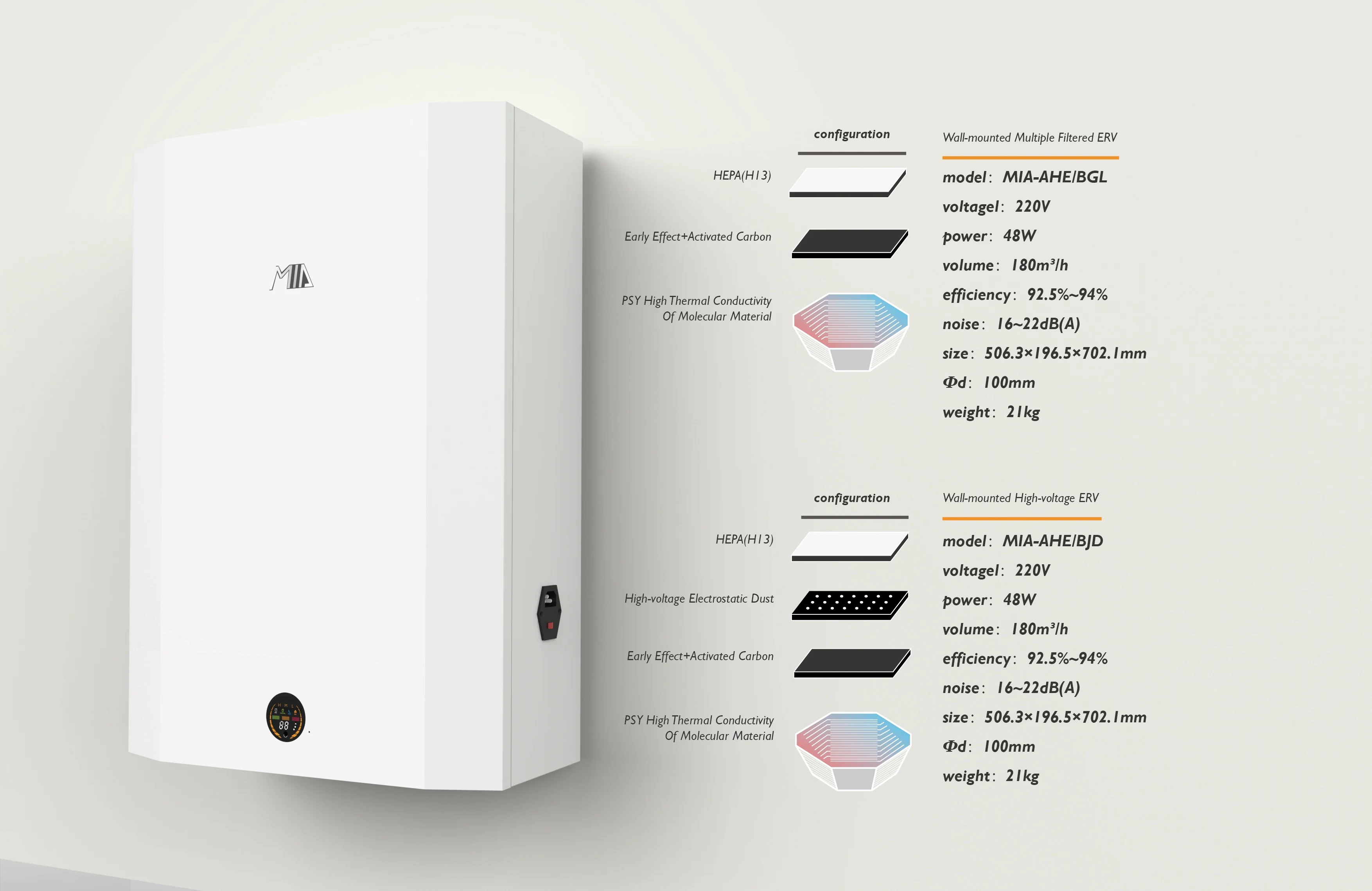

180 Volume Residential Wall Mounted HRV/ERV Heat Recovery Exchanger Ventilation System MIA-AHE/BGL

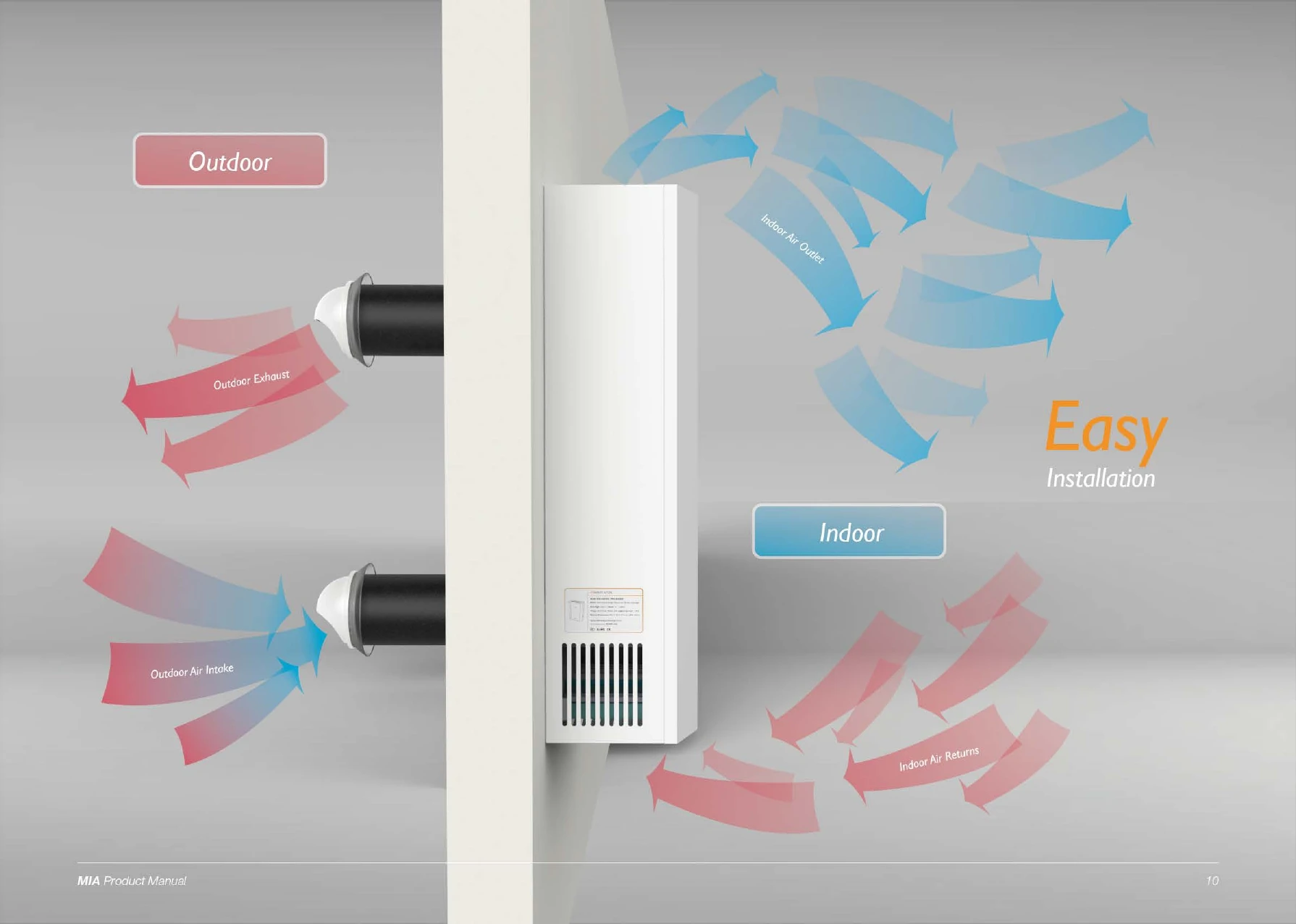

The wall-mounted fresh air ventilation system is equipped with a low-noise fan for quiet operation; The energy recovery core made of special material can exchange temperature and penetrate water molecules. The washable material make it will be used without consumables, so as to achieve the purpose of health, energy saving, ventilation, environmental protection and load reduction for air conditioning.

Model	MIA-AHE/BGL
Voltage	AC 220~240 V 50Hz
Power	48 W
Airflow (Maximum)	180 m³/h
Heat Recovery Efficiency	92.5%~94%
Noise (SPL@1m)	16~22 dB(A)

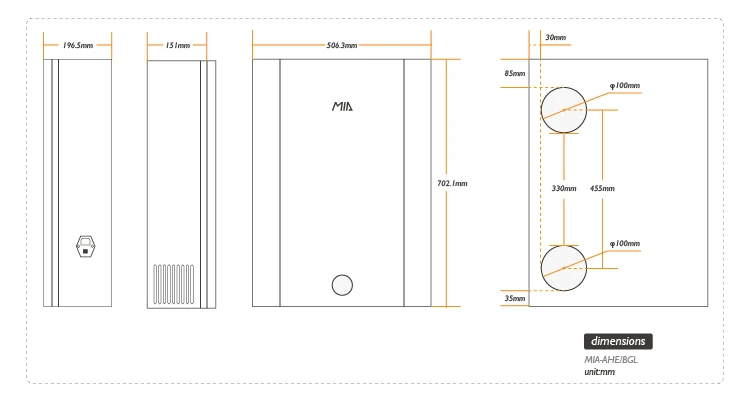

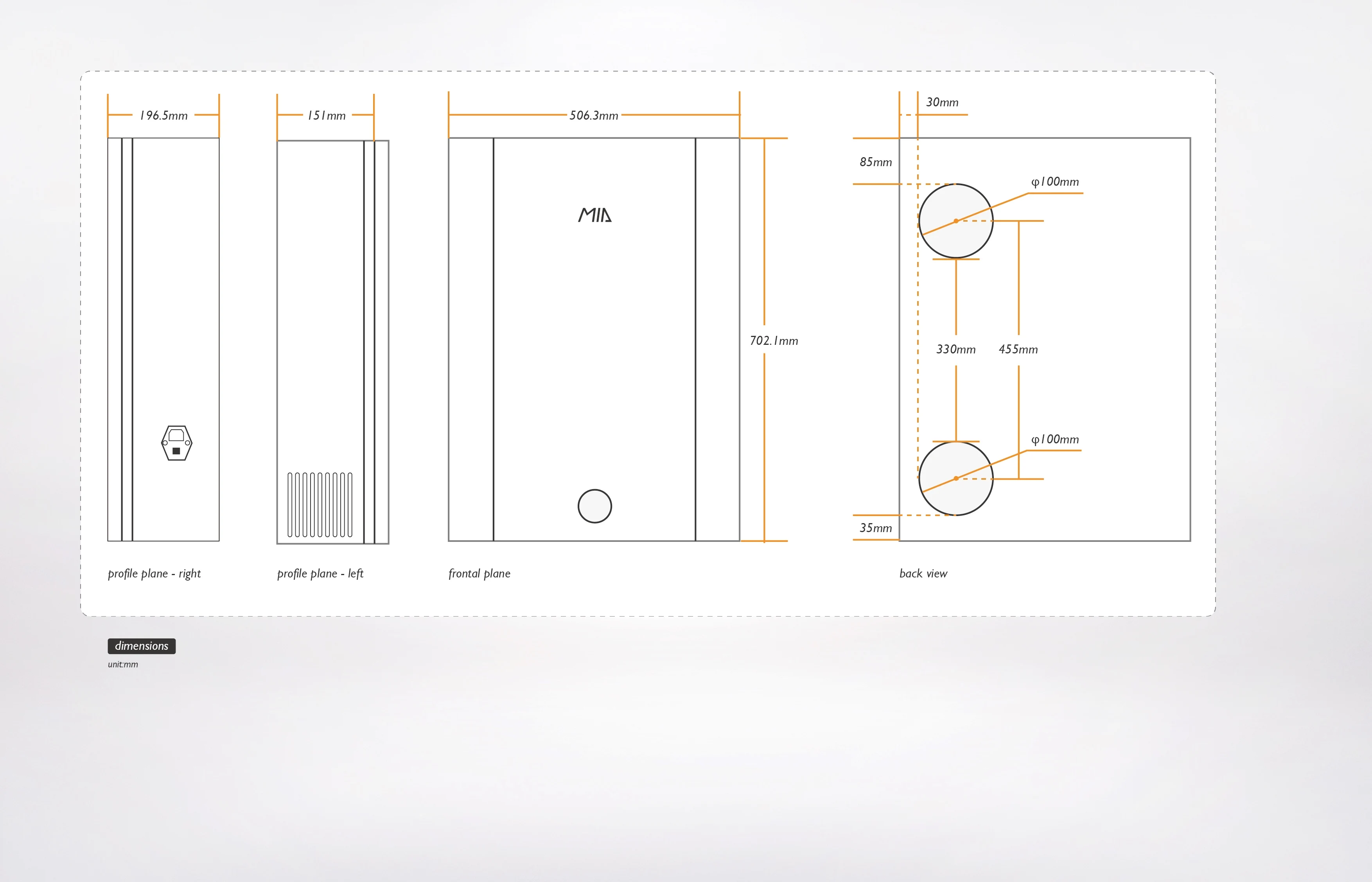

External Dimensions LWH	506.3 x 196.5 x 702.1 mm
Tuyere Diameter	100 mm
Weight	21 kg

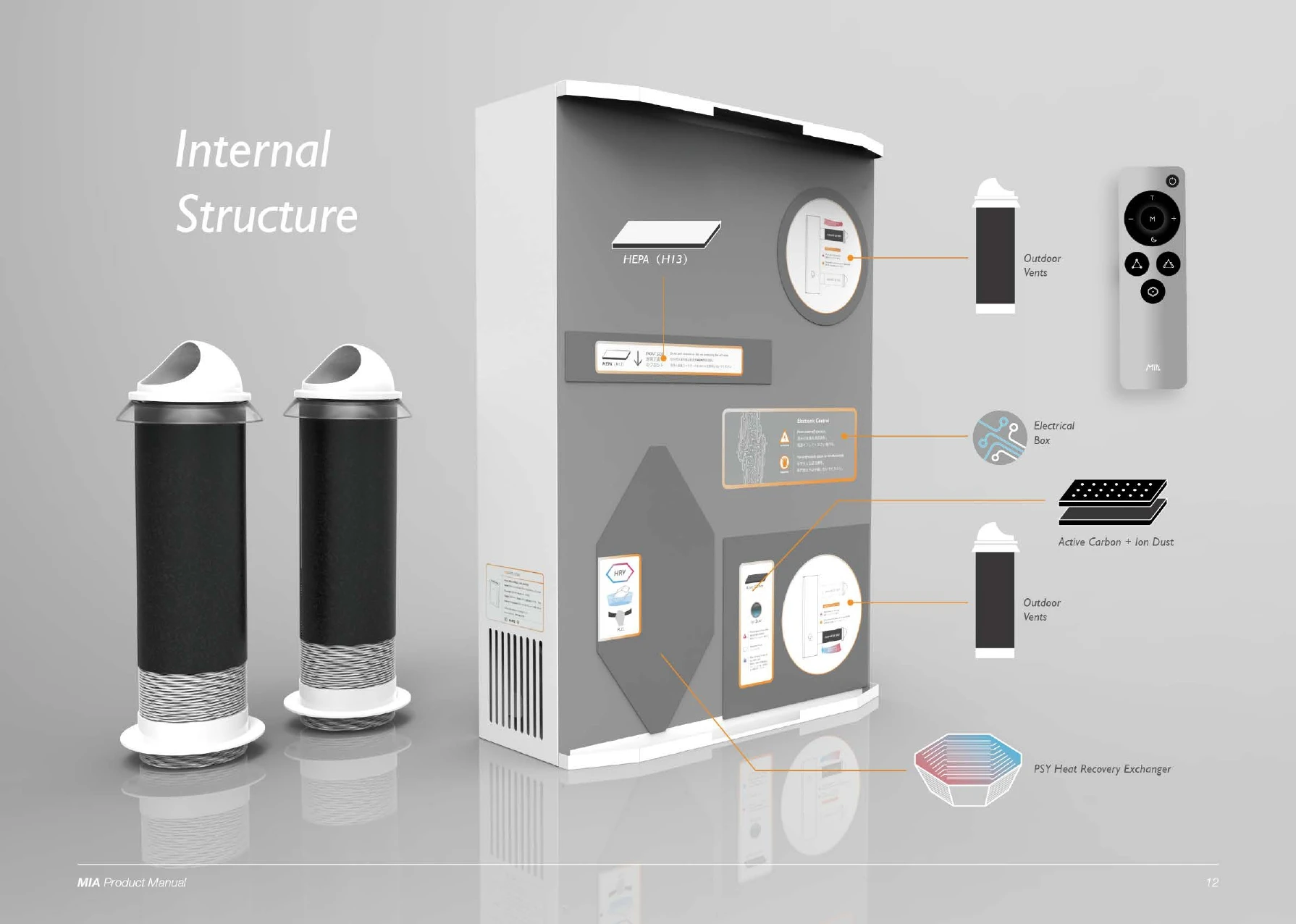

Inside Setting

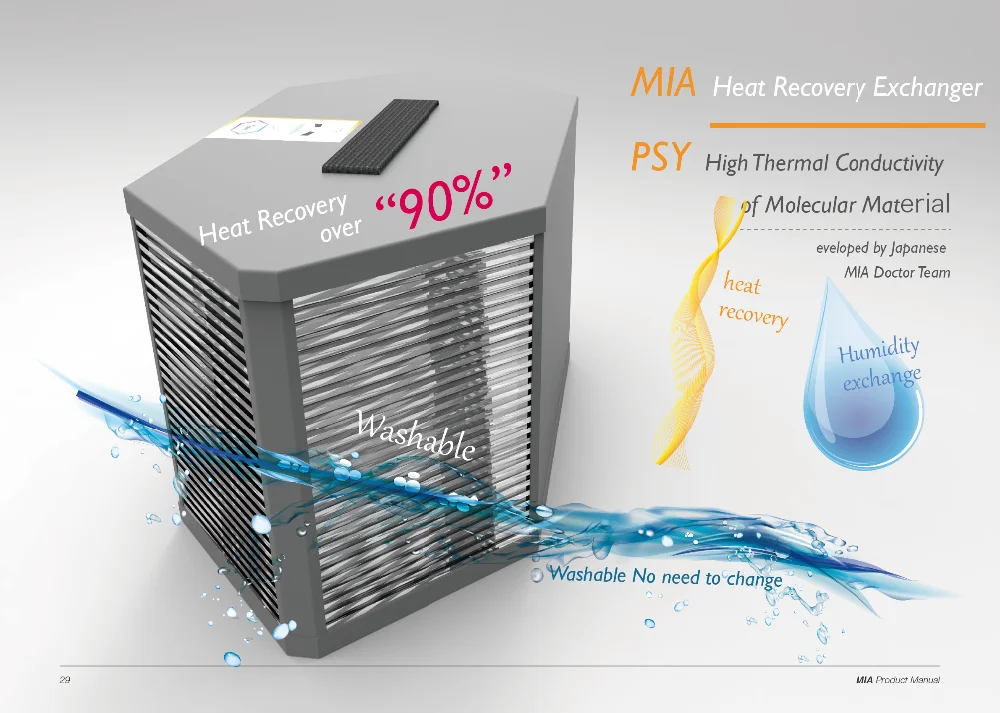

Energy Recovery Exchange Core

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat energy efficiency. It also
can infiltrate molecule when exchangeing heat energy, in order to prevent bacteria and mold growth with the washable maerial.

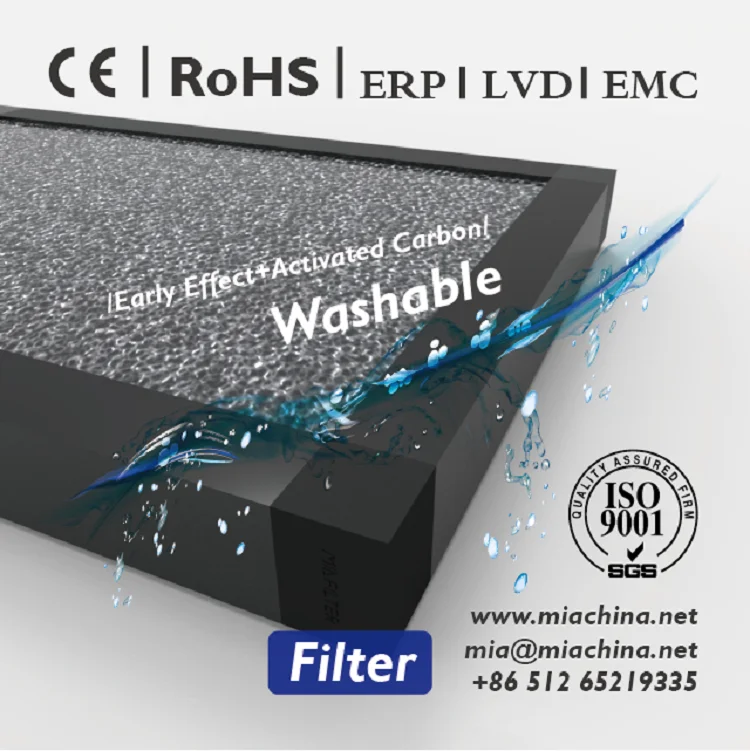

Early Effect + Activated Carbon Filter

 The filter with composite fiber, sprayed
with activated carbon powder, can ilter dust particle efficiency and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.

High Efficiency H13 Hepa Filter

The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

Product Ranges

Our Company

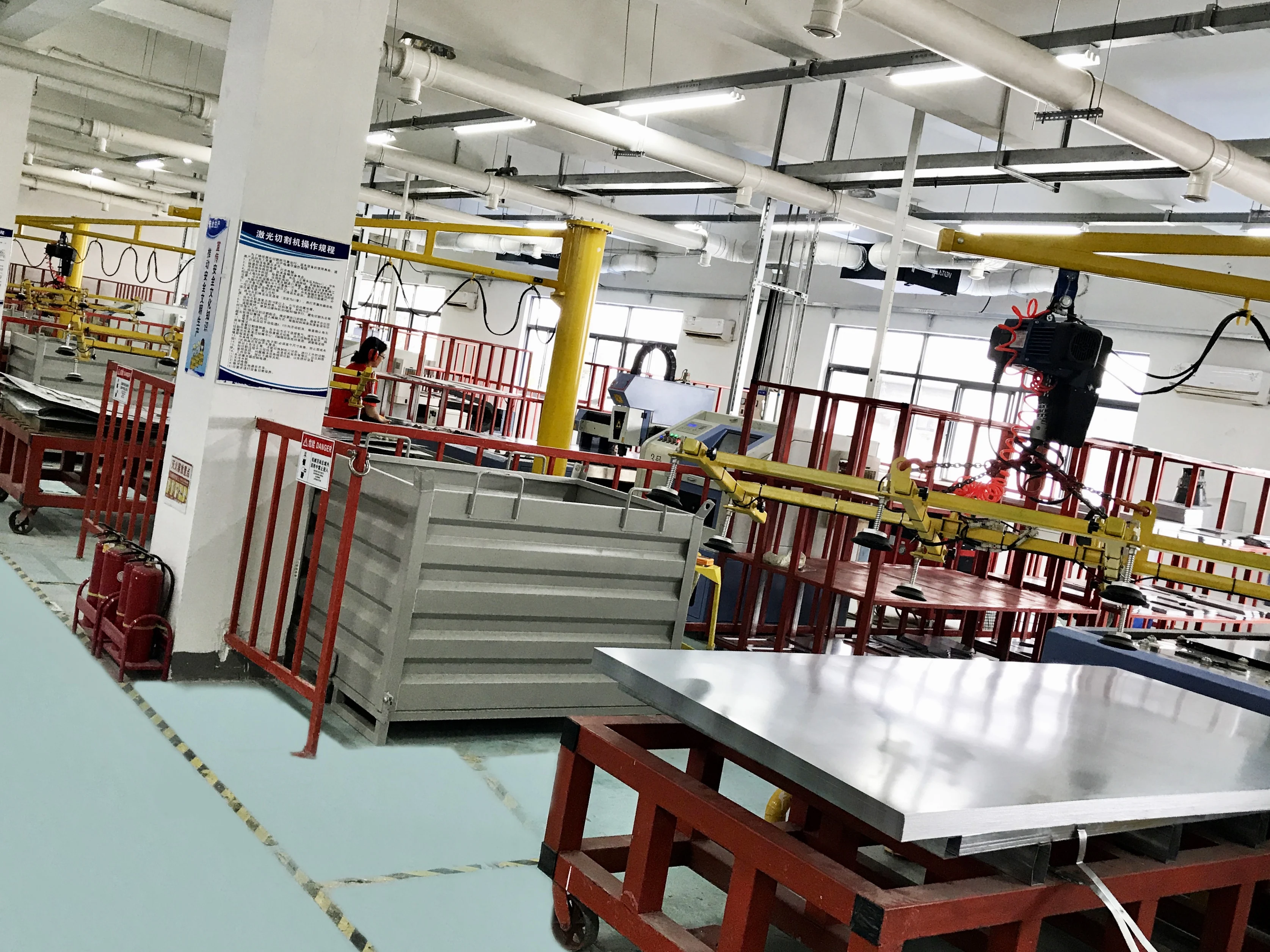

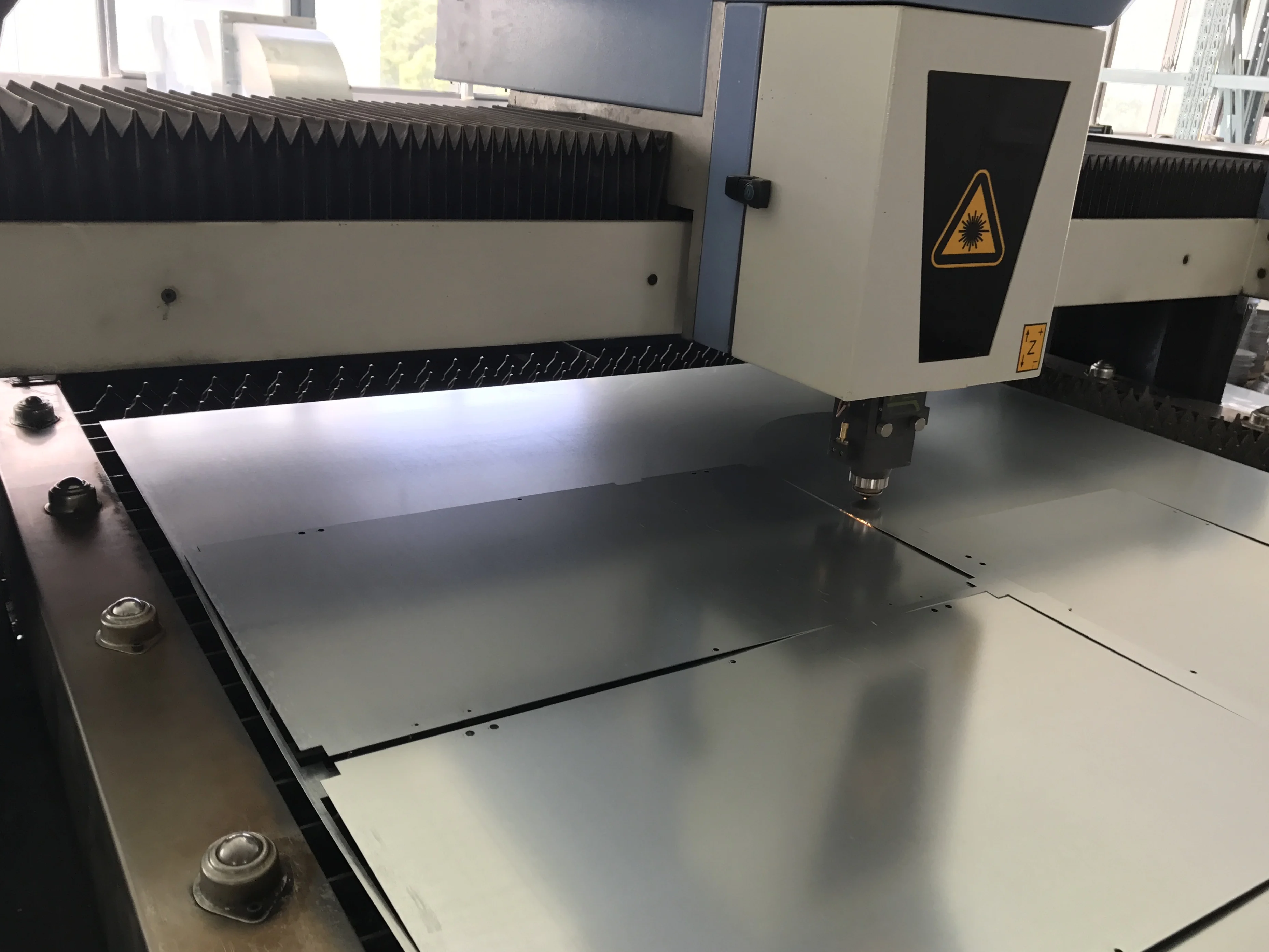

[ Factory look ]

[ Office look ]

Packing & Delivery
