Home > Products > Construction & Real Estate > Ductless Air Recuperator HVAC HRV ERV wall mounted plate Heat Exchanger

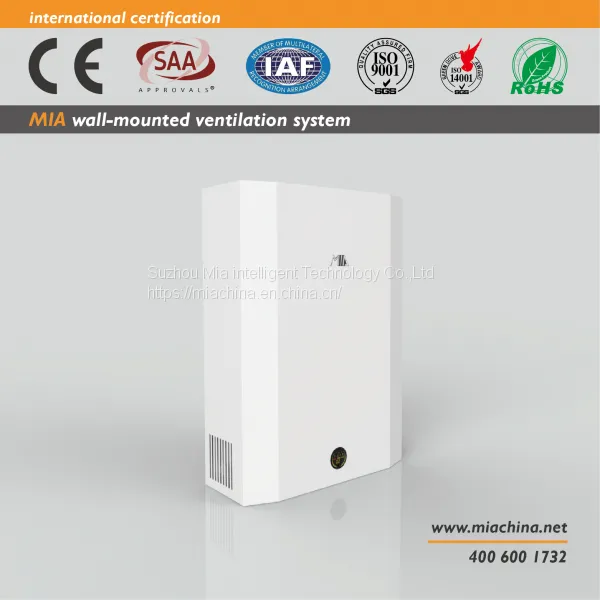

Ductless Air Recuperator HVAC HRV ERV wall mounted plate Heat Exchanger

FOB Price

USD $450 - $451 / Set

1 Set(Min.Order)

Supply Ability 9999 Set / Sets per Month
Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Model Number	MIA-AHE/BJD
Certification	CE, ROHS, SASO	Voltage (V)	220
Installation	Other, Floor Standing

Product Description

Overview

Quick Details

Warranty:
More than 5 years, 10 Years

After-sale Service:
Online technical support, Free spare parts

Project Solution Capability:
Others

Application:
Hotel

Design Style:
Contemporary

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-AHE/BJD

Airflow:
180CMH

Voltage:
220V

Noise:Efficiency:
92.5%~94%

16~22dB(A)

Size (L*W*H):
506.3*196.5*702.1mm

Hole Diameter:
100mm

Net Weight:
21kg

Certificates:
CE, RoHS, ErP, ISO, SAA, 3C, etc

Supply Ability

Supply Ability:
10000 Set/Sets per Month

Packaging & Delivery

Packaging Details
Packaging Details Carton package with wooden box for safe export
1. Selling units: Single item
2. Single package size: 550*240*1035mm
3. Single gross weight: 45kg
4. Picture Example:

Port
Shanghai Port

Picture Example:

Lead Time :
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 7 15 To be negotiated

Product Description

Technical Parameters
Model	MIA-AHE/BJD
Air Volume	180m³/h
Voltage	220V
Power	48W
Efficiency	92.5%~94%
Noise	16~22dB(A)
Size (LWH)	506.3196.5702.1mm
Φd	100mm
Net Weight	21kg
Motor	AC inner rotor motor

Brand Name:	MIA	Warranty:	10 years
Place of Origin:	Suzhou, China	Certification:	CE, ErP, RoHS, SAA, ISO, CCC
Type:	Energy Recovery Ventilator	Application:	Residential, Office Room, etc
Heat exchanger core:	Cross counterflow heat exchanger (Washable core)	Installation:	Wall-mounted
Function:	Heat recovery fresh air handling unit Exchange heat and humidity	After-sales Service:	Overseas service center available
Filter Class:	Early effect activated carbon + HEPA(H13) filter + High-voltage electrostatic dust filter

Model	Filter Class
MIA-AHE/BGL	Early effect activated carbon + HEPA(H13) filter
MIA-AHE/BJD	Early effect activated carbon + HEPA(H13) filter + High-voltage electrostatic dust filter

Wall-mounted Energy Recovery Ventilation 180cmh

"0" PM2.5 Extremely Pure AirEuropean standard H13 high efficency ≥ 99.97%
Washable Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high energy recovery efficiency. It can exchange both temperature and humidity.
Ultra-quiet and energy-saving
MIA ventilation equipment: small power, large air flow, super silent. Originated from 1983s, MIA ventilation equipment have entered the market over 30 years.

MIA Energy Recovery Exchanger & Air Purification System

Washable PSY energy recovery exchanger

The high thermal conductivity of molecular material, developed by Japanese DR team, efficiency up to 90%. It can infiltrate water molecules in the process of heat exchange. With the washable material, it also can avoid the problem of bacteria and molds production.

The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle effiently and the wind resistance is very small. The even-distributed activated carbon. This washable can be used repeatedly, and two in one way, greatly reduces the total cost of consumables.

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imparted sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

With pin type electric discharge way, the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It's thickness in only 4cm, can de suitable for all kinds of models. The removel rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infrction. It's washable, also can be cleaned with brush, and will not increase the using cost.

Energy Recovery Exchanger Principle
