Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine

Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine thumbnail-1
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine thumbnail-2
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine thumbnail-3
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine thumbnail-4
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine photo-1
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine photo-2
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine photo-3
Does Carbon Fiber Tubes Can be Make Screw Threads Directly-- Carbon Tubing With Anodized Aluminum Combine photo-4
US$ 15 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
XN
Place of Origin:
China
Model Number:
3K twill/3K plain carbon fiber tube
Contact Supplier Request Quote Chat Now
Zibo Xinnuo International Trading Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XN
Place of Origin China
Model Number 3K twill/3K plain carbon fiber tube
Shape Carbon Fiber Tube
Application Other, Sports,window cleaning,R/C Model, Industrial
Dimensions 24*22mm
Working Temperature -50~+120 degree
Ash Content (%) 0.0001
H Content (%) 0.0001
N Content (%) 0.0004
S Content (%) 0.0004
C Content (%) 93
Product Type Carbon Fiber

Does carbon fiber tubes can be make screw threads directly?


Carbon fiber is popular because of its light weight and high strength. Human like screw threads on carbon fiber tube to connect metal, because it is easy to disassemble.


So Does it Ok to make screw threads on carbon fiber tubes? Our answer is this - yes, but not recommended. Why? Because the carbon fiber tube is made of carbon fiber layer by layer. If the make screw threads, the structure of this layer will be destroyed. The screw thread part will be broken in the process of disassembly for many times. So it reduce the carbon fiber tube's strength.


So how to process the screw thread? It's very simple. Make a metal screw thread first. Then glue metal screw thread and carbon fiber tube together, which not only ensures easy disassembly, but also ensures the strength of carbon fiber.

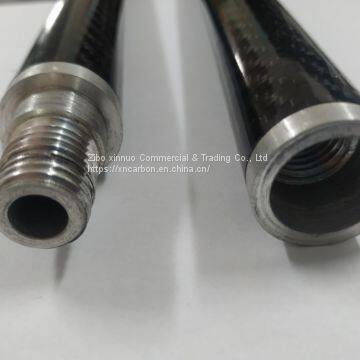

Look at the picture below. The combination of our metal screw thread and carbon fiber tube -- high end atmosphere, high grade, low profile, luxury and connotation. The size can be customized,Welcome to contact us for details!



Name Carbon fiber tube size Carbon fiber tube surface Screw Thread details Easy to disassemble  Advantage
Screw thread+ carbon fiber tube 25mmOD*17mm ID 3K twill weave/3K plain weave

Anodized aluminum alloy screw thread

 Yes

light weight;

high strength; corrosion resistant; Long service life







Product Tags: carbon fiber tubes , carbon tubing , carbon tubing with anodized aluminum combine , carbon fiber tubes screw threads , carbon fiber tube aluminum joints , screw threads on carbon fiber tube
