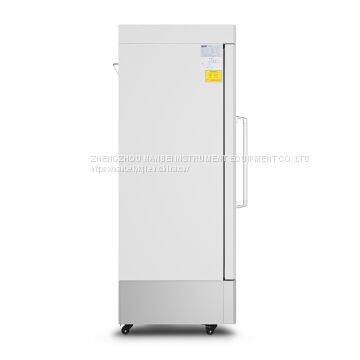

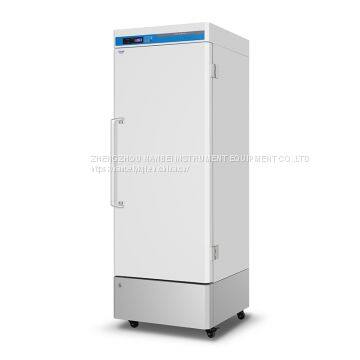

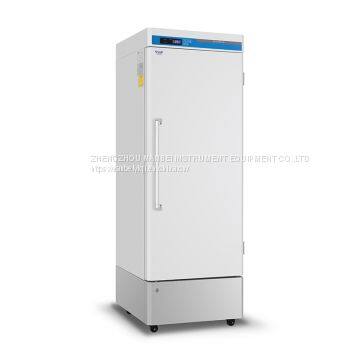

YC-360 Explosion proof Medical refrigerator 2℃~8℃

Usage:

It is used to store chemical reagents, experimental reagents, etc., which are flammable, explosive, easy to evaporate, easy to corrode, etc., and is suitable for experimental sites in various laboratories and research institutes of universities.

Feature

1. Box material: high-quality structural steel plate, advanced anti-corrosion phosphating and spraying process.

2. Liner material: SUS304 stainless steel plate, anti-corrosion, long service life, easy to clean.

3.The 5-layer pullable shelf can be adjusted according to the needs of the height position and quantity of the shelf. The shelf stop design prevents the shelf from accidentally pulling out and falling.

4. Two large space stop drawers at the bottom of the box to meet the needs of large volume items.

5. Foamed door body, the door body is equipped with a metal handle, which feels comfortable.

6. New appearance, new color matching, ergonomic layout of the whole machine, easy to use and operate.

7. Compressor: It adopts brand-name high-efficiency compressor and EBM international brand fan motor, which is energy-efficient, quiet and quiet.

8. There are 4 universal wheels at the bottom (two of them have self-locking function), which is convenient to move and stable.

9. The fan inside the box circulates and cooperates with the circulation inside the air duct to ensure the temperature performance inside the box.

10. Two anti-collision plates are placed on the back to provide enough space for the fan fan heat.

11. The cabinet is equipped with locks to prevent random opening and to ensure the safety of stored items.

12. High-precision microcomputer temperature control system with built-in PT100 sensor with safety barrier to ensure safe and stable operation.

13. High-brightness digital display, softer visual, by setting the temperature to keep the temperature inside the box within 2-8 °C, the display accuracy is 0.1 °C.

14. Perfect sound and light alarm function: It has many functions such as high temperature, low temperature, sensor alarm, high and low temperature overrange alarm.

15. Comprehensive anti-static technology, the shell and the inner lining, the door shell and the door lining are all connected by copper strands, and the moving parts in the storage space are made of metal.

16. The whole machine is explosion-proof, and the electronic control components are three types: explosion-proof type (fan, control board), intrinsically safe type (display panel) and encapsulation type (compressor).

17. With the chip condenser, the heat dissipation performance is stable, which greatly reduces the influence of dust and the like on heat dissipation.

18. China's national explosion-proof certification, explosion-proof grade: Ex d (ib) mb IIB T4, can be used in Zone 1, Zone 2.

Technical data
