Fractional RF & Thermal RF 2 in 1 device face/body tightening /acne scars treatment GSD Dermatrix Pro
Description:
Dermatrix Pro, an upgraded platform combines fractional RF, bi-polar RF and multi-polar RF technology to offer a complete new solution for anti-aging.
RF delivers heat energy deeply into the subcutaneous layers to regenerate collagen, restore skin firmness and improve skin texture. Fractional RF and thermal RF can be used as a combination treatment or separately, producing a maximum effect for different indications on face and body.
Application
Experts Commend
Fractional RF
Technology Explanation

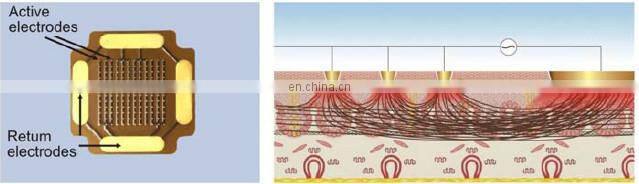

Fractional RF delivers accurate RF energy to the skin by a tip built of an array of small pins and return electrodes to create Microscopic Thermal Zones (MTZ). RF energy introduces fractional heat into the deep dermis and create potential healing effects in the microscopic thermal zones. Undamaged tissue between the electrode pins acted as a “healing server” to accelerate the collagen rebuilding and skin tissues remodeling.
Advantages
1.Maximum dermal effect, minimum epidermis disruption.
Unlike the traditional laser therapy, the majority of the fractional RF energy is focused in the dermis while only a small percentage of the surface is effected, resulting in deep volumetric dermal heating. On the contrary, laser stays large volume on the surface, while only a small amount of energy penetrates deep into the dermis.
2.Adjustable penetration depth, even energy distribution.
Four different treatment programmes(M1 M2 M3 M4)are for different penetration depth according to individual treatment requirement. No disruption to the surrounding tissues. Carefully selected energy level provides precise RF energy on exact layer with even distribution.
3.Optional tip size, disposable tip design to avoid cross infection.

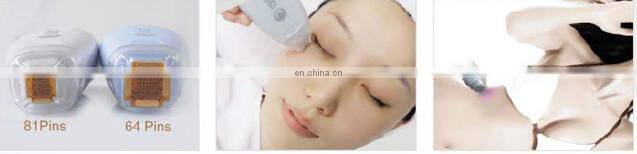

Two optional tip types, 64 pin is applied for the underlying tissues of face and big area, while 81 pin is for the small and sensitive area. Disposable tip is designed for individual patient to avoid cross infection.
4.Low complication risk, minimum downtime and no side effects.
Suitable for all skin type. Low chance of pigmentation if compared with laser treatments. Minimum downtime and cosmetics are available after treatment. Disturbance on daily life is minimal. No side effects.
Thermal RF
Technology Explanation
When the bi-polar RF and multi-polar energy penetrates into dermis, the energy is transferred into thermal
heat. The inner temperature of the tissue increase, then the heated collagen fibers shrink immediately and stimulate to accelerate the collagen regeneration over a long term, with the results of wrinkle reduction, skin tightening and lifting.
Advantages
1.Optional applicator, face and body treatment are available.
Bi-polar tip is used for face treatment, while multi-polar tip is for body with a bigger size and higher energy.
Two tips are designed to meet individual needs. Immediate visible result can be obtained from the first treatment.
2.No consumable, durable tip life span.
No tip consumables. Tip can be used limitlessly within its life span, which ensures a high return on investment.
3.Non-ablative, virtually pain free. No anesthesia is required.
Non-ablative treatment offers a painless and comfortable experience. No anesthesia is required.
No downtime treatment enables patient return to daily life immediately.
4. User-friendly interface, easy to operate.
Before and After Pictures
Technical Specification
| Fractional RF frequency | 1.15MHZ |
| Fractional energy | Up to 142mj/pin |
| Tip size | 21*21 mm, 13.5*13.5 mm |
| Tip pin | 64 pins ; 81pins |
| Tip life span | 500 shots |
| Thermal RF Frequency | 1.15MHZ |
| Output energy | 1-100j |
| Working mode | Signle mode, Continuous mode |
| Applicator type | Bi-polar, Multi-polar |
| Software control | IOS system, bluetooth |
| Screen size | 17 inch LCD touch screen |
| Dimension | 440mm*270mm*92mm |
| Net weight | 8kg(without trolley) |
Founded in 1995, GSD is a leading manufacturer of hi-tech aesthetic and medical equipments, combined with research, production and service with its own patents. It has been keeping pace with the international standards on technology, introducing innovative concepts continuously from RF to HIFU, from IPL to FCD diode laser, from erbium glass fractional laser to eximer light. Under strict standards of FDA, Medical CE, ISO13485, ISO9001, GSD products have covered more than 120 countries.
