Pedal Exerciser bicycle ergometer Rehabilitation Electric mini exercise bike

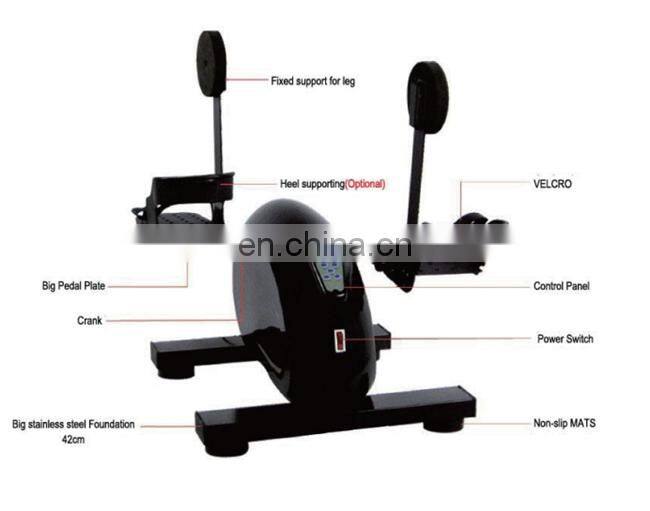

Components and Part
Control Panel
Lower extremity Operating Instructions
1.Before exercising, pleasure that the power is AC220V/50Hz and also check if it couls run as usual. And ceck whether the foot fixed rack, pedals and crank joint is loose.

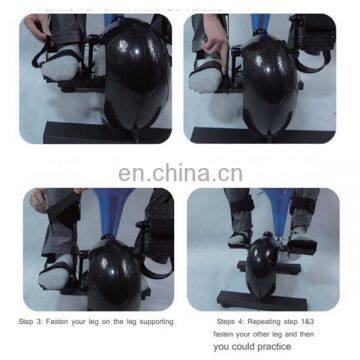

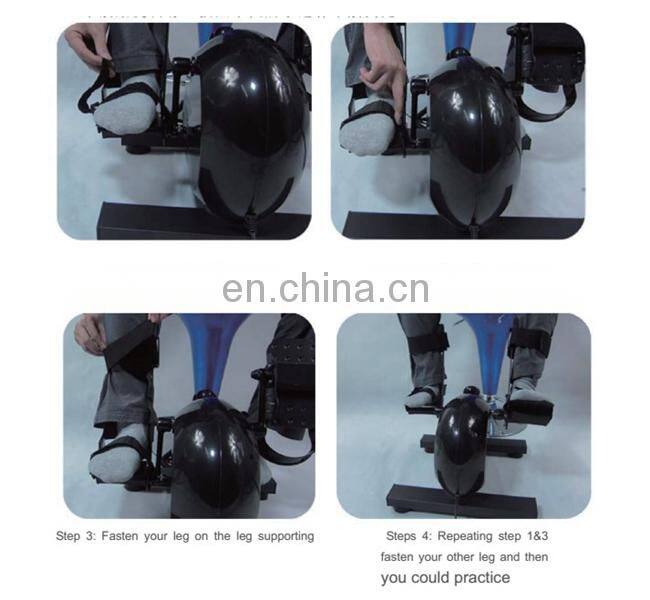

2.Lower limb Rehabilitation Training:
3.Connecting the power AC220V/50Hz; The xontrol panel will show Zero after 1-2 second you open the switch.

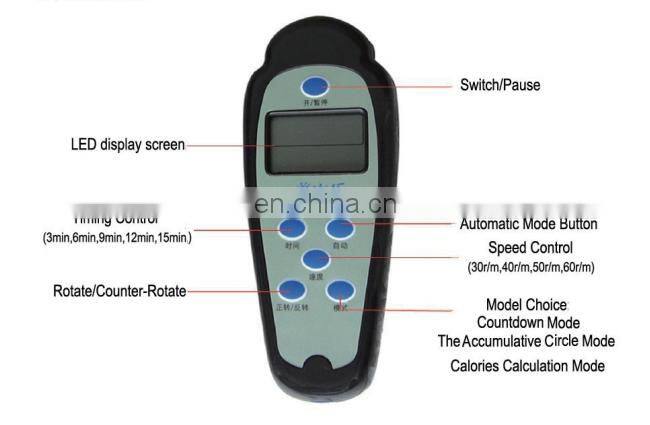

4. Control Panel instruction
| Function Button Name | Main Function Instruction |
| Switch/ Pause | After the electric On/ Of switch is in "On", Push this button, it will work; Again push this button it will pause |
| Timing Control | 3 min, 6 min, 9min, 12min, 15min-Five different working time optional |
| Automatic Mode Button | It will adjust the speeding and rotating direction automatically when you push this botton |
| Speed Control | Procedure Speeding Function with 4-speed: 30rpm, 40rpm, 50rpm and can be adjusted freely |
| Model Choice | Countdown Mode; The Accumulative Circle Moce; Calories Calculation Mode( 10 Rotation will consume about 0.7 calories) |
| Rotate/ Counter- Rotate | Adjust the rotating direction |
5. Please Pause the machine and turn off the power switch; and then release your leg; finally please don't forget to pull out the plug from the socket if you want to stop exercise.

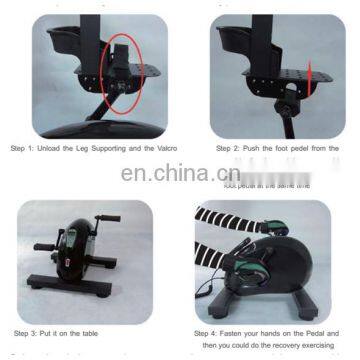

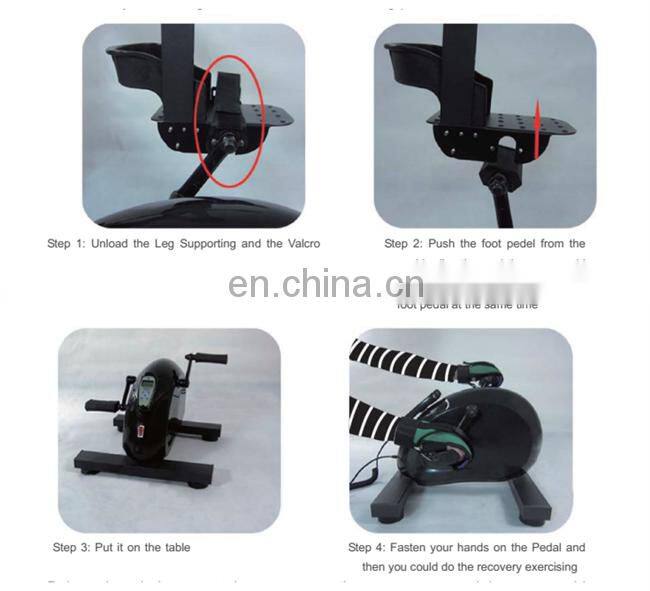

Upper extremity Operating Instructions
Unload the leg supporting and the heel pedal( Optional). And then put it on the table and fasten your upper extremity and then you could do the recovery exercising as showed on the following picture.
| Product Name | Pedal Exerciser bicycle ergometer Rehabilitation Electric mini exercise bike |
| Application | Used to improve activity ability of hand and leg |
| Function | Used to improve activity ability of hand and leg |
| Rated Power | 100W |
| Rated Voltage | 220V |
| Rated Freqency | 50Hz |
| Net Weight | 8kgs |
| Gross Weight | 10-11kgs |
| Foundation size | 42cm |
| Foot Pedal size | 20cm |
| Package size | 48.2*44.7*39.7cm |

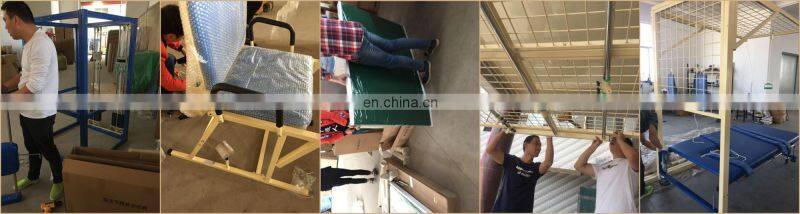

1. Pre-install all products before delivery to prevent mistakes

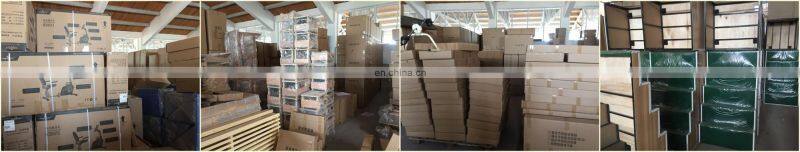

2. Have enough products in stock
3. Have the ability of mass production

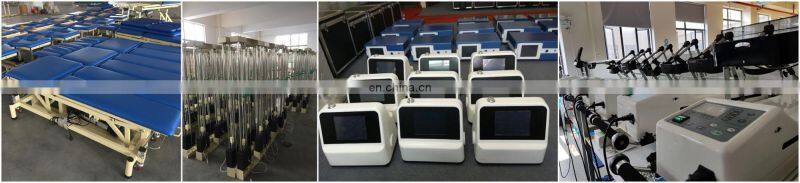

Products Show

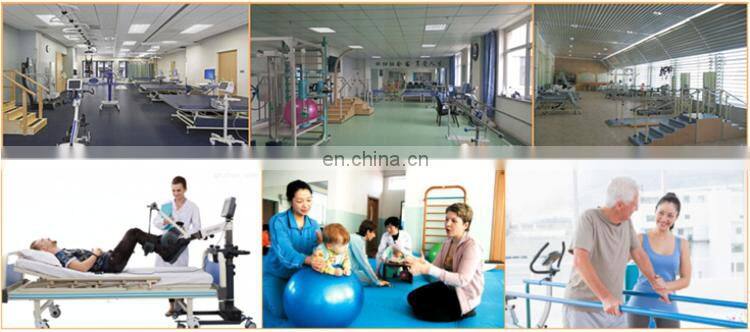

Widely used in rehabilitation center,hospital,healthcare center and clinic!
Looking for distributors in different countries!

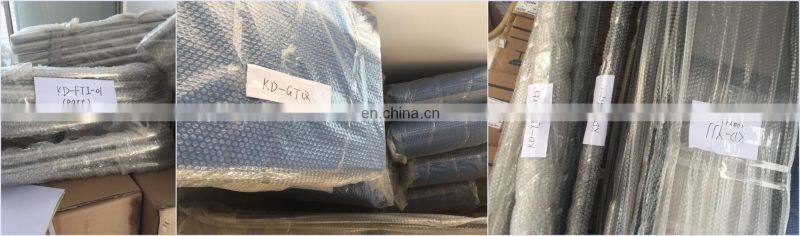

Inner Package
Every part will be put on label to distinguish from other parts

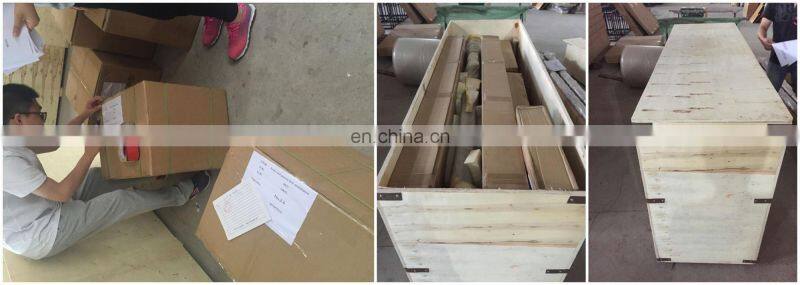

Outer Package
Ourer package is wooden case to prevent damage during transportation
Shipping(by air,by sea,by express,by road)
Changzhou KonDak Medical Rehabilitation Equipment Co.,Ltd
We established our company since 2003 and do business in the domestic and overseas.
With the development of our company, we can produce more than 100 types of rehabilitation equipment,OEM is also acceptable.Our main products include walking training series,standing training series,traction series,exercise series,occupational therapy series,treatment table series and so on.They are widely used in rehabilitation center, hospital,clinic and nursing home.
Up to now, we have exported our products to many other countries,such as Singapore,Africa,Saudi Arabia, USA, Spain, Belgium, Cameroon, Seychelles,Ukraine and so on.
We are looking for long term business partners as our distributors.
