Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine

Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine photo-1

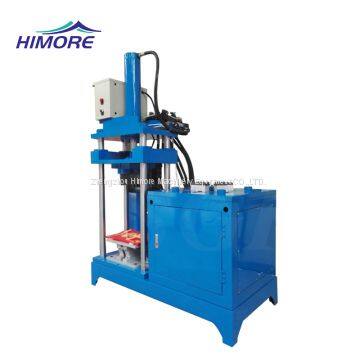

Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine photo-2

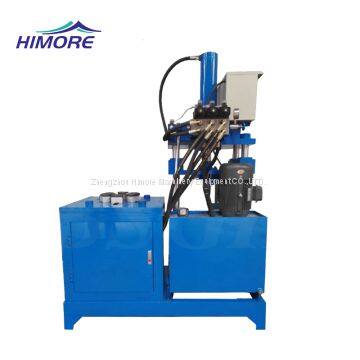

Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine photo-3
Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine photo-4

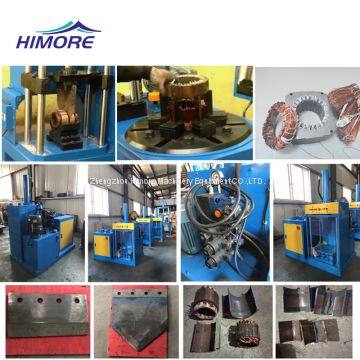

Scrapper 80x300mm Industrial Electric Motor Recycling Machine Scrap Motor Stator Separation Machine photo-5
US$ 7999 - 9999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HIMORE
Place of Origin:
China
Model Number:
HM-MR30
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or Shanghai port or shenzhen port China or as require
Delivery Detail:
20 days
Brand Name HIMORE
Place of Origin China
Model Number HM-MR30
After-sales Service Provided Engineers available to service machinery overseas

Scrapper 80x300mm Industrial Electric Motor recycling Machine scrap motor stator separation machine


Introduction of electric motor recycling machine/scrap motor stator separation machine:

HIMORE Wasted Electric Motor Recycling Machine HM-MR30 is for cutting and pulling your wasted motor stators. As there are a large number of waste scrap electric copper motor stator need to be recycled, this machine is just what you need.

This wasted electric motor recycling machine is our newly developed heavy duty products with large torque,has a high quality hydraulic system.This auto motor stripping machine have 2 main parts,one is cutting parts,another is separating parts,it can cut the scrap motor into 2 pcs,after cut the stator in half,it can taking out all the copper winding in twice,time saving and high efficency.


Advantages of motor stator separation/recycling machine:

1. Using heavy cylinder, large torque, can withstand high loads.

2. We use international famous brand for hydraulic solenoid valve with durable long life.

3. The material of fixture is alloy steel with durable long life.

4. The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.


Technical Data of motor stator recycling machine:

Prooduct Name

Scrap Electric Motor Recycling Machine

Model

HM-MR30

Process Range

8~30cm

Capacity

8~30Pieces/Hour

Power

4KW/380V

Weight

790KG

Dimension

1260mm*710mm*1860mm


Structure of scrap motor stator recycling machine/Electric Motor Stator Rotor Recycling Machine:

HM-MR30 uses heavy cylinder, large torque, can withstand high loads. We use international famous brand for hydraulic solenoid valve with durable long life. The material of fixture is alloy steel and the blade is made of manganese steel with durable long life.


What kind of blades and material:

HM-MR30 cutting area mainly include flat blade can cutting motor shell and sharp blade can cut motor stator into 2pcs.the blade is made of manganese steel with durable long life.


How does the motor stator separator work:

This machine Mainly have 2 area: cutting and separating complete the whole process.

Firstly the cutting parts cut the motor shell by flat blade then the sharp blade cutting the motor stator into 2pcs.

Secondly taking out all the copper winding in twice by putting area.



Why need the stator wrecker copper wire recycling machine/motor stator separating machine:

There is no doubt manual recycling of scrap used copper motor wire requires a lot of time and labor force, and the copper wire can not be completely recycled during the processing, resulting in the loss of metal. It can effectively avoid all the problems caused by the manual recycling of copper wire, environmentally friendly, non-polluting, 100% recycling, liberating labor, saving time, high efficiency is this new product's characteristic.


Packaging & Shipping

Packing:

1) Packing whole machine with metal frame, external fittings packing separately;
2) Inner Package: machines covered by plastic film;
3) Outter Package: plywood case

Delievery time:

20-25 working days after your payment.

Transportation:

Urgent order/ Lightly weight cargo shipped by air (Express Delivery: DHL/ Fedex/ TNT etc.)

Heavy weight shipped by sea.


Recycling Products include:
1: Cable recycling machine (including wire stripping machines and cable granulator machines)
2: Radiator recycling machines.
3: Electric motor recycling machines.
4: Other miscellaneous recycling machines.


Our Services

1. 24 Hours Online and Offline Services: We provide 24 hours online technical support and after-sales service. For your different questions, we also have different solution ways. If you need our technical staff, we also will arrange at the first time.

2. Special Service:Technical installation (Scheduled installation) andmachine maintenance.

3. 1 Year Warranty: During the 12 months warranty period, we provide repair and replacement services for non-human damage to the main components of the machine.

4. Save Money and Time: In fact, our machine with good quality, you do not need worry about the install and maintain, almost no clients backed for the machine's quality, with this case, you can save some invisible money and time.



FAQ

1. How long is the guarantee?
We promise guarantee as one year for non-human damage factor.
2. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve
problems or dispatch our worker to your factory.
3. Where are you? Can we go to China and visit your factory?
Yes, of course.Welcome to our factory.
4. Do you have manual with the machine?
Yes, of course. It is in English version.
