Parameter of Machine:
SK-P21 | |
G.W | 205kg |
Power | AC 110V /220V / 380V |
Size | 1100*1550*1000mm |
Stitching area(MAX) | 250x200mm |
Speed scope | 200-2000rpm for 10 sections |
Stitch length | 0.1-12.7mm |
Max Speed | 2700rpm |
Needle | DP×10#--17#--25# |
Shuttle Hook | Oscillating shuttle Hook |
Presser foot type | Pneumatic |
Memory | RAM/USB/SD |
Max.number of stitche | 8,000per pattern |
Propportional sacle function | X.Y 10-200%(min0.1%) |
Outer pressure foot lifting range | 32mm |
Laser | high powerful laser cuttting installment/ 5 years warranty |
Production efficiency | 1200--1500 pcs pockets/ 8 hours |
Motor | Diect drive motor 750 W |
Application:

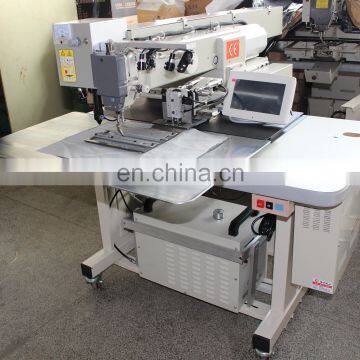

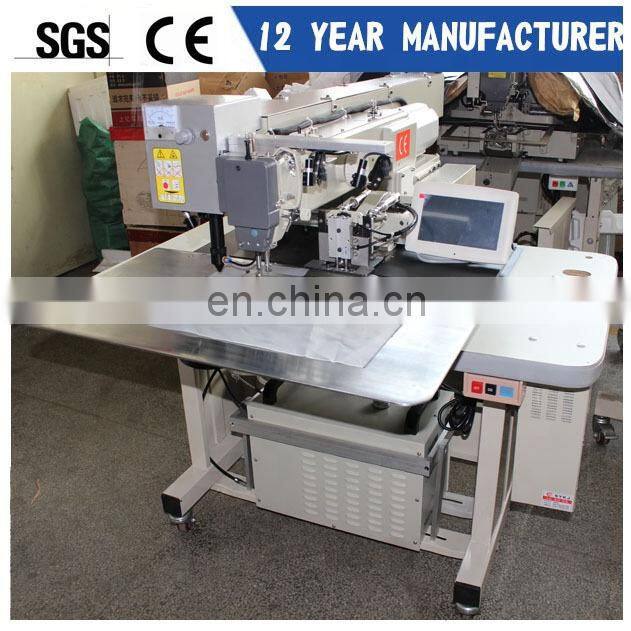

The auto laster pocket welting machine is a universal automatic welt pocket unit. This unit can sew all kinds of common welt pockets: straight, slanted, with or without flap. Sewing with zipper can be integrated without any problem. laster pocket welting machine sews at a high speed. Clamp transfer and all trimming systems of the sewing unit have their own drive; clamp transfer and corner cutting are controlled fully automatically by step motors. The center knife is driven separately by an electric motor.

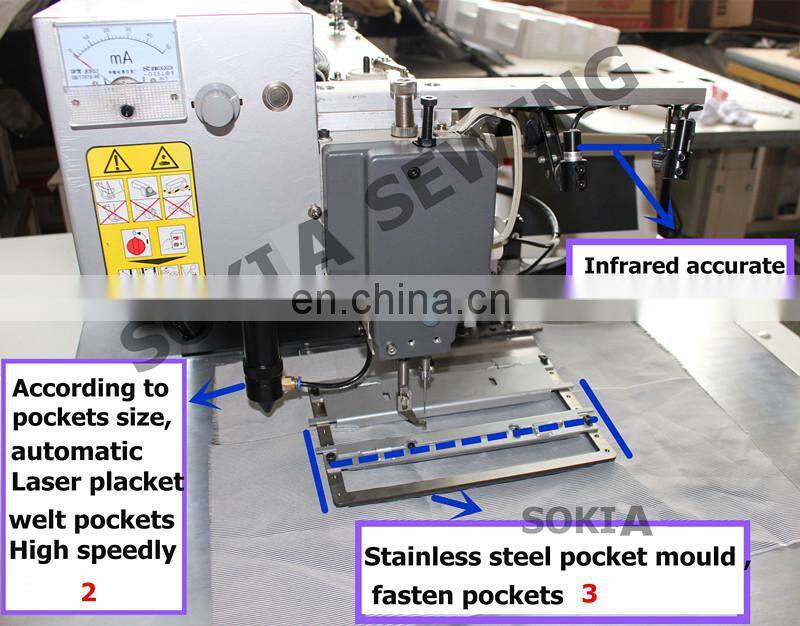

Details of laser welting pocket setter:
1Japan needles and direct driver motor with Strong penetration.
2.Imported guide rail has good quality ,working life more than ten years.
3.Clamp installment making sewing easy and high efficiency for new workers.
4.The secondary gripper device has a function of solving the problem of floating thread.
5. The presser foot with function of lifting up and down .adjusted High-Low level to sewing smoothly.
6.English computer controller & big LCD display easy operation, Large memory.
SK Sewing Your good Partner, Too .
Packing
| |
RFQ:
Q1: Are you a trading company or a manufacture?
A1: We own a factory ourselves, and we can assure the quality we manufactured.brand: Sksew
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with good after service. Also we have two
year warranty of the spare parts, free of charge.
Q3: Why choose our Machines ?
A3: Our products with more than 35% energy saving. Cost effective environmentally. Excellent pre-sale and after-sale services.
