Developed Miniature Cooler Condenser Unit for Tiny Chiller Refrigeration Cycle

FOB Price

US$ 450 - 570 / Piece

5 Pieces(Min. Order)

Port shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RIGID HVAC	Place of Origin	China
Type	Water-Cooled	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	DV1930E-P
Weight	5.5kg	Condition	new
Cooling Capability(kw)	100W~500W Adjustable

Product Description

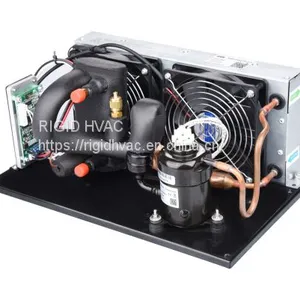

Developed Miniature Cooler Condenser Unit for Tiny Chiller Refrigeration Cycle

Developed Mini-Chilled Water Unit is designed for Mobile & Compact Fluid Chiller.

This Compact Water Chiller Unit has very small size and low weight (2.3kgs), it can be applied in mobile or portable systems. And because of its low energy consumption, it's very suitable for small refrigeration applications, such as miniature freezer system and portable cooling system.

Power Supply: DC 24V.
Refrigerant: R134A.
Compressor: QX1902VDL (1.9cc; 24V).
Efficiency: 30% higher than ordinary copper coil evaporator.
Development: Plate Bed Evaporator replace Coil Evaporator.

Custom Cooling & Refrigeration Systems

RIGID specializes in the design of miniature refrigeration systems. We work directly with our customers to provide custom cooling solutions to meet their specific requirements. Rigid also provides solutions to meet client's challenging cooling requirements. Many of cooling systems & modules which Rigid has designed, are very well-received by customers.

RIGID DC Condensing Units' compact size and reliable performance make them ideally suited for mobile or portable cooling applications. Our patented groundbreaking miniature compressors are ideally suited for compact water chiller, cooling electronics, precision instrument, and in numerous commercial & personal appliance types, where space and weight are important.

Technical Data
Cooling Capacity	100W~500W Adjustable
Heat Exchangers Material	Plate-bed Type Evaporator
Coolant Temperature	0°C to 50°C (32°F to 122°F)
Maximum Power Draw	500 Watts
Voltage	12V & 24V & 48V DC
Compressor	Brushless Inverter Compressor
Noise	<40 dBA
Weight	5.1 lbs / 2.3kgs
Dimensions ( L x W x H )	25 x 16 x 13.5 mm ( 9.8 x 6.3 x 5.3 in )
Orientation	Must operate within 30° of flat
Operating Ambient Temperature	0°C to 50°C (32°F to 122°F)
Refrigerant	R-134a

Key Benefits:

Stationary or portable available
Minimize weight&footprint&noise
Compact cooling unit for precise thermal control

Features:

Weight: 5.1 lbs / 2.3kgs
12V 24V 48V DC input
Inverter brushless compressor
Fully tested, simple to install unit
500Btu~1,600Btu cooling capacity

Applications:

Fluid Chiller
Water Dispenser
Portable Cooling systems
Water Cycling applications
Mini-Chilled Water System
and other mobile freezer systems
... ...
