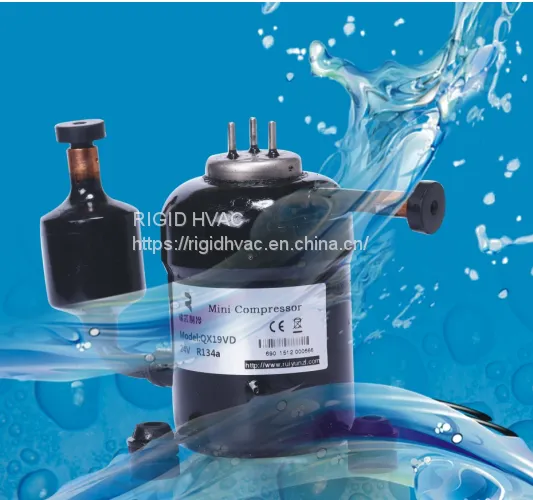

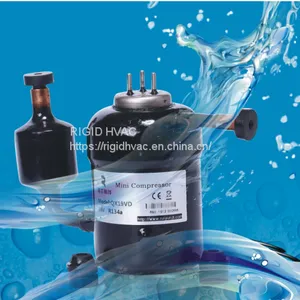

DC Tiny Refrigerator Compact Compressor for Small Portable Cooling Equipments
US$ 190 - 280
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
RIGID HVAC
Place of Origin:
China
Model Number:
QX1903VDL
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V Commercial Air Compressor for Cooling Machine and Other Small Liquid Refrigerantion SystemUS$ 190 - 280MOQ: 5 Sets -
The World Mini Portable Compressor Unit for Small Cooling System and Liquid Chiller ModuleUS$ 190 - 280MOQ: 1 Piece
-
Mini R134a Referigeration Compressors for Rotary Compressors for Air and Liquid CoolingUS$ 395 - 550MOQ: 1 Piece
-
12V 24V 48V Rotary Compressors for Cooling SystemUS$ 195 - 280MOQ: 5 Pieces
-
12V DC Inverter Compressor Fo Rwater Cooled and Micro Portable Refrigerated Cooling SystemUS$ 190 - 280MOQ: 2 Pieces
Brand Name
RIGID HVAC
Place of Origin
China
Model Number
QX1903VDL
Type
Water-Cooled
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1year
Weight
0.78kg
Voltage
12v 24v 48v
Condition
new
Cooling Capability(kw)
100W-550W
DC Tiny Refrigerator Compact Compressors for Small Portable Cooling Equipments
| Technical Data | |
| Compressor Model | QX1903VDL |
| Refrigerant | R-134a |
| Cooling Capacity | 100W~500W Adjustable |
| Compressor | Brushless Inverter Compressor |
| Coolant Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Power Draw | 500 Watts |
| Voltage | 48V DC |
| Motor Type | Variable Speed Motor |
| Noise | <40 dBA |
| Net Weight | 1.6 lbs / 0.72kgs |
| Dimensions ( L x W x H ) | 57 x 78 mm ( 2.2 x 3.07 in ) |
| Orientation | Must operate within 30° of flat |
| Operating Ambient Temperature | 0°C to 50°C (32°F to 122°F) |
| Applications | Cooling and Refrigeration |
ELECTRIC INVERTER COMPRESSORS
THE FUTURE OF THERMAL CONTROL OF MOBILE REFRIGERATION
The RIGID R134a DC variable speed hermetic compressor, with rotary speed at 1500rpm ~ 6500rpm adjustable, is suitable for the cooling device with a power of 12V, 24V or 48VDC power supply, Evaporating Temperature at -35 degree ~ 10 degree, especially for using in a mobile refrigeration systems.
Features:
RIGID R134A Electric DC Compressor provides several benefits:
1) The first & proffessional Electric miniature compressor manufacturer in China;
2) Stationary or Portable Available;
3) Minimize weight & footprint & noise;
4) Ultra small size while powerful cooling capacity for precise thermal control;
5) Under-Voltage and Over-Voltage protection, motor over-current and phase lack protection.
Applications:
RIGID miniature compressor's tiny size and light weight make them ideally suited for mobile or portable small applications, including:
Fluid Loop
Water Chiller
Vaccine Fridges
RV Refrigerators
Beverage Cooling
Portable Cooling Systems
Electronics Cooling Systems
Medical Imaging Equipment
Mini-Chilled Water Systems
Miniature Refrigeration/Aircon Systems
Water Chiller
Vaccine Fridges
RV Refrigerators
Beverage Cooling
Portable Cooling Systems
Electronics Cooling Systems
Medical Imaging Equipment
Mini-Chilled Water Systems
Miniature Refrigeration/Aircon Systems
