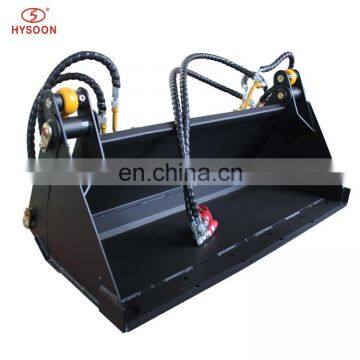

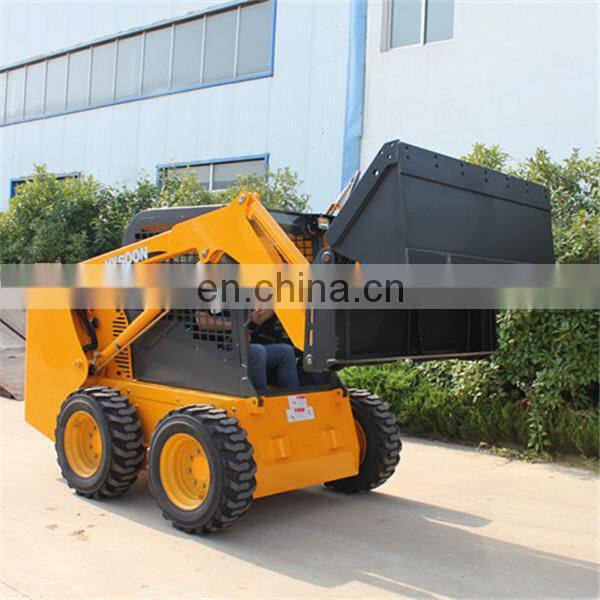

Bobcat, toro dingo, hysoon multifunction mini skid steer loaders attachment 4 in 1 bucket parts for sale
4 in 1 bucket is integrated with the function of Loading, pushing, levelling, clamping.
Main features:

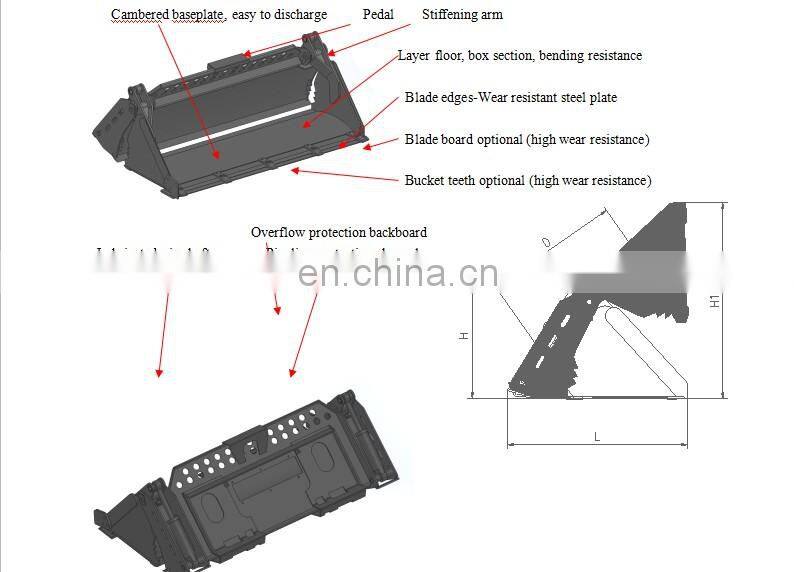

No |
Specification |
Teeth (Q) |
Capacity (m3) |
Weight |
Width (mm) |
D(mm) |
H1(mm) |
L(mm) |
H(mm) |
For mini skid steer loader | |||||||||
1 |
ZC1080D |
5 |
0.14 |
160 |
1080 |
440 |
572 |
521 |
713 |
2 |
ZC1150D |
5 |
0.15 |
166 |
1150 |
440 |
572 |
521 |
713 |
3 |
ZC1215D |
5 |
0.16 |
171 |
1215 |
440 |
572 |
521 |
713 |
4 |
ZC1300D |
5 |
0.17 |
176 |
1300 |
440 |
572 |
521 |
713 |
2 |
ZC1450D |
7 |
0.18 |
187 |
1450 |
440 |
572 |
521 |
713 |
For skid steer loader | |||||||||
1 |
ZC1550 |
5 |
0.34 |
345 |
1550 |
593 |
862 |
629 |
906 |
2 |
ZC1680 |
7 |
0.38 |
358 |
1680 |
593 |
862 |
629 |
906 |
3 |
ZC1850 |
7 |
0.41 |
378 |
1850 |
593 |
862 |
629 |
906 |
4 |
ZC2040 |
9 |
0.46 |
397 |
2040 |
593 |
862 |
629 |
906 |
5 |
ZC2130 |
9 |
0.48 |
410 |
2130 |
593 |
862 |
629 |
906 |
Remark:
1. Capacity points to Stowed volume ( ISO7546 (1983)
2. Weight does not include bucket teeth or optional blade plate and side edge .
3. Teeth, side edge,blade plate are optional parts.

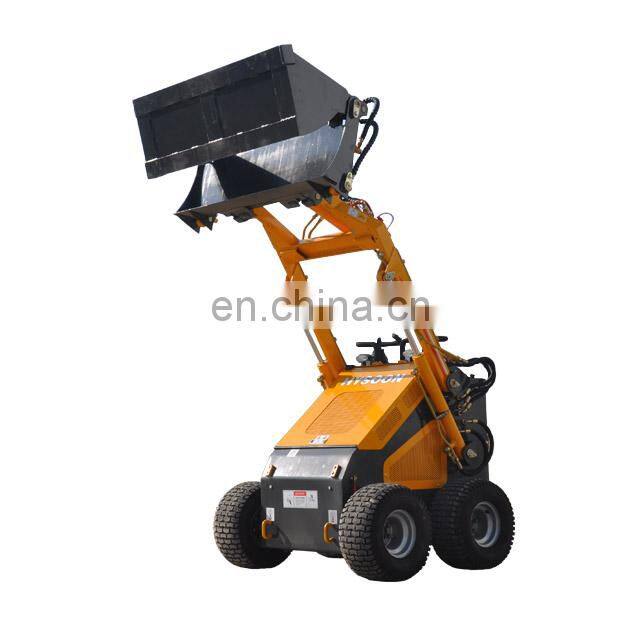

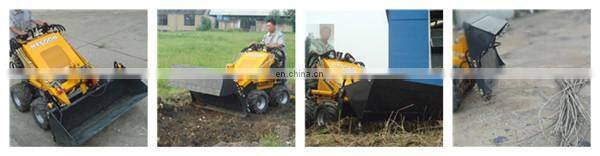

4 in 1 bucket for Dingo,Hysoon etc. mini skid steer loaders:

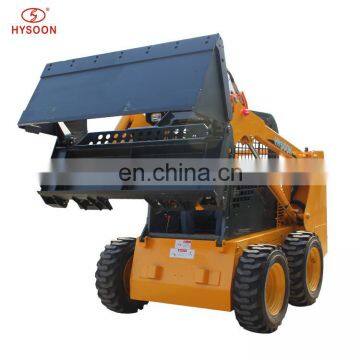

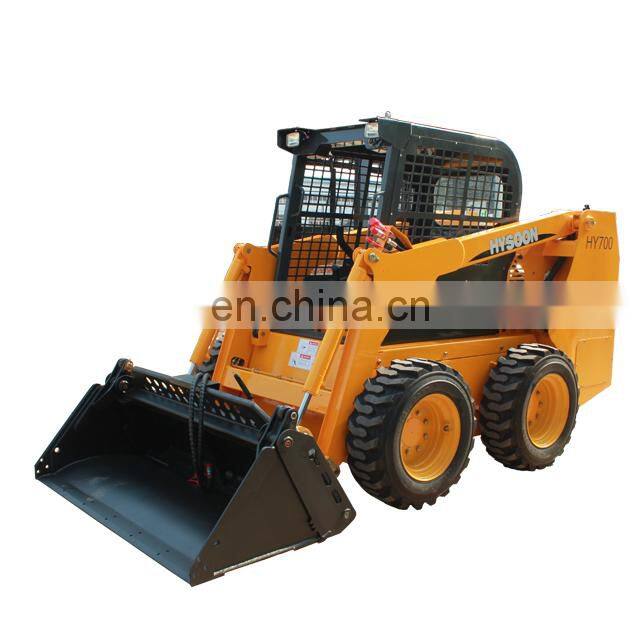

4 in 1 bucket for Bobcat type skid steer loader:
