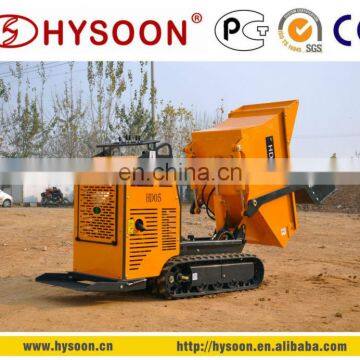

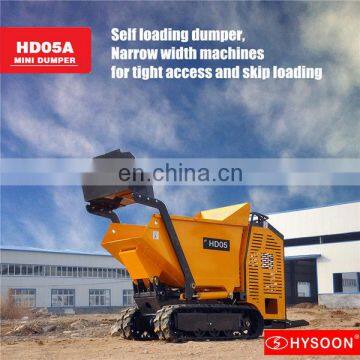

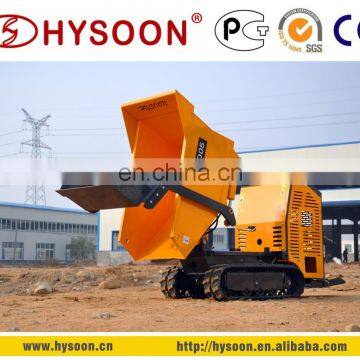

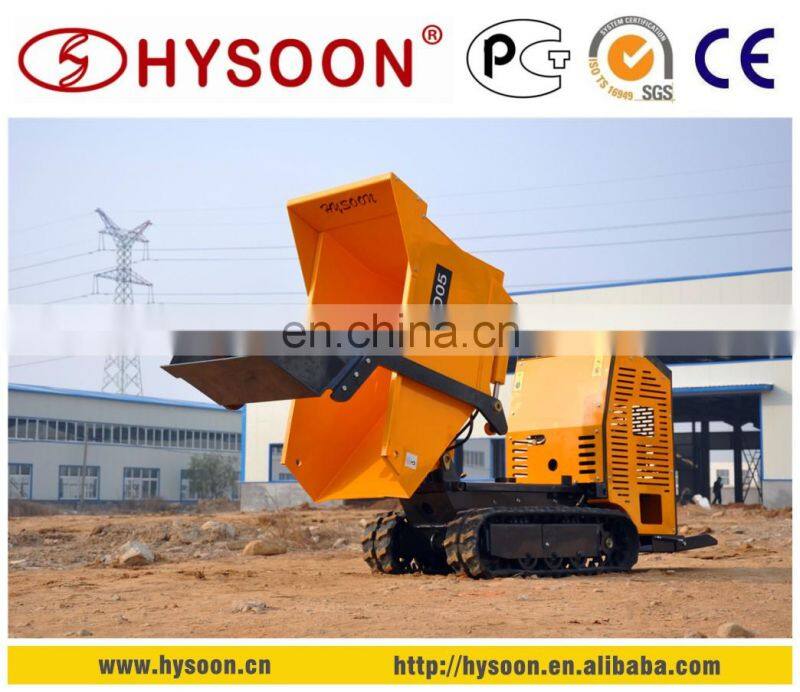

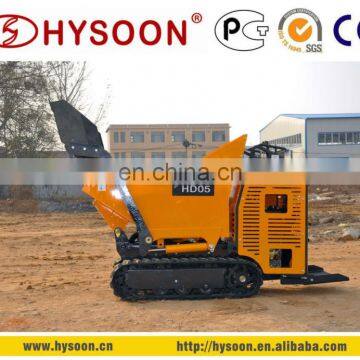

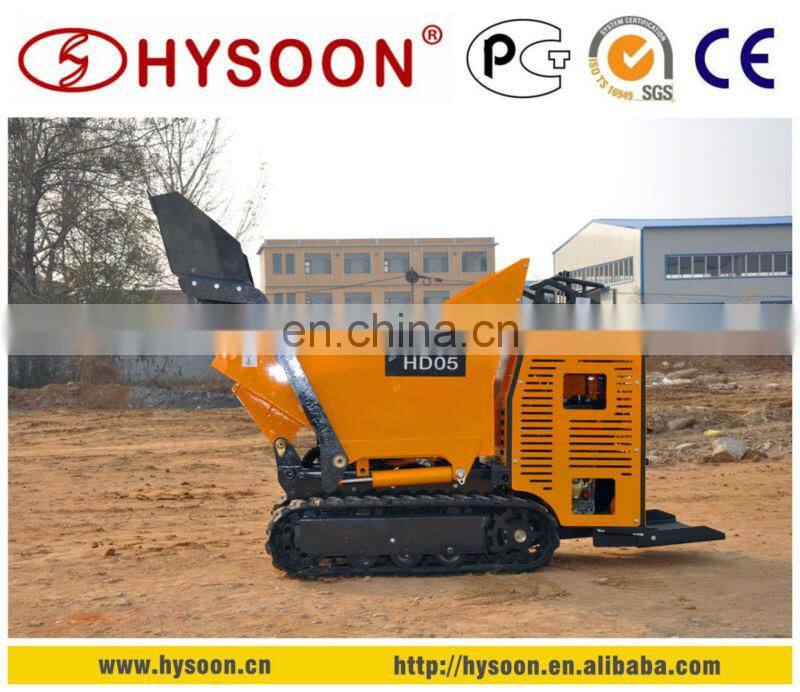

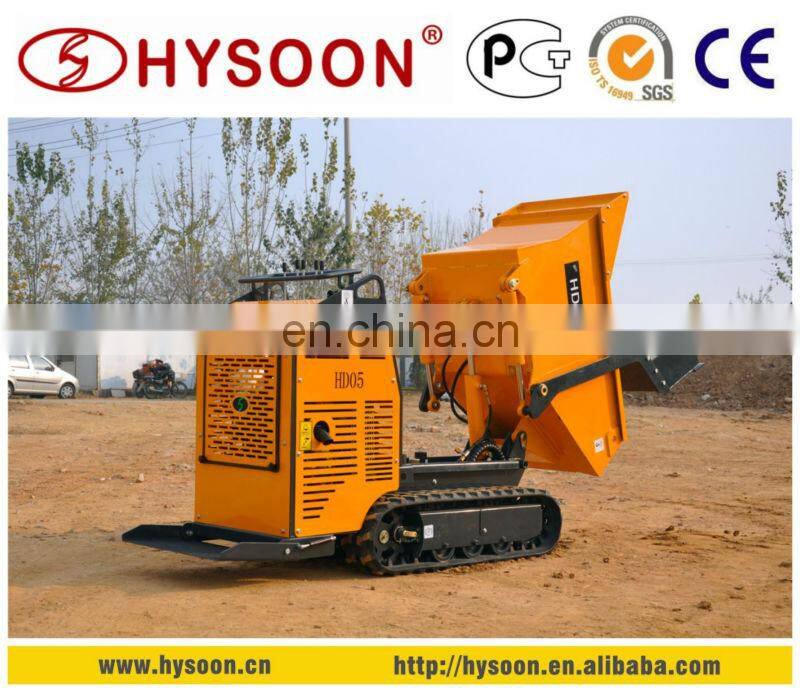

HYSOON HD05A self loading track dumper
Time saving service:
Integral type Chassis ensures operating and maintaining easily.
Complete hydrostatic transmission technology makes the whole machine more stability
Thanks to the open-style design of left-side, right-side and back cover guards; you can fill the diesel & engine oil and exchange the engine air filter for the dumper conveniently.
All the cover guards on the operation system can be dismounted quickly and repair the dumper more convenient and fast.
Compact size:
Its flexibility performance ensures the dumper to transport kinds of materials in small space
High efficiency :
Safe and quick rear dumping.
1447mm ultrahigh dumping height can transport various materials to the truck.
Standard Specification:
• Engine:diesel engine (9HP)
• Tyre:Rubber track
• Motor:cycloid motor
• Hydraulics Pumps:gear pump
• Bucket:With self loading bucket
• Without X-support

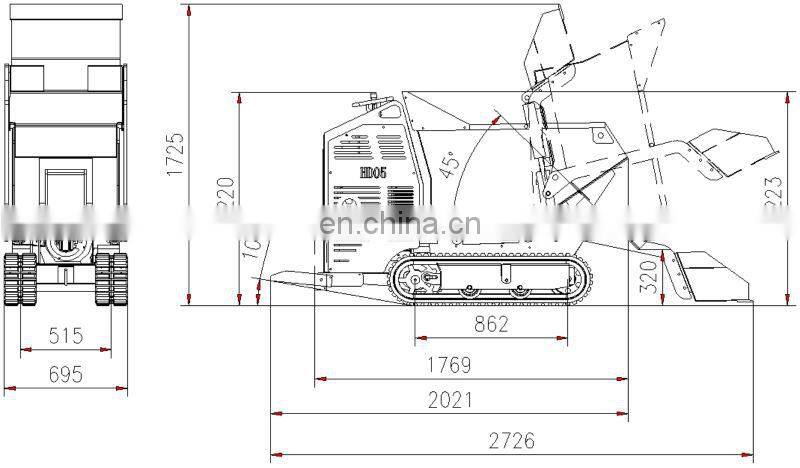

• Size (length *width *height):1895*695*1220mm
• Bucket capacity: 0.31cbm
• Rated load:500kg
• Operating weight:800kg
