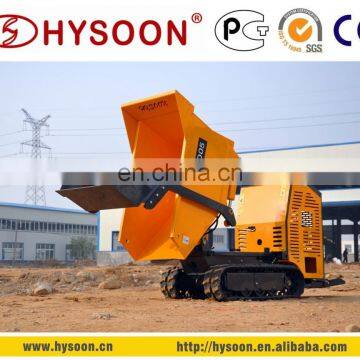

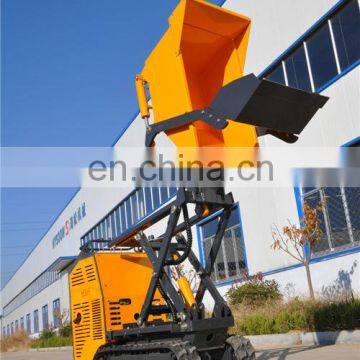

Hydraulic Mini Dumper (HD05)
US$ 3,500 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HYSOON
Place of Origin:
Shandong, China
Model Number:
HD05
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD05 Crawler Dumper With CE CertificationUS$ 3,500 - 6,000MOQ: 1 Set -
HD05 Mini DumperUS$ 3,500 - 6,000MOQ: 1 Set
-
HD10 Dumper for Sale HysoonUS$ 10,000 - 12,000MOQ: 1 Set
-
Small Farm Equipment Tractor Machine Agricultural FarmUS$ 4,000 - 5,000MOQ: 1 Set
-
Small Farming Equipment Tractor Machine 1000kgUS$ 11,000 - 16,000MOQ: 1 Set
Brand Name
HYSOON
Place of Origin
Shandong, China
Model Number
HD05
Technical parameter
Model | HD05 | HD05A |
Bucket | ||
Length | 1150mm | 1221mm |
Width | 648mm | 690mm |
Height | 515mm | 585mm |
Capacity | 0.2 m3 | 0.31m3 |
Self-exchanging skid capacity | 0.04 m3 | |
Angle of dumping | 57°/47° | 45° |
Angle from the ground | 10° | |
Engine | ||
Brand | Chinese | |
Fuel | Diesel | |
Rated power | 6.8Kw | |
Rated (rotating)speed | 3000r/min | |
Cylinder | 1 | |
Hydraulic system | ||
Motor | Chinese made | |
Double pump | Chinese made | |
System pressure | 16MPa | |
System flow | 12ml/min | |
Hydraulic oil tank capacity | 19.4L | |
Body of machine | ||
Operating weight | 600kg | 800 kg |
Load capacity | 500kg | 600kg |
Fuel tank | 5.5L | |
Speed | 3.5km/h | |
Climbing capacity | 15% | |
