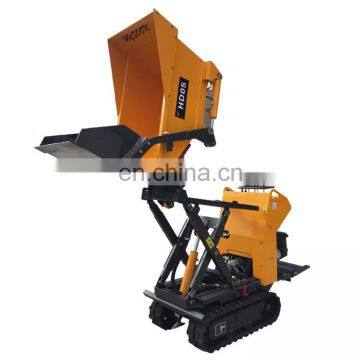

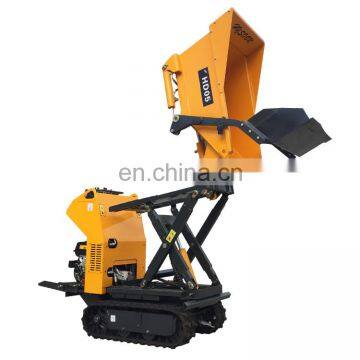

1. Mini crawler Dumper HD05
HD05 mini dumper is 360° skid steer type, Compact body, easy to handle, with high lifting device and self-loading device, reduce labor. Operating load is 500kg, , widely used in garden, manufacturing, recycling, roads, buildings, construction, agricultural farms and so on.
2. HD05 Parameter
| |
1)Size | |
Total Dimension(L*W*H) |
1895mm* 770mm* 1220mm |
Bucket size (L*W*H) |
1150mm*648mm*515mm |
Bucket Capacity |
0.2m³ |
Self Dumping Capacity |
0.04m³ |
2)Engine | |
Engine type |
Gasoline Kohler engine, Diesel, Electric |
Rated Power (KW) |
Gasoline, 10kw. Diesel: 6.8kw. Electric: 5kw |
3)Hydraulic System | |
Pressure |
16Mpa |
Operating Load |
500kg |
System flow |
12ml/min |
Travel Speed |
0-3.5km/h |
Hydraulic oil tank capacity |
19.4L |
Fuel tank capacity |
5.5L |
3. HD05 Mini crawler Dumper Main Features | |
|
Time saving service 1. Integral type Chassis ensures operating and maintaining easily. 2. Complete hydrostatic transmission technology makes the concrete dumper more stability. 3. Thanks to the open-style design of left-side, right-side and back cover guards; 4. Fill the engine oil, exchange air filter conveniently. 5. All cover guards on operation system can be dismounted quickly, maintance easily. Compact size Flexibility performance ensures the mini track dumper truck transport materials in small space. High efficiency 1. Safe and quick rear dumping. 2. 1447mm ultrahigh dumping height,the mini track dumper truck for sale can transport materials to truck etc. tools. Different choice for Engine Koher gasoline engine; Diesel engine; Electric. | |
| |
4. With high lifting or not, for optional. | |
| |
With high lifting device can lift up dumper bucket and dump materials to truck etc. | |
1). We are the leading Manufacturer of mini track dumper in China.
3). High Quanlity & Reasonable Price. Offer Products are Highest cost performance.
4). Responsible, in Good Faith. To Guarantee Delivery. Do Security by Alibaba Escrow.
2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Engine Warranty: 3 Years. International Warranty.
3). Provide Technical Support for Life.
3. Do We have Distributors?
Yes. In Australia and South Korea. And we are widely recruit Distributors Around the World.
4.Can We Support OEM?
Yes, we can.
