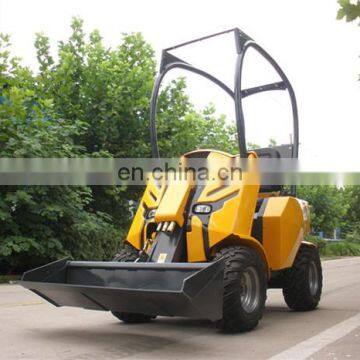

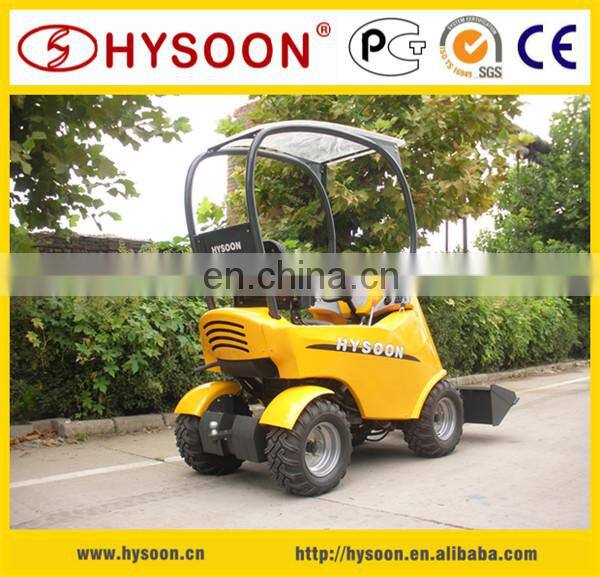

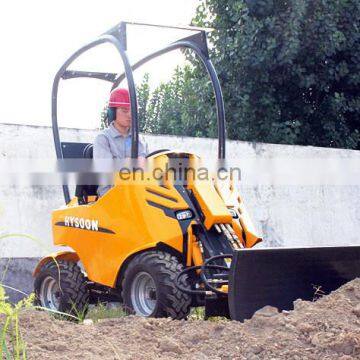

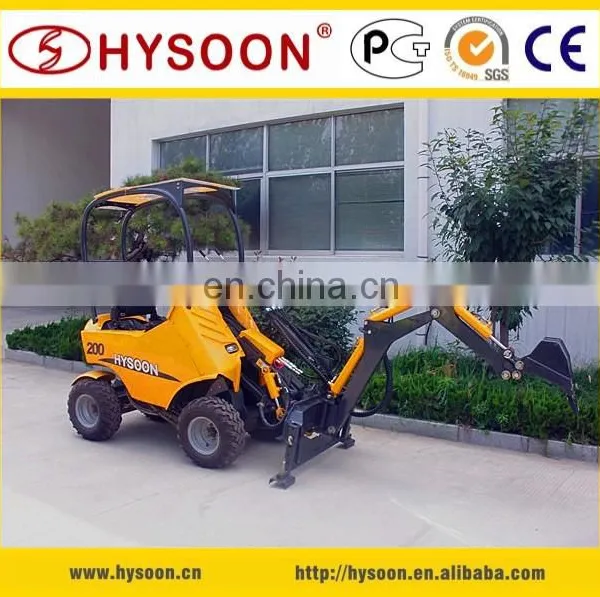

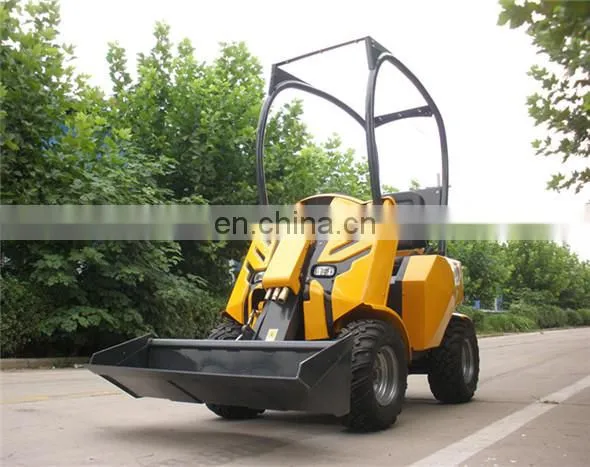

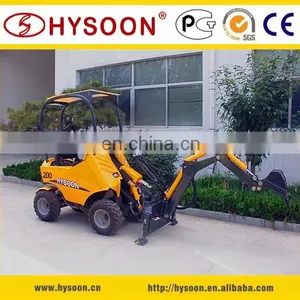

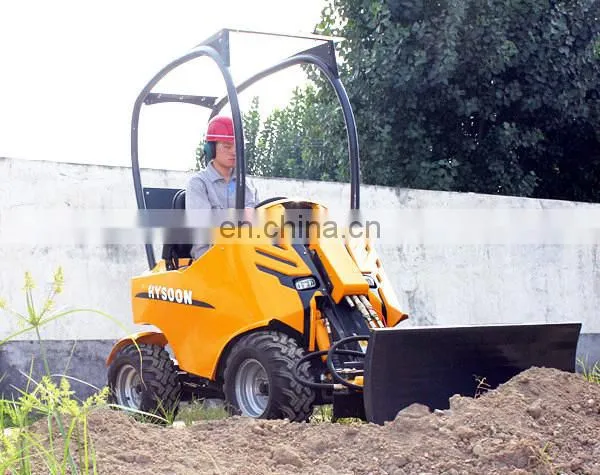

HYSOON CE certificated mini excavator HY200-----samll machine with big fuction
- Articulated steering chassis
- hydrostatic transmissin
- 4 wheel driving, ride on driving makes you more comfotable
- easy control and maintenance
- Briggs&Stratton gasoline engine from USA
- Double pumps----piston pump and gear pump
- Impoted hydraulic system from Italy
- two pedals for selecting the driving direction and speed
- One special quick attach for the bucket
- Quick installation system. A hitch plate can be ensured that the attachments can be installed/uninstalled easily and quickly, and to make sure that it will not influence your work efficiency
- The compact dimension, hydrostatic transmission guarantees smooth, flexible and precise driving. The machine can be controlled very exactly both on low and higher drive speed.
- Advanced appearance like Optimus Prime in Transformers

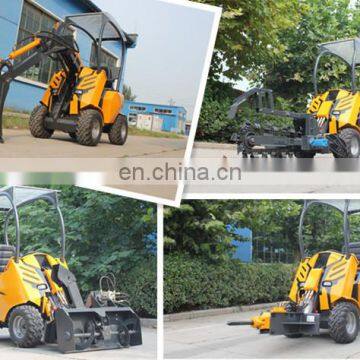

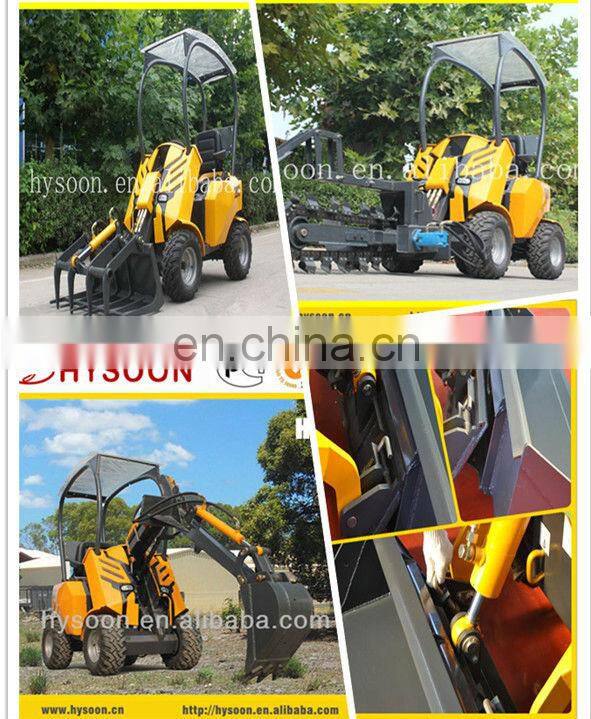

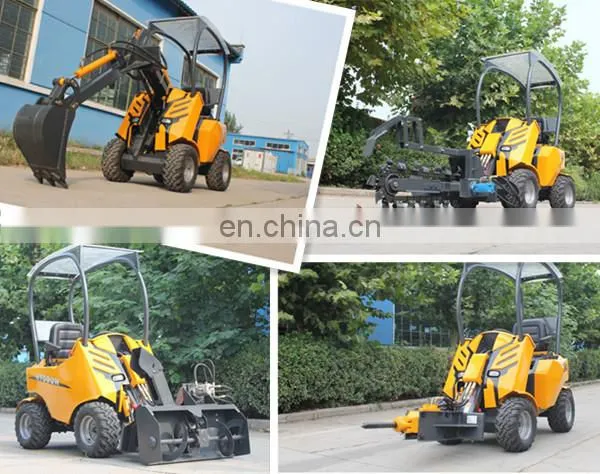

CE Cetificated mini loader (HY200) Attachments
There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
Item | HY200 |
Dimension | 2430* 1080* 2045mm |
Max pin height | 1755mm |
Max Working Height | 1360mm |
Max Dump height | 1295mm |
Max Dump distance | 430mm |
Overall width to outside of tyre | 1080mm |
Bucket width | 1150mm |
Ground clearance | 210mm |
Departure angle | 40° |
Dump angle at max height | 37° |
Rollback of bucket on ground | 28° |
Mini Turn Radius | 2030mm |
Rated power | 23HP |
Fuel volume | 27.45L |
Hydraulic oil volume | 21L |
Operating weight | 900kg |
Bucket capacity | 0.15m^3 |
Max pushing power | 5KN |
Max lifting power | 4.6KN |
Speed | 0-8Km/h |
Operating load | 200kg |
Engine | Briggs&Stratton Vertical shaft gasoline engine |
Engine cooling | Air cooled |
Drive | Hydraulic 4 wheel drive |
Hydraulic system pressure | 17MP |
Accumulator | Start: lead accumulator, Rated voltage:12V, Capacitance:36Ah |
Tire inflation pressure | 7psi(0.5bar) |
Noise | ≤102db(A) |
- 1 year warranty.( Engine warranty is 3 years, International warranty service)
- 24hours technical support
- Calling or door to door service
- Supply high quality small wheel loader for you at reasonable price
- Accept your customization
Our company is the leading professional manufacturer specializing in mini skid steer loader and skid steer attachments in north of China for 7years and get rich experience.
Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engineering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.
Our products are not only popular in domestic markets, but also have been exported to America, Canada, Australian, Argentina,Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.
We strictly comply with ISO9001 Quality Management System Authentication and ISO1400 Environment Management System Authentication. The amount of engines' exhaust has reached EURO or RURO III Standard.

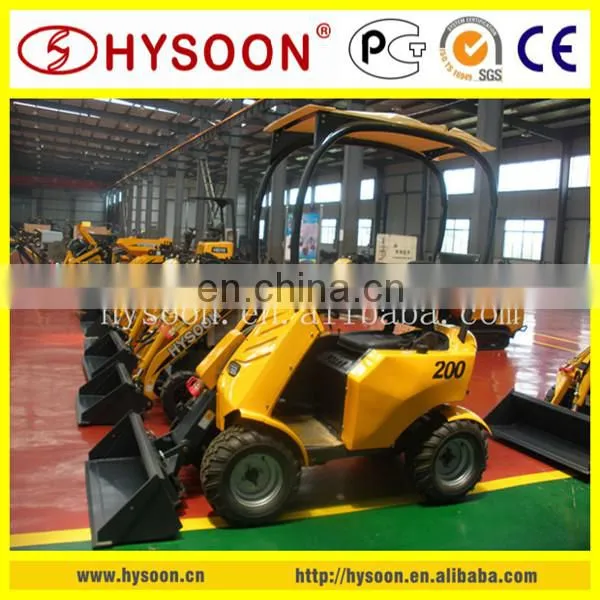

Exhibition
Warmly welcom to visit our factory
Why us?
1. We are the first manufacturer of mini loader with accessories in China.
2. we have stong technical support , Professional desgin team, can make sepcial design for you.
3. High Quality & Reasonable Price. The accurate product positioning.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .
Our Warranty?
1. supply parts for free if damage within 1 year warranty time .
2. Engineers are available to service machinery overseas
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world.
If you want to be one of them, please contact us.
Can we accept OEM?
Yes, we can
