Hysoon Articulated 4wd mini backhoe loader
EPA Approval Briggs&Stratton Engine
260kg load capacity
Ride on Operation
Easy to drive
universal quick hitch plates
- A Hysoon 4wd mini backhoe loader offers superior performance under any conditions,but is at its best in tight situations where its articulated agility is a real asset.
- Unique articulated frames provide a more compact and durable structure
- Quick Hitch-hydraulic & manual allows rapid changing of accessories
- A range of optional hydraulic quick change attachments is available to meet various job demands
- Hysoon Loaders are used in construction,agriculture,industry,horticulture,shires,landscaping,parks and golf courses,mining and more
- Request a demo and see the tremendous potential of a Hysoon loader for yourself.
- Small operating radius design enables better maneuverability in a confined space.
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 27L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
| Max Pin Height (B) | 1755mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |

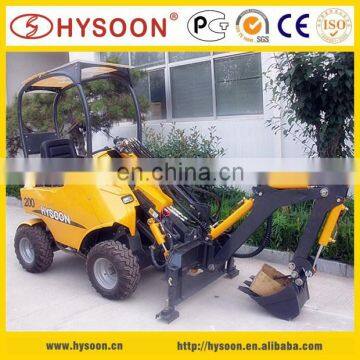

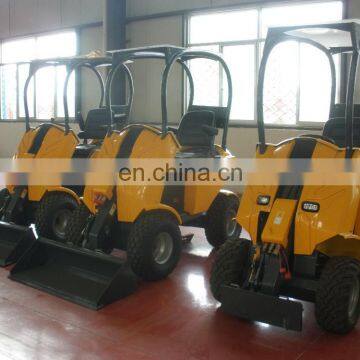

More Pictures of the Made in China 4wd mini backhoe loader
More loader attachments for the Made in China 4wd mini backhoe loader
More hysoon loader products,please click the above link
Now we are a supplier on .
and has been inspected by TUV/BV,there is verified video can be check.
Now we are a member of Trade Assurance service
And habve US $72000 Limited.
that is new service provided by alibaba
which can provides buyers with a number of trade safeguards protect buyers’ payment to suppliers,
and to ensure suppliers fulfill their obligations regarding order delivery time and product quality".
Then no worries to make order with us via Trade Assurance.
4sets/20'container
10set'container for the 4wd mini backhoe loader
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
bobocat skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
For more info about Hysoon loaders,please do not hesitate to contact
