Gas engine new agricultural machines name HYSOON articulated compact mini loader
- 100 Set / Sets per Month
- Qingdao China
- T/T Credit Card
Product Details
| Brand Name: | HYSOON | Place of Origin: | Shandong, China | Type: | Garden Cultivator |
| Use: | compact mini loader | Certification: | CE EPA | ||
| Warranty: | 1 Year | Weight: | 940 | Dimension(L*W*H): | 2100*1200*2045 |
| Power Type: | Gasoline | Condition: | New |
Product Description

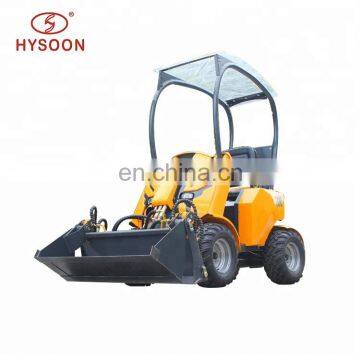

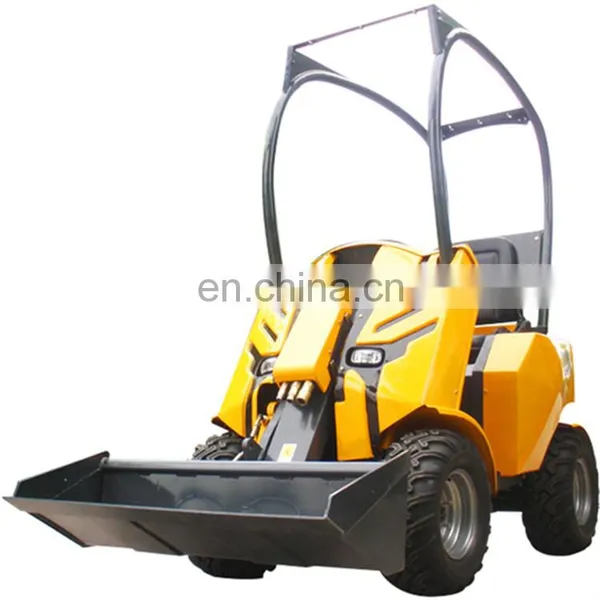

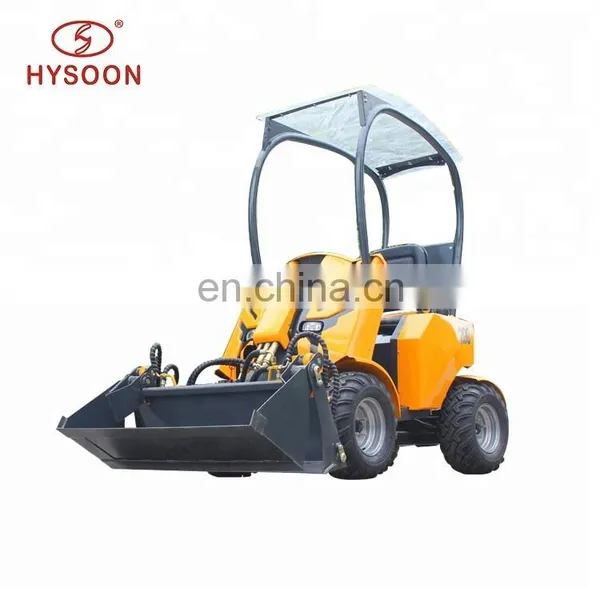

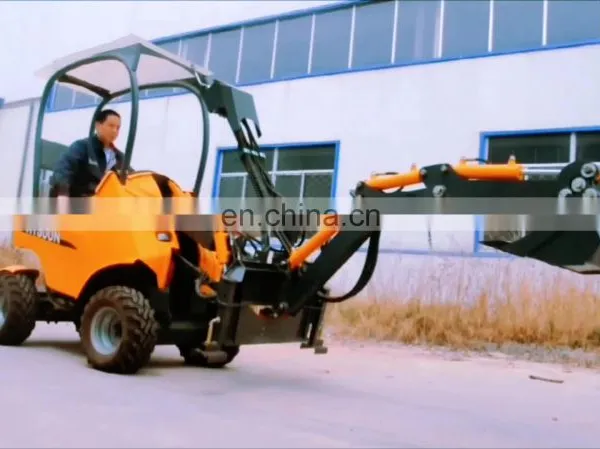

Gas engine new agricultural machines name HYSOON articulated compact mini loader
Specifications
Articulated Mini Wheel Loader
Hydraulic joystick control system
Agile Movement, Easy control
Flexible Operation
3 years global service
• Transmission: Hydraulic transmission
• Control System: Hydraulic system
• Driven: 4 wheels
• Barrtery: 7.5KW
• Tyre:With pneumatized tire
• Motor: Four cycloid Motors
• Hydraulics System:Italy Hydraulic
• Bucket:With Standard Bucket
• System Flow:60l/min
• SIZE (L*W*H):2424*970*2020MM
• Bucket Capacity:0.15cbm/260kg
• Operating Weight:840kg
Technical Specification:
| Engine | Rated Power | 17.1Kw(23Hp) | ||
| Rotating speed(rpm) | 3600 | |||
| Noise (dB) | ≤85 | |||
| Fuel tank Capacity(L) | 22 | |||
| Hydraulic Oil Tank Capacity(L) | 21 | |||
| Hydraulic System | Pressure(Mpa) | 17.5 | ||
| Cycle Time (s) | Raise | Dump | Lower | |
| 3.8 | 1.34 | 2.38 | ||
| Capability Parameter | Operating Load (Kg) | 260 | ||
| Bucket Capacity (m3) | 0.15 | |||
| Max pushing power(KN) | 5 | |||
| Max Lifting power(KN) | 4.8 | |||
| Speed (Km/h) | 0~8 | |||
| Operating Weight(Kg) | 840 | |||
| Model of Tyre | 21×8.00-10TR | |||
Dimension (mm)
| Max Working Height | 1360 |
| Max Dump distance | 558 |
| Overall width to outside of tyre | 978 |
| Bucket width | 980 |
| Ground clearance(F) | 160 |
| Departure angle(α) | 40° |
| Dump angle at max height(γ) | 26° |
| Rollback of bucket on ground(θ) | 48° |
| Mini Turn Radius | 2320 |
Features:
# Very compact size for a sit on loader. Hydrostatic transmission and articulated steering guarantees smooth, flexible and precise driving.
# Very precise controls in both low and high drive speed due to the two pedals for selecting the driving direction and speed. This makes driving safe and quick to learn.
# It is decidedly smaller than its predecessors, yet more flexible, easier control, more eye-catching than ever.
# By one special quick attach for the bucket (attachment), it can also attach a wide variety of attachments for a variety of different jobs and have outstanding service and support.
Applications of HY200 new agricultural machines name HYSOON :

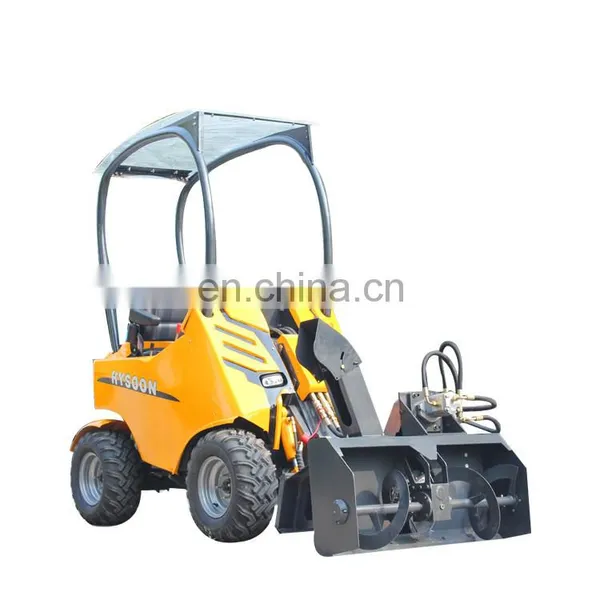

Small width, the loader can also work in narrow space, such as in door, duckey, hennery, cave, alley,land sorting, garden,ground care, snow removal, mining, recycling,landscaping, construction, companies,property maintenace,dairy industry,farm, Livestock farm , waste(animal waste, municipal solid waste, life garbage) removal, ditching, truck loading ,tree planting and so on.
FOR LCL
We use plywood & iron frame package, It’s very strong to protect the products during the transport.
FOR FCL
we fix the machine in the container
20 Feet container can load 5 PCS HY200 Mini Articulated Wheel Loaders.
40 feet container can load 10 PCS HY200 Mini Articulated Wheel Loaders.
Warmly welcome to visit our factory:

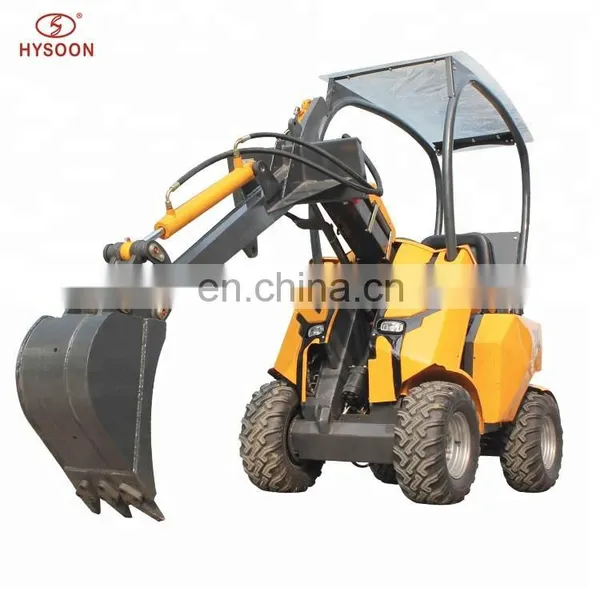

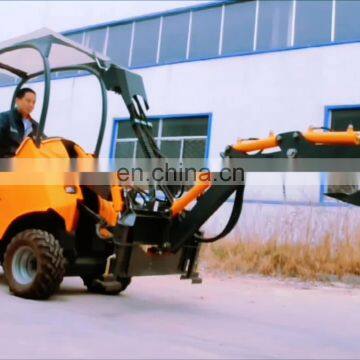

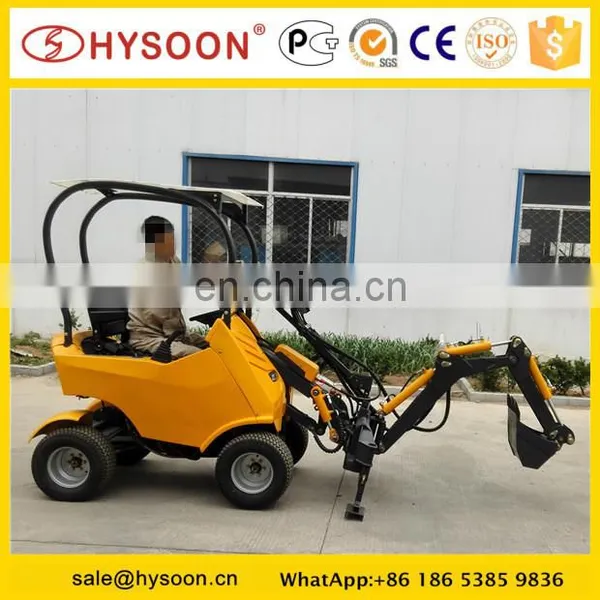

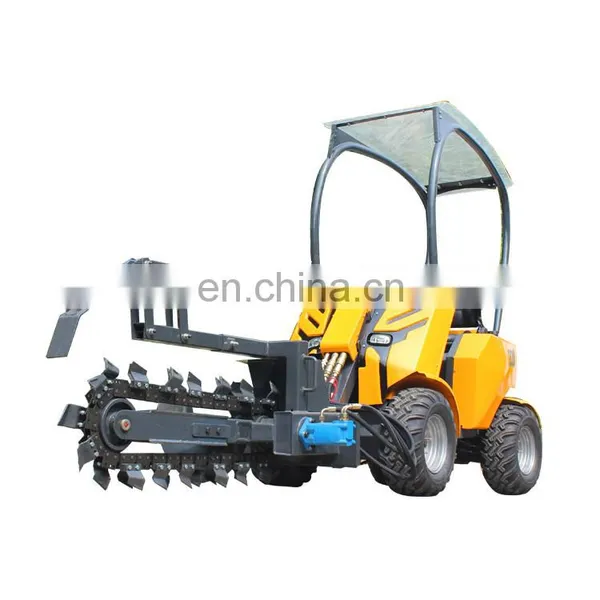

TAIAN HYSOON MACHINERY CO.,LTD focus on research and manufacture the small and medium-sized construction machinery. Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have got CE and GOST Certification,and exported world-wide,for example Germany,Sweden,Australia, America. And there is more than 60 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
We concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
We attended lots of professional international exhibitions:
1. Conexpo-Con/Agg2011
2. GIE+EXPO Louisville
3. Baumain Munich
4. AGRITECHNICA 2011
5. Baumain Shanghai
6. Canton Fair
* 1 year warranty. (Engine enjoys 3 years International warranty service.)
* 24h hours technical support.
* Calling or Door to door service.
* Supply High Quality Small Loader for You At Reasonable Price.
Why Choose Us?
1. We are the 1st manufacturer of mini skid steer loader and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes, we can.
