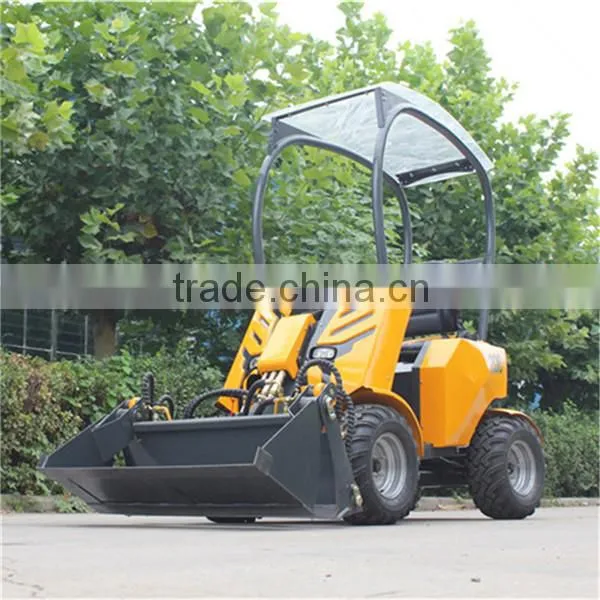

Compact Cheap backhoe articulated loader
full hydraulic
4 wheel drive
multifunction use
Powerful pulling force and four wheel drive means that you can tow big loads with the Compact Cheap backhoe articulated loader.Thanks to the lift arm it also has excelent loading capabilities-be it earthmoving,snow removal or any similar job.Powerful auxiliary hydraulics enable an extensive range of attachments,making Compact Cheap backhoe articulated loader excel in efficiency and variety.
Compact Cheap backhoe articulated loader is the all round multi-task machine for yards,gardens,parks,summer houses and other green areas.It does winter maintenance jobs like snow removal,salt and sand spreading etc.effortlessly-leaving your time to rellax and admire your handwork
Compact Cheap backhoe articulated loader makes building and maintenance of yards a delight.It is the perfect machine for preparation and maintenance of gardens,lawns and vegetable gardens.When you have Compact Cheap backhoe articulated loader in your yard,you have a hobby that makes sense.
Compact Cheap backhoe articulated loader for sale Drawings and Spec
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
| Max Pin Height (B) | 1755mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |

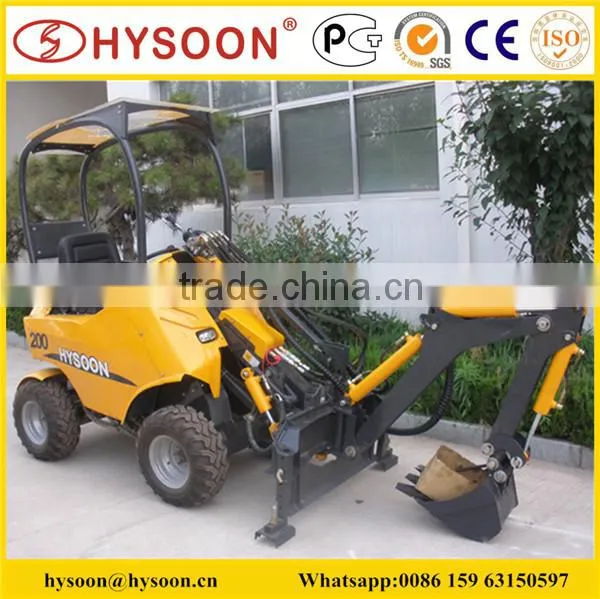

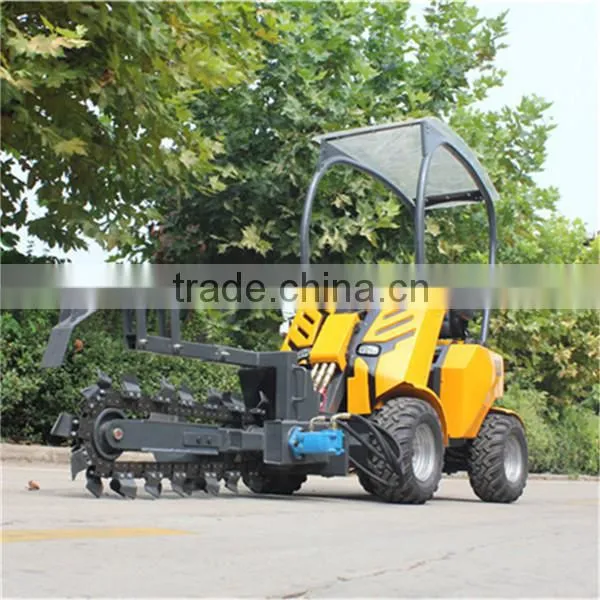

There is more loader attachments for Compact Cheap backhoe articulated loader
If LCL,the Compact Cheap backhoe articulated loader will be packed by steel pallet,covered by ply-wood.
If FCL,the Compact Cheap backhoe articulated loader will be loaded into the container directly,fasten well,
5sets/20'container,and 10sets/40container.
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Compact Cheap backhoe articulated loader have got CE Certification
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the small construction machinery.
We always focus on mini construction equipment,now have a series products.
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
For further info about any Hysoon products,please do kindly contact
