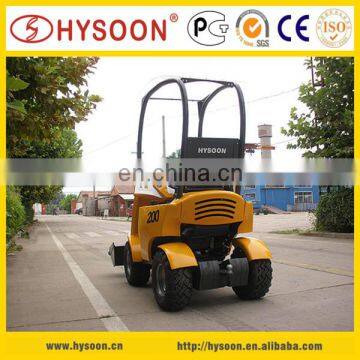

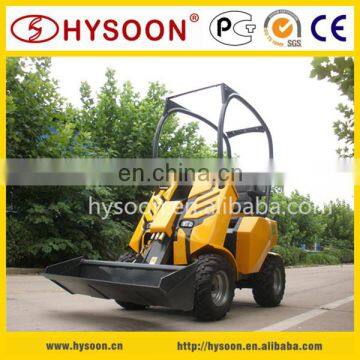

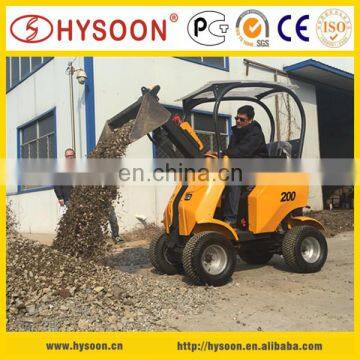

Chinese Hysoon HY200 miniloader, 4wd articulated mini wheel loader multifunctional
-
Articulated steering chassis, hydrostatic transmissin, 4 wheel driven, makes you drive more comfotable
-
23hp American Briggs&Stratton gasoline engine

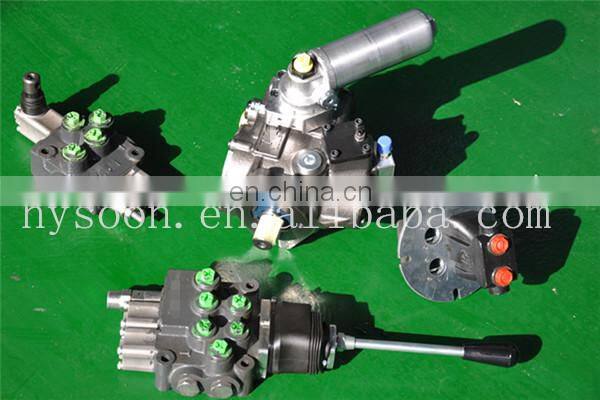

- Impoted Italian hydraulic parts
-
-
Quick hitch joint,change different attachments quickly and easily.

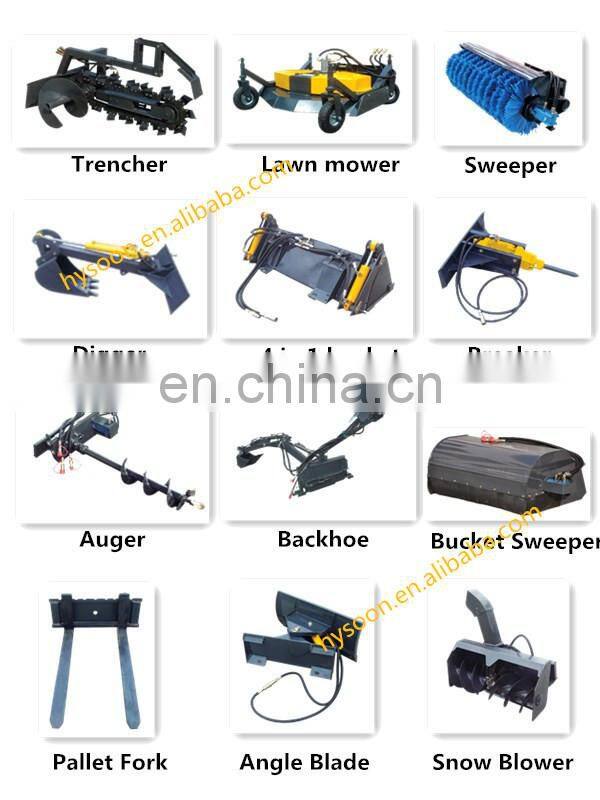

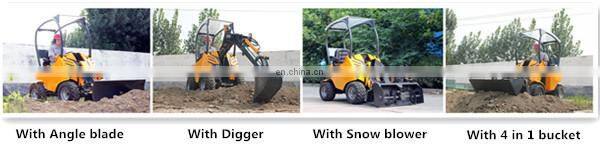

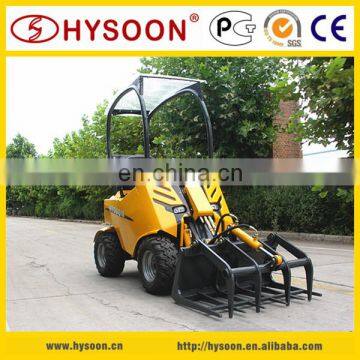

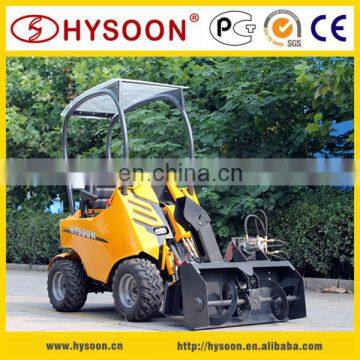

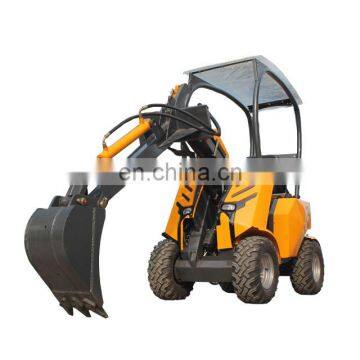

- One loader for multi-function.HY200 mini loader can attach different attachments, such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
1)Size | |
Dimension(L*W*H) |
2430mm* 1080mm* 2045mm |
Max pin height(B) |
1755mm |
Max dumping height(C) |
1295mm |
Max point dumping distance(D) |
430mm |
Ground clearance(F) |
210mm |
Wheel base(G) |
1207mm |
Bucket Width |
1150mm |
Total Length without Bucket(J) |
2015mm |
Departure angle(α) |
40° |
Bucket discharge angle |
37° |
Turn Radius forward Turning |
2030mm |
2)Engine | |
Rated Power (KW) |
17.15KW(23HP) |
Type |
Gasoline |
3)Hydraulic System | |
Pressure |
17Mpa |
Operating Load |
260kg |
Bucket Capacity |
0.15m³ |
Travel Speed |
0-8km/h |
Weight |
900kg |
Fuel tank capacity |
27.45L |
Hydraulic oil tank capacity |
21L |
Max traction |
5KN |
Max Lifting force |
4.6KN |
- 1 year warranty.( Engine warranty is 3 years, International warranty service)
- 24hours technical support
- Calling or door to door service
- Supply high quality small wheel loader for you at reasonable price
- Accept your customization

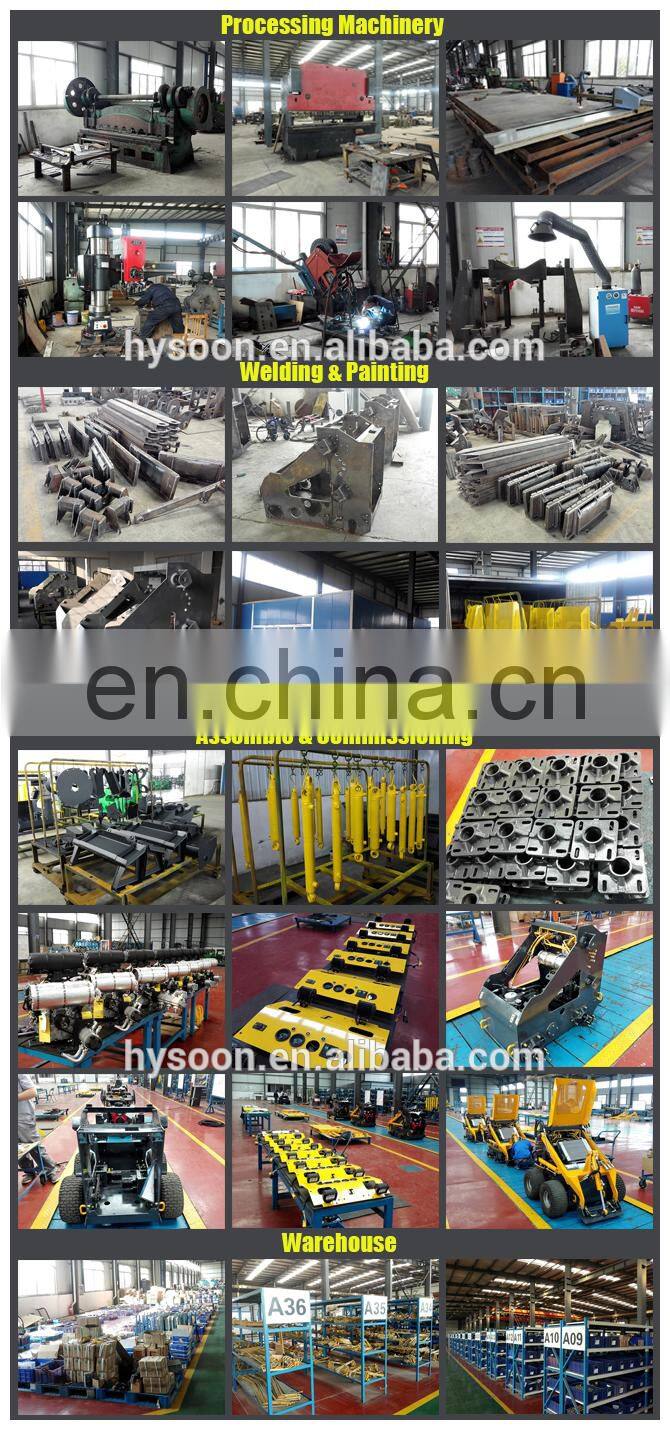

Taian Hysoon Machinery Co.,Ltd is the leading professional manufacturer specializing in mini skid steer loader and skid steer attachments in north of China for 7years and get rich experience.
Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engineering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.
Our products are not only popular in domestic markets, but also have been exported to America, Canada, Australian, Argentina,Russia, etc. Due to the high quality, we received the extensive approval and trust from our clients all over the world.
Why us?
1. We are the first manufacturer of mini loader with accessories in China.
2. we have stong technical support , Professional desgin team, can make sepcial design for you.
3. High Quality & Reasonable Price. The accurate product positioning.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .
Our Warranty?
1. supply parts for free if damage within 1 year warranty time .
2. Engineers are available to service machinery overseas
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor In Australia. And We are widely recruit dealers around the world.
If you want to be one of them, please contact us.
Can we accept OEM?
Yes, we can
Contact us by below message window.
