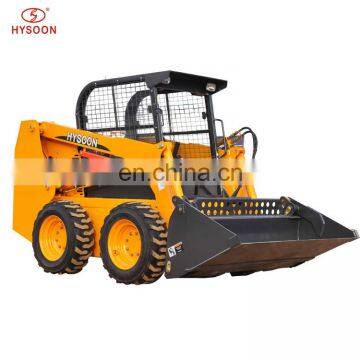

China HYSOON cheap HY700 skid steer for sale
1.Main specification :
Engine: Diesel engine--498BPG,60hp
Pump: Import American SAUER pump
Loading capacity:700KG
Bucket capacity:0.39cbm.
various attachments.

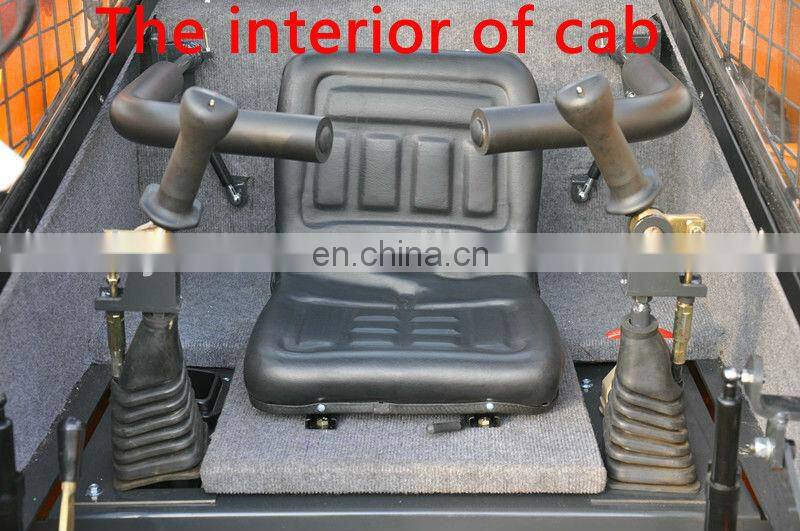

Closed cab
cheap skid steer |
|
|
||||
|

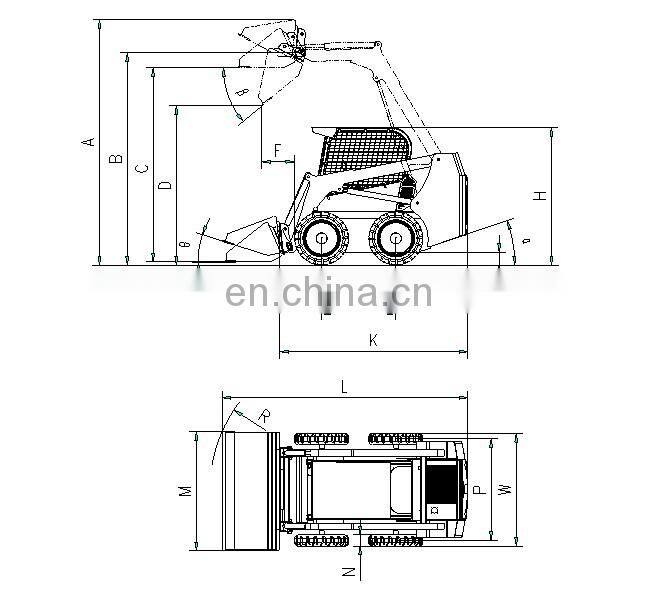

Item |
Data |
|
|
Item |
Data |
1 |
Max working height(A) |
3490mm |
|
1 |
Loading capacity |
700KG |
2 |
Max pin height(B) |
3028mm |
|
2 |
Weight |
2860kg |
3 |
Max height on bucket level state(C) |
2814mm |
|
3 |
Engine |
Diesel engine |
4 |
Max dumping height (D) |
2266mm |
|
4 |
Rated speed |
2500r/min |
5 |
Max Dumping distance(F) |
437mm |
|
5 |
Type of engine |
Four cylinder, water-cooling, four-stroke |
6 |
Wheel base(G) |
1044mm |
|
6 |
Rated power |
45KW |
7 |
Total height(H) |
1979mm |
|
7 |
Fuel consumption rate on standard |
less 240g/KW·h |
8 |
Ground clearance(J) |
196mm |
|
8 |
Fuel consumption rate on max torque |
less238g/KW·h |
9 |
Overall length without bucket(K) |
2621mm |
|
9 |
Noise |
less 117dB(A) |
10 |
Total length(L) |
3400mm |
|
10 |
Generator power |
500W |
11 |
Skip width(M) |
1720mm |
|
11 |
Voltage |
12V |
12 |
Total width(W) |
1665mm |
|
12 |
Storage battery |
105AH |
13 |
Tread width to center line (P) |
1425mm |
|
13 |
Speed |
0-10 Km/h |
14 |
Tire’s thickness N) |
240mm |
|
14 |
Drive mode |
Hydrostatic four-wheel drive |
15 |
Departure angle(α) |
19° |
|
15 |
Tire |
10-16.5 |
16 |
Bucket dump angle(β) |
41° |
|
16 |
Hydraulic pump flow for running |
110L/min |
17 |
Retracting angle(θ) |
18° |
|
17 |
Hydraulic pump flow for working |
50L/min |
18 |
Turn radius(R) |
2056mm |
|
18 |
System pressure |
15MP |
|
|
|
|
19 |
Fuel tank capacity |
103L |
|
|
|
|
20 |
Hydraulic oil tank capacity |
63L |
|
|
|
|
21 |
Motor |
Big torque motor |
|
|
|
|
22 |
Piston double pump |
America brand |

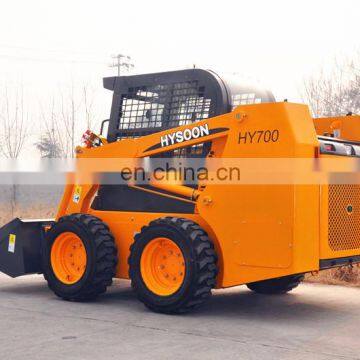

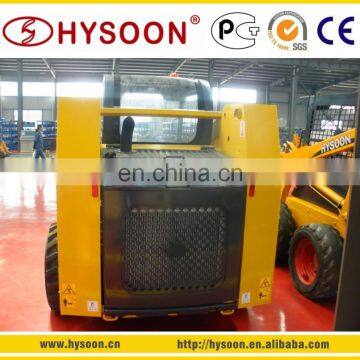

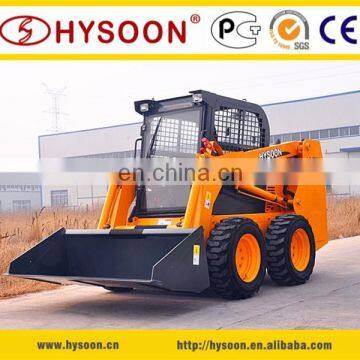

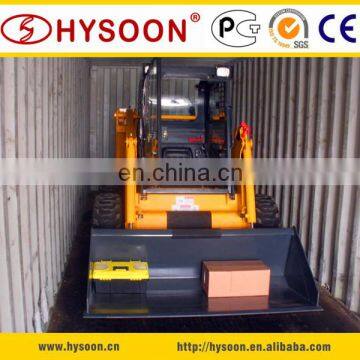

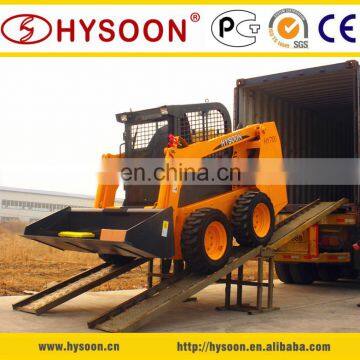

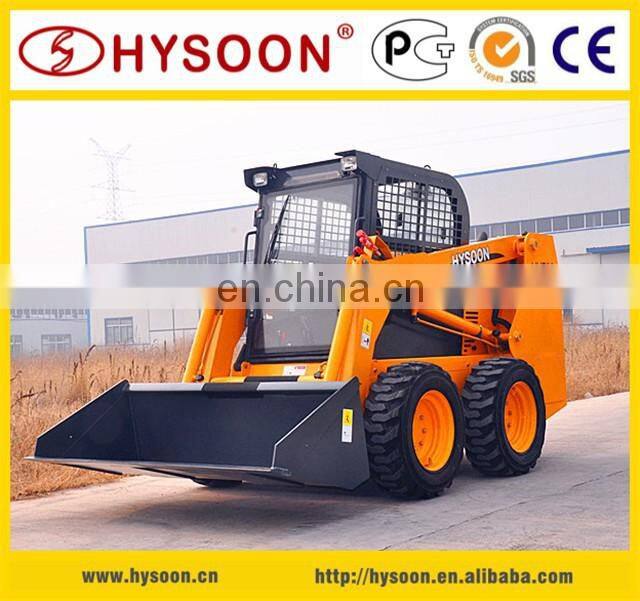

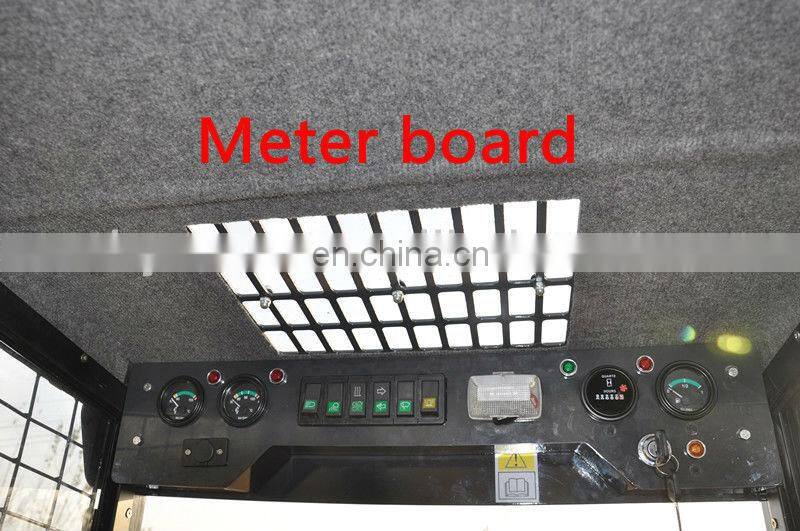

2. cheap skid steer Pictures :
3. cheap skid steer prodution flow :
cheap skid steer Exhibition :
We attended lots professional exhibitions , for example :
Hannover Agritecnica show in Germany, Shanghai Bauma show ,ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on .
5.Warmly Welcome you to visit our factory !
