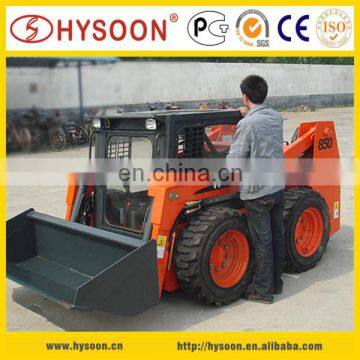

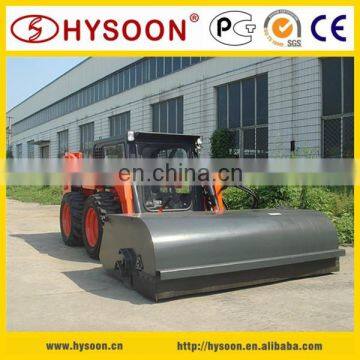

1482mm Low height skid steer loader
1.HY850 skid steer loader

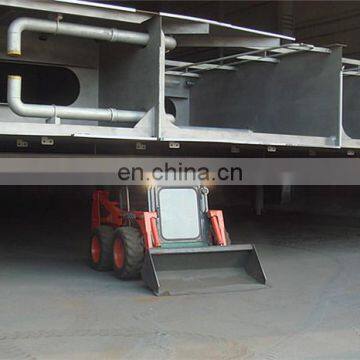

HY850 is a low height skid steer loader, height is 1482mm, It can enter into low environment for working, such as shipyard sand dust blasting chamber, cave, tunnel, underground and so on. 360º pivot skid steer, reduce the space limitations of work. Closed cab & good vision.850kg load capacity, 0.39 cube meter bucket capacity.Widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so on.
2. Main Specification:
| |
1)Size | |
Dimension(L*W*H) |
3300 mm * 1678mm * 1482 mm |
Length |
3300mm |
Width |
1678mm |
Height |
1482mm |
Bucket Width(K) |
1720mm |
Max Working Height |
3660mm |
Max Dumping Height |
2220mm |
Max Dumping Distance |
300mm |
Total Length without Bucket |
2600mm |
Turn Radius forward Turning |
2090mm |
2)Engine | |
Rated Power (KW) |
45KW(60HP) |
Type |
Diesel |
Rotating Speed |
2500rpm |
3)Hydraulic System | |
Pressure |
14.2Mpa |
Operating Load |
850kg |
Bucket Capacity |
0.39m³ |
Travel Speed |
0-9.6km/h |
Weight |
2840kg |
Tyre Model |
10-16.5 |
4)Configuration | |
Engine |
60hp diesel engine Optional: Perkins engine |
Pump |
U.S Sauer piston pump |
Tires |
With engineering tires Optional: Solid tires |
| |
3. Features | |
|
1. Hy850 skid steer loader is specially new designed for any low height environments, Such as shipyard, shipside, ship cabin, cave and chicken sheds, tunnel, undergroud. 2. Its height is 1482mm which doesn't influence the operator's line of sight. It can enter into low environment easily, easy to work, avoid labor and trouble. 3.Full enclosed cab is utilized to avoid dust damage to operator during operation. 4.Equipped with fans and optional heater which make operation comfortable. 5.The loader can be opened forward and makes machine's parts easy reach. 6.Operation is convenient, save time and improve efficiency. | |
4. Application | |

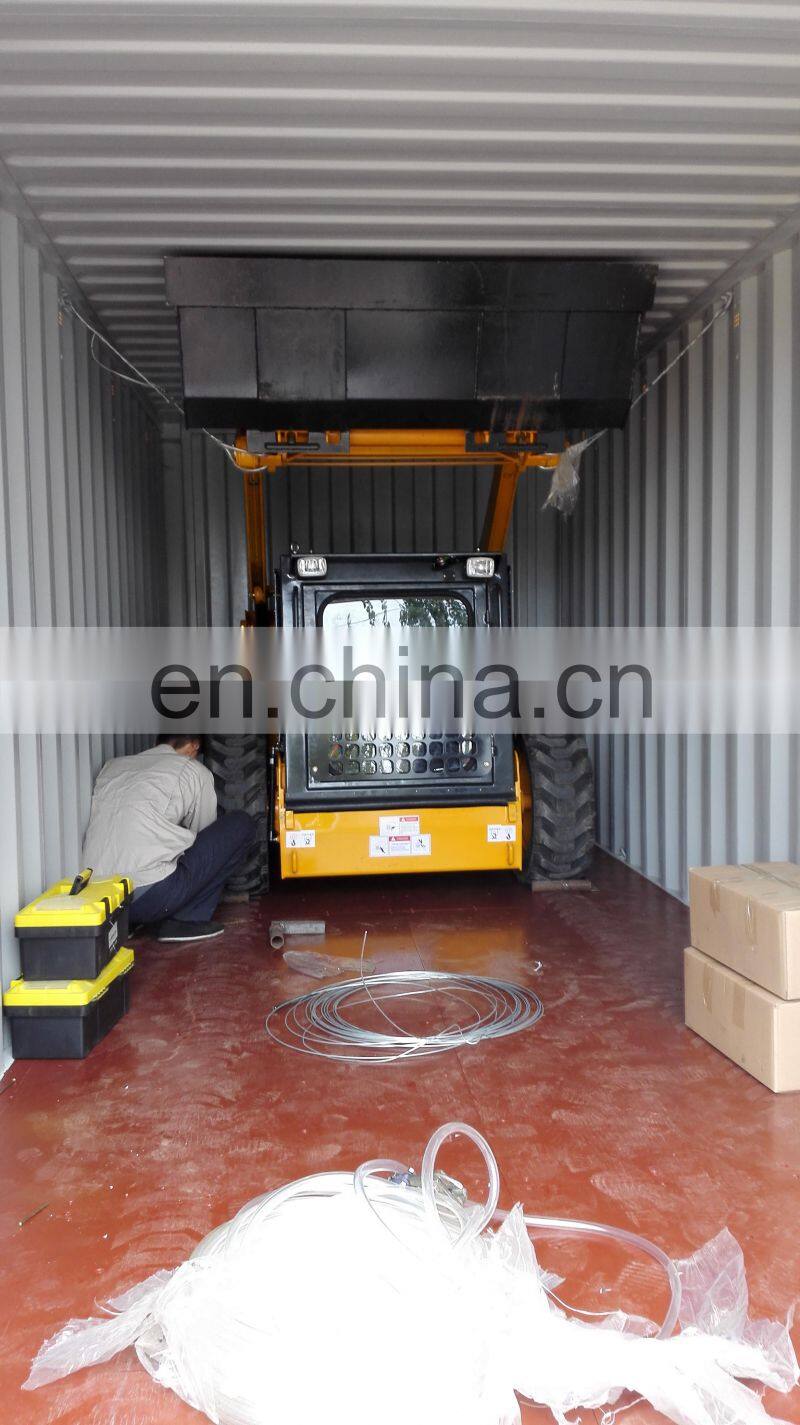

1* 20' Container: 2 sets of HY850 skid steer loaders.
1* 40'' Container: 4 sets of HY850 skid steer loaders.
Related products
Certifications: CE, GOST,ISO9001,SGS, Design Patent,Utility Model Patent.
1). We are the leading Manufacturer of Skid Steer Loaders in China.
2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Provide Technical Support for Life.
3. Do We have Distributors?
In Australia has branch company. And we are widely recruit Distributors Around the World.
4.Can We Support OEM?
Yes, we can.
