hysoon compact mini excavator prices
Engine:Briggs & Stratton Petrol Engine
• Tyre:Chevron tire
• Motor: Low speed high torque motors
• Hydraulics Pumps: Gear Pump
• Bucket:Plain
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-5.5km/h
• Size ( length *width *height):2206*1033*1205mm
• Bucket capacity:0.15cbm/200kg
• hysoon compact mini excavator prices Operating weight:940kg
General description
hysoon compact mini excavator prices is without doubt one of the most versatile pieces of construction equipment available on the market today. Skidsteers, and Mini skid steers with their compact size, maneuverability, and ability to easily switch among a huge range of different attachments makes them an invaluable tool.
The hysoon compact mini excavator prices consists of a rigid frame with lift arms that are used to attach a wide variety of attachments for a variety of different jobs.
hysoon compact mini excavator prices Attachments
There are numerous mini Skid Steer loader Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the hysoon compact mini excavator prices, chances are there is an attachment specific to that task.
Broad field-of-use.
It can be used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other industries.
OUR COMPANY work hard to ensure the hysoon compact mini excavator prices are easily serviceable.
hysoon compact mini excavator prices Below
| Engine | Rated Power | 17.1Kw (23HP) | ||
| Rated Speed | 3600 rpm | |||
| Noise | <=95Db | |||
| Hydraulic system | Hydraulic Pressure | 17Mpa | ||
| Cycle time | Raise | Dump | Lower | |
| 4.27s | 1.34s | 3.31s | ||
| Load capacity | 200kg | |||
| Bucket Capacity | 0.15cbm | |||
| Max Lifting Force | 375kg | |||
| Speed | 0-5.5km/h | |||
| Total Weight | 890kg | |||
| Tyre model | 18*6.5-8 | |||
| Item | Data |
| Max Working Height (A) | 2143mm |
| Max Pin Height (B) | 1884mm |
| Max Dump Height (C) | 1488mm |
| Dump Distance at highest point (D) | 348mm |
| Bucket dump angle | 30degree |
| Bucket collectiong angle | 25degree |
| Departure angle | 11degree |
| Total Height (H) | 1233mm |
| Ground Clearance (F) | 118mm |
| Wheelbase (G) | 636mm |
| Length without bucket (J) | 1752mm |
| Total Width (W) | 1160mm |
| Bucket Width (K) | 1150mm |
| Total Length (with bucket) (L) | 2206mm |
| Turning Radius | 1307mm |

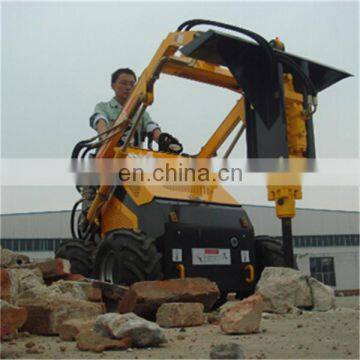

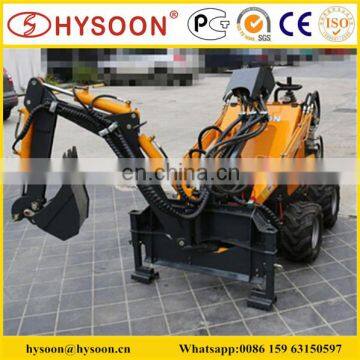

More pictures of hysoon compact mini excavator prices

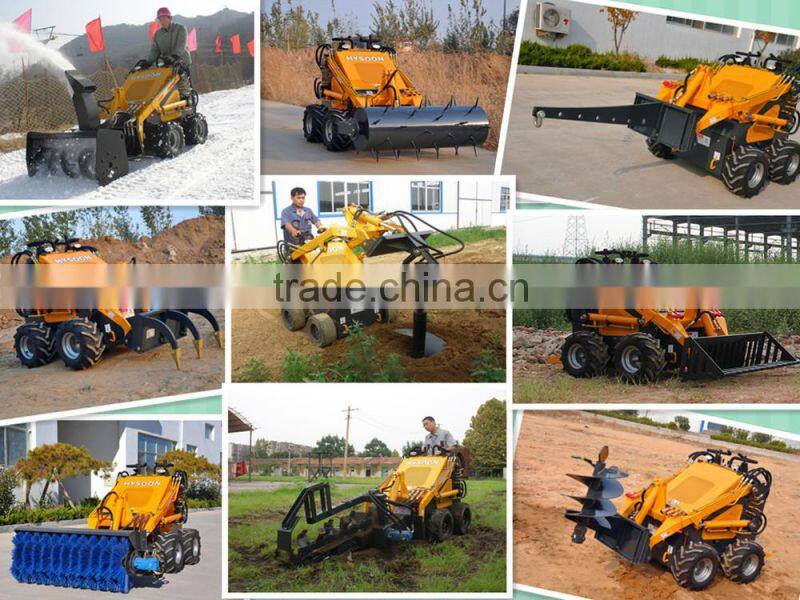

More Attachments for hysoon compact mini excavator prices
hysoon compact mini excavator prices relation products below,
hysoon compact mini excavator prices detail packing&shipping method as below,
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
HY380 mini skid steer loader,
HY280 Mini digger,
HY200 articulated mini loader,
HD10L 4wd mini loader,
HY700 skid steer loader like bobcat,
HY850 skid steer loader which is special height design,only 1482mm height,
HY1000 skid steer loader with 1000kg load capacity,and big flow'
FD350 mini dumper is the smallest size,
HD05 mini dumper,can realize electric power driving,
HD10 wheel dumper is 4 wheel drive.
And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
Taian Hysoon Machinery Co.,Ltd. Products Range
For further info about any Hysoon products,please do kindly contact
