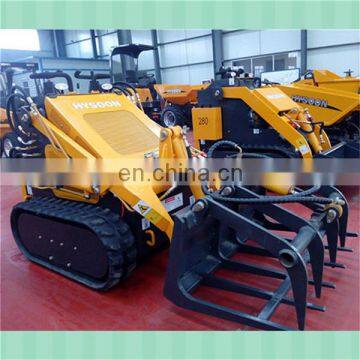

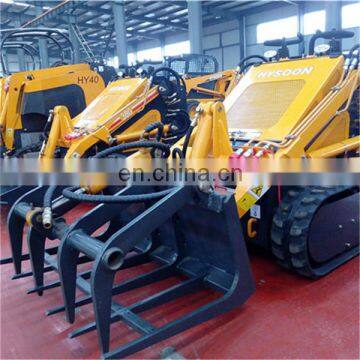

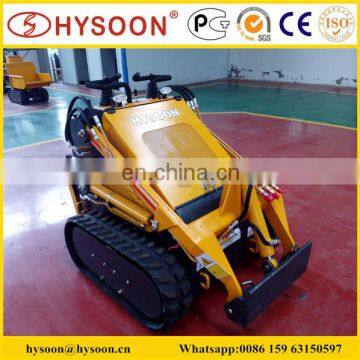

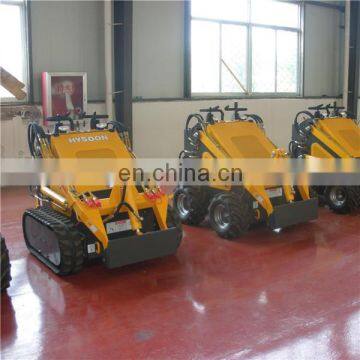

Crawler walk behind mini skid steer loader for garden
Briggs&Stratton Engine
2 pump hydraulic system
3 Auxiliary outlets
Quick hitch System
multifunction use
23HP Briggs&Stratton gasoline engnie supply strong power to the Crawler walk behind mini skid steer loader for garden
Think of all the tasks you do everyday.Now image how much faster you could do them with a Crawler walk behind mini skid steer loader for garden.The versatile Crawler walk behind mini skid steer loader for garden is an efficient alternative to hand labor,skid steer loaders and compact wheel mini skid steer loaders-especially in tight spots other equipment can’t reach.And the light footprint is gentle on turf.It’s a simple way to boost productivity and expand your business-and now our full lineup offers more choices than ever.Whether you need wheels or tracks,gas or diesel,or radial lift or vertical lift capabilities,there’s a Hysoon mini skid steer loader that’s right for you.
Access confined spaces you never thought possible with a Crawler walk behind mini skid steer loader for garden.These models offer zero-turn capability,along with a shorter length that’s easy to load on a trailer.You also get reliable hydraulic power to use a wide range of attachments.If you do a lot of tasks in tight spaces or on hard surfaces,these are the models for you.
The Crawler walk behind mini skid steer loader for garden is more than just a ‘mini loader’. There are a wide range of attachments available that get the Crawler walk behind mini skid steer loader for garden into a huge variety of jobs.
It is widely used for Hire,Fencing,Industry,Mining,Irrigation,Demolition,Construction,Contractors,
Landscaing,Goverment......
Hysoon wheel mini skid steer loader for sale Drawings and Spec
| Engine | Rated Power | 17.1Kw (23HP) | ||
| Rated Speed | 3600 rpm | |||
| Noise | <=95Db | |||
| Hydraulic system | Hydraulic Pressure | 17Mpa | ||
| Cycle time | Raise | Dump | Lower | |
| 4.27s | 1.34s | 3.31s | ||
| Load capacity | 200kg | |||
| Bucket Capacity | 0.15cbm | |||
| Max Lifting Force | 375kg | |||
| Speed | 0-5.5km/h | |||
| Total Weight | 890kg | |||
| Tyre model | 18*6.5-8 | |||
| Item | Data |
| Max Working Height (A) | 2143mm |
| Max Pin Height (B) | 1884mm |
| Max Dump Height (C) | 1488mm |
| Dump Distance at highest point (D) | 348mm |
| Bucket dump angle | 30degree |
| Bucket collectiong angle | 25degree |
| Departure angle | 11degree |
| Total Height (H) | 1233mm |
| Ground Clearance (F) | 118mm |
| Wheelbase (G) | 636mm |
| Length without bucket (J) | 1752mm |
| Total Width (W) | 1160mm |
| Bucket Width (K) | 1150mm |
| Total Length (with bucket) (L) | 2206mm |
| Turning Radius | 1307mm |
There is more loader attachments for Crawler walk behind mini skid steer loader for garden
If LCL,the Crawler walk behind mini skid steer loader for garden will be packed by steel pallet,covered by ply-wood.
If FCL,the Crawler walk behind mini skid steer loader for garden will be loaded into the container directly,fasten well,
8sets/20'container,and 16sets/40container.
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Crawler walk behind mini skid steer loader for garden have got CE Certification
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the small construction machinery.
We always focus on mini construction equipment,now have a series products.
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
For further info about any Hysoon products,please do kindly contact
