800mm small width crawler multifunctional mini skid steer loader for garde800mm micro width flexible crawler mini digger
1. Engine: American Briggs& Stratton gasoline (petrol) Engine, 23HP, 3 years international warranty
2. Pump: Gear pump. Italy joystick (servo) pump, handle control for optional.
3. Valve: Italy Multi-way Valve
4. Size(L* W* H)(mm): 2210* 800* 1309
5. Quick hitch system makes fastening attachments quick and easy.
6. Width: 800mm. The design can let the loader into small space for working, even your indoor.
7. Track type can fit for muddy,soft and normal environment.
8. With folded back pedal plate, walk behind operating.

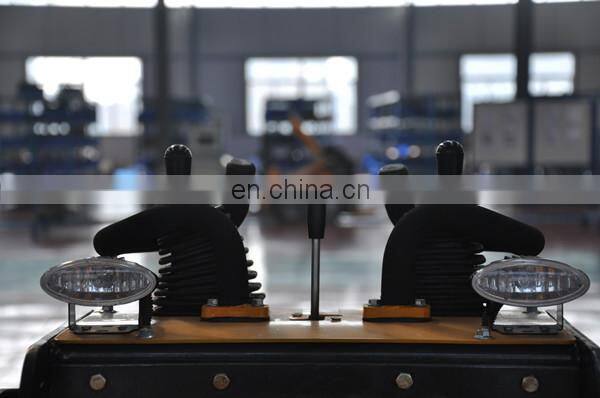

9. Hydraulic operating handles. Control walking, running, working arm, bucket. Operate comfortable. Also joystick handle can be chosen.

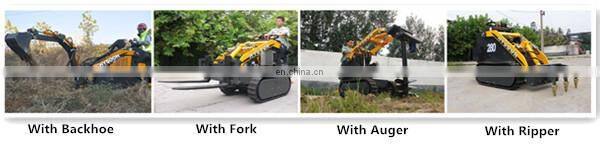

10. There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
| Item | Data |
| Max Working Height (H3) | 2363mm |
| Max Pin Height (H2) | 1800mm |
| Max Dump Height (H1) | 1412mm |
| Dump Distance at highest point (E) | 533mm |
| Bucket dump angle | 29degree |
| Bucket collectiong angle | 36degree |
| Departure angle | 13degree |
| Total Height (H) | 1302mm |
| Ground Clearance (H1) | 143mm |
| Wheelbase (L1) | 652mm |
| Length without bucket (L3) | 1752mm |
| Total Width (B2) | 800mm |
| Bucket Width (B1) | 820mm |
| Total Length (with bucket) (L) | 2200mm |
| Turning Radius | 1440mm |
| Engine | ||
| rated power | 23HP | |
| rotating speed | 3600 | |
| noise | <=95 | |
| hydraulic system | ||
| pressure | 17 | |
| working time | ||
| raise | 4.27 | |
| dump | 1.34 | |
| lower | 3.31 | |
| operating load | 165kg | |
| bucket capacity | 0.15m^3 | |
| max lifting force | 375kg | |
| travel speed | 0-5.5km/h | |
| operating weight | 855kg | |
LCL: steel fram&plywood packing.
FCL: One 20GP container can load 8 sets. One 40GP container can load 16 sets.
- 1 year warranty.(Engine warranty is 3 years, International warranty service)
- 24 hours technical support
- Calling or door to door service
- Supply high quality small wheel loader for you at reasonable price
- Accept your customization
Taian Hysoon Machinery Co.,Ltd is the leading professional manufacturer specializing in mini skid steer loader and skid steer attachments in north of China for 10 years and get rich experience.
Complying with the principle of "Credit First and Quality First", we zealously adopt the advanced production technology, use the advanced equipment and implement the advanced management experience in the production of miniature engeering machinery. We manufacture all kinds of miniature engineering machines which have the beautiful appearance, the high quality and bring the comfort and convenience to you during operation.
Our products are not only popular in domestic markets, but also have been exported to America, Canada, Australian, Argentina, Russia, etc. Due to the high quality and best service, we received the extensive approval and trust from our clients all over the world.
Why us?
1. We are the first manufacturer of mini loader with attachments in China.
2. we have stong technical support , Professional desgin team, can make sepcial design for you.
3. High Quality & Reasonable Price. The accurate product positioning.
4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .
Our Warranty?
1. 1 year warranty time .
2. Engineers are available to service machinery overseas
3. Provide technical support for life.
Do we have Distributors?
Yes. And We are widely recruit dealers around the world.
If you want to be one of them, please contact us.
Can we accept OEM?
Yes, we can
Contact us by below message window.
