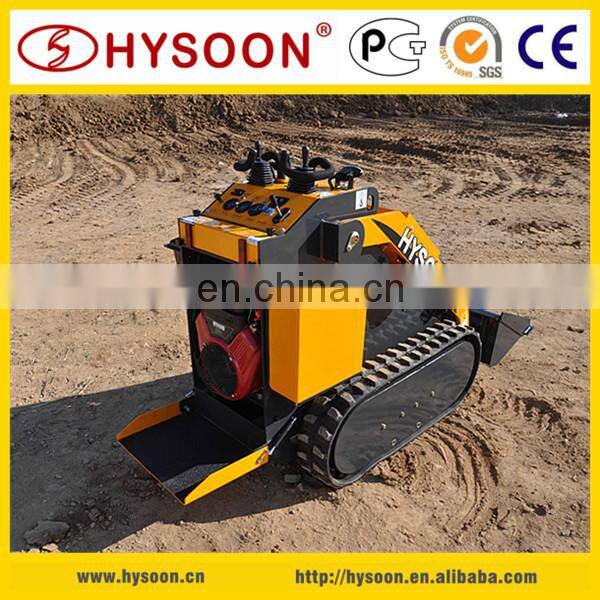

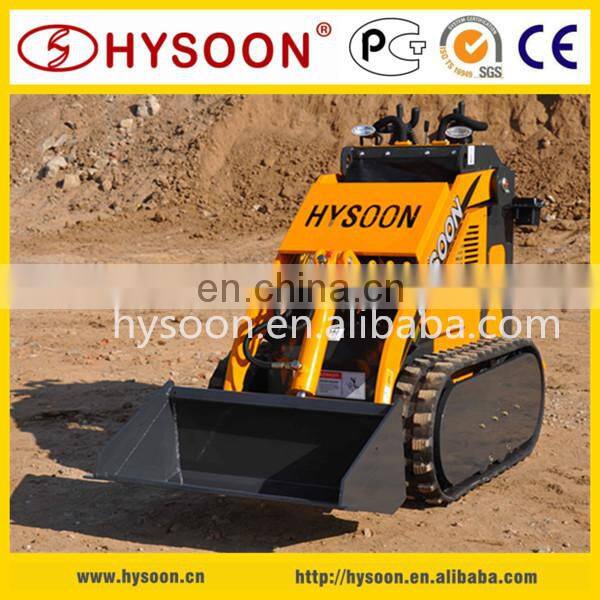

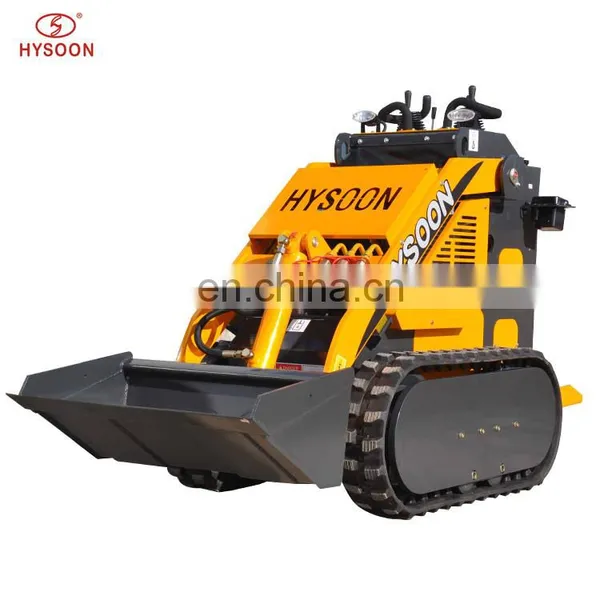

Mini Track skid loader HY280
1. HY280 skid:
HY280 is a versatile mini skid steer loader, 360° skid steer type, Compact body, easy to handle, they can link with different attachments for a variety of job need, widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so on. Hysoon is the 1st manufacturer of mini skid steer loader in China, high cost performance, 12 year technical development, best product for you.
2. Main Specification:
| |
1)Size | |
Dimension(L*W*H) |
2210mm* 800mm* 1309mm |
Length |
2210mm |
Width |
800mm |
Height |
1309mm |
Bucket Width(K) |
820mm |
Max Working Height |
2065mm |
Max Dumping Height |
1386mm |
Max Dumping Distance |
471mm |
Total Length without Bucket |
1778mm |
Turn Radius forward Turning |
1236mm |
2)Engine | |
Rated Power (KW) |
17.15KW(23HP) |
Rotating Speed |
3600rpm |
Noise(Dd) |
≤95 |
3)Hydraulic System | |
Pressure |
17Mpa |
Operating Load |
165kg |
Bucket Capacity |
0.12m³ |
Max Lifting Force |
375kg |
Travel Speed |
0-5.5km/h |
Weight |
855kg |
4)Configuration | |
Engine |
23hp American Briggs& Stratton gasoline engine, 3 year International warranty service. |
Parts |
Imported Italy hydrocontrol valves; |
Tires |
Track or wheeled are for optional |
Optional Configuration |
Italy joystick system, three pump & valves for optional; Diesel engine for optional Solid tires |
Operating |
With a back pedal plate |

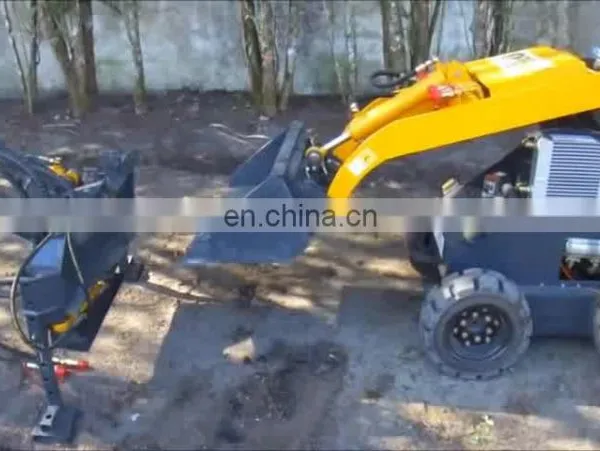

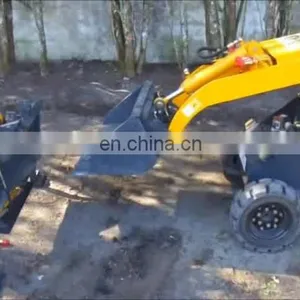

3. Wheeled type and track type are for optional. | |
| |

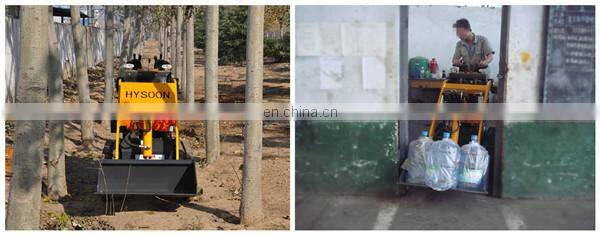

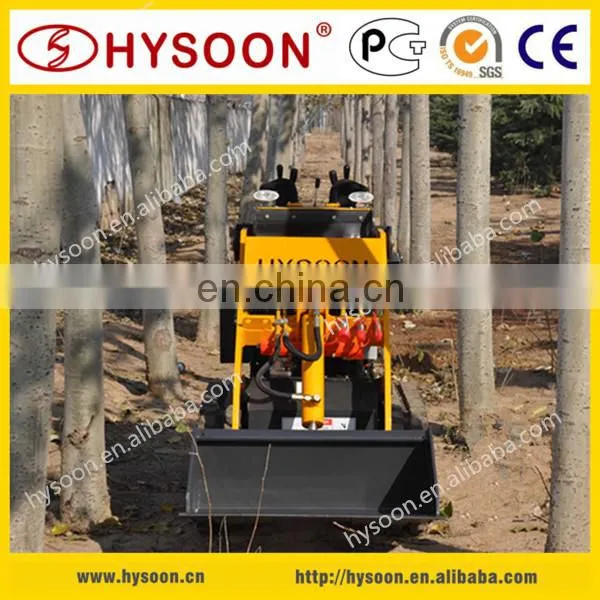

4. 800mm width,can work in very narrow space | |
| |

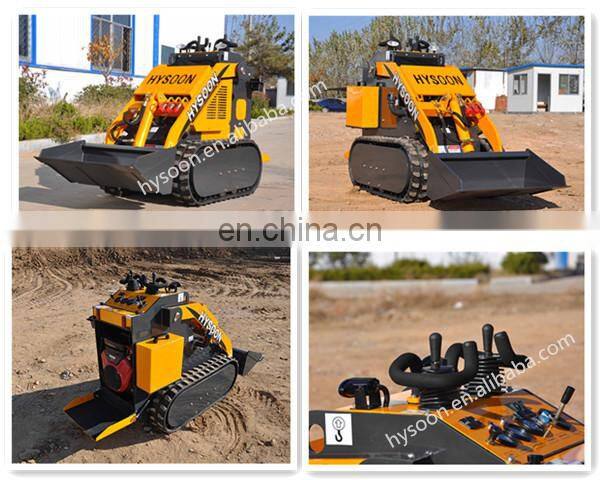

5. Pictures | |
| |

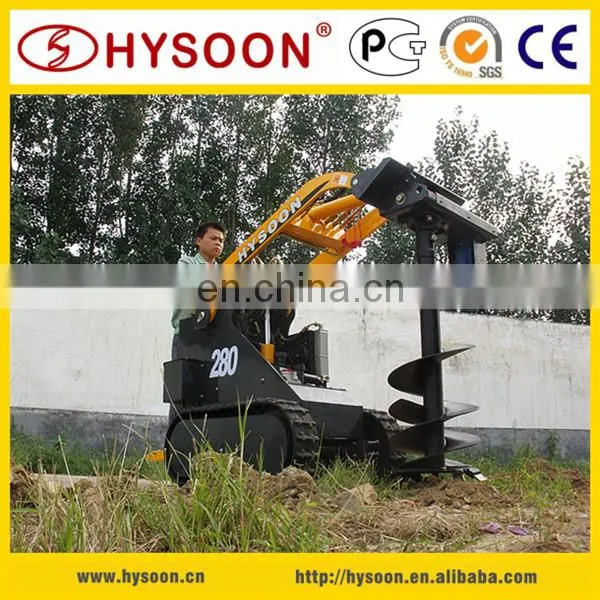

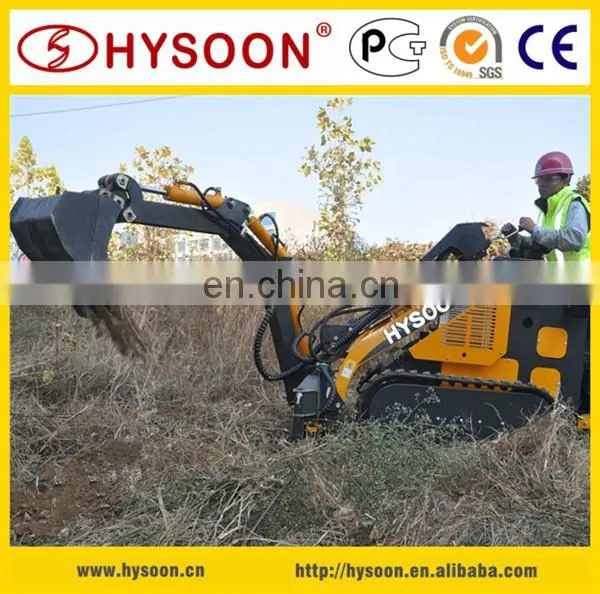

6. Optional Attachments | |
|
| |
LCL: Iron Shelf & Plywood Packing
FCL: 1* 20' Container: 8 sets of HY280 mini skid loaders.
1* 40'' Container: 16 sets of HY280 mini skid loaders.
1. Best Cost Performance.
According to the client's feedback in gobal and our research, we maybe not the lowest price, but quality is leading. Technical development, improvement for these years, get customer consistent high praise.
2. Best service
From Sale to the lifelong maintenance of products. Reply you at the 1st time.
Manufacturer with 12 years Skid Steer Loader experience---Taian Hysoon Machinery Co.,Ltd..
Certifications: CE, GOST,ISO9001,SGS, Design Patent,Utility Model Patent.
1). We are the leading Manufacturer of Mini Skid Steer Loaders in China.
4). Responsible, in Good Faith. To Guarantee Delivery on time. Do Security by Alibaba.
2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Engine Warranty: 3 Years. International Warranty.
3). Provide Technical Support for Life.
3. Do We have Distributors?
Yes. In South Korea. In Australia is branch company. And we are widely recruit Distributors Around the World.
4.Can We Support OEM?
Yes, we can.
Contact:
Magic Ye
Taian Hysoon Machinery Co.,Ltd
Skype: magicye123
Wechat: cnmagicye
qq: 2904281767
Trademanager: cn1510438888
Mob&Whatsapp: 0086 18660826265
