gasoline garden grass cutter machine price

1. Folding pedal designed, driver can stand up the pedal or walk behind to operate machine.
2. Clear instrument panel sign, operating conveniently.

3. Joystick handle optional, operating more comfortable.

4. International warranty engine, enjoy local 3 years free engine maintenance.

5. HY380 mini skid steer loader is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine oil, oi filter, spark plug and so on.

Item

HY380 mini skid steer loader

Wheel Type

Track Type

Max working height(A)

2143 mm

2128 mm

Max pin height (B)

1884 mm

1869 mm

Max dump height(C)

1488 mm

1473 mm

The highest point discharge distance(D)

348 mm

399 mm

Total height (H)

1233 mm

1218 mm

The height from the ground(F)

118 mm

105mm

Wheelbase (G)

636 mm

612mm

No bucket length(J)

1752 mm

1752 mm

Total width (W)

1160 mm

1060 mm

Bucket width (K)

980 mm

980 mm

Total length(L)(with bucket)

2206 mm

2206 mm

Turning radius (R)

1307 mm

1317 mm

Bucket swing angle(β)

55°

55°

Bucket unloading angle(γ)

30°

30°

Opening-closing angle(θ)

25°

25°

Angle of departure(α)

11°

10°

Engine

Rated Power (KW)

17.15KW

Rotating Speed

3600rpm

Noise(Dd)

≤95

Hydraulic System

Pressure

17Mpa

Working Time(s)

Raise

4.27

Dump

1.34

Lower

3.31

Performance parameters

Operating Load

200kg

441Lb

Bucket Capacity

0.15m³

5.33ft³

Max Lifting Force

375kg

827Lb

Travel Speed

0-5.5km/h

0-3.4 mile/h

Operating Weight

890kg

1958lb

Configuration

Optional configuration

Engine

American Briggs&Stratton gasoline engine 23HP.

Kohler gasoline engine 27hp

Pump:

Chinese gear pump, double pump.

Chinese Triple pump; Italian servo pump(joystick)

Valve:

Italian double valve.

Italian triple valve.

Operating Handle:

double hydraulic mechanical handles.

one servo handle & one mechanical handle

Moving way:

wheel type with engineering tires.

wheel type with solid tires; rubber track type

Attachment:

Original with a standard bucket.

various attachments.

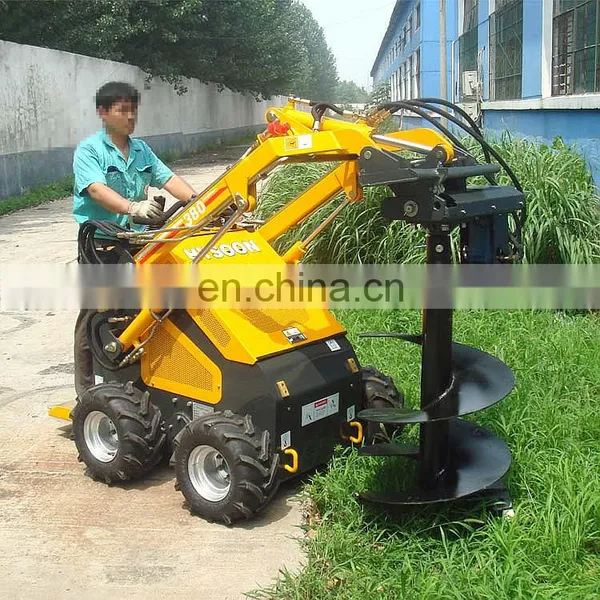

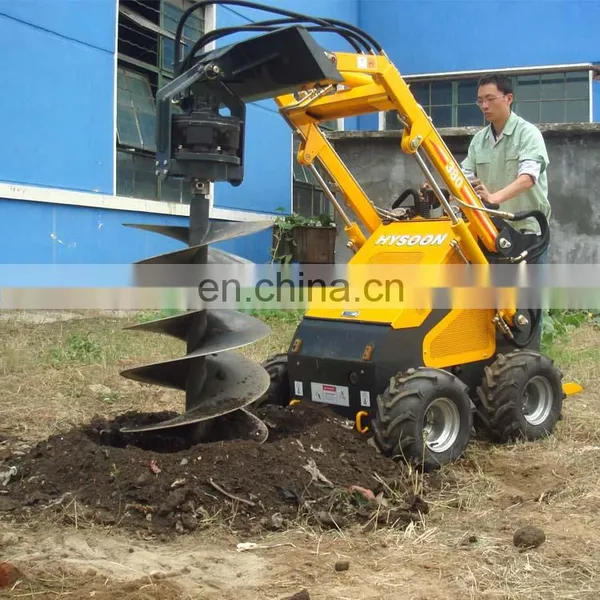

The small ditch digger HY380 is 360 degree pivot steering, turn radius forward turning is 1307mm. It is especially suitable for the operation of narrow areas such as garden, farm, urban infrastructure, road or construction site, workshop, warehouse, wharf, ship deck and even cabin,underground construction tasks.

· Packaging for LCL: steel frame & plywood packaging
