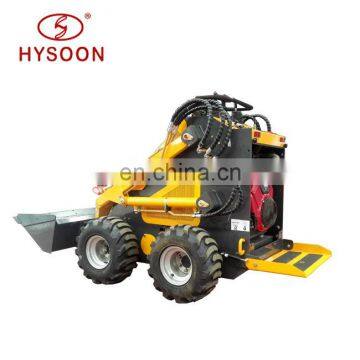

China HYSOON HY380 farm mini loader

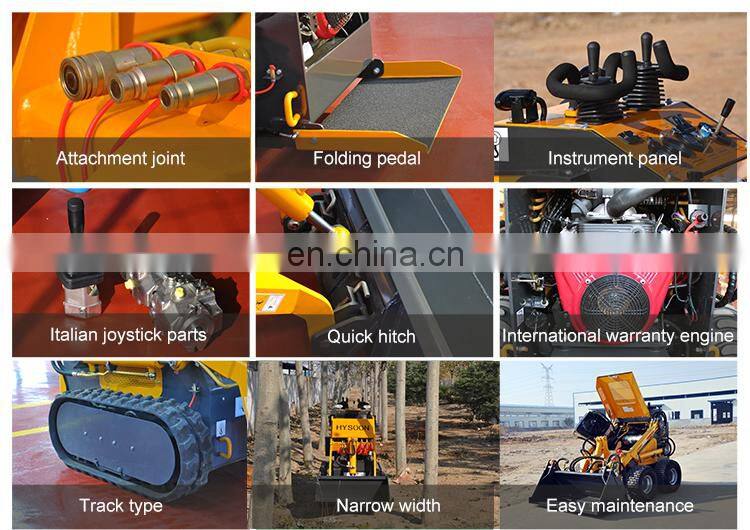

1. China HYSOON HY380 farm mini loader specification :
1. HY380 farm mini loader engine : American Briggs&Stratton 23HP/ Kohler engine
2. HY380 farm mini loader pump : double gear pump , Italy Hansa pump for optional
3. HY380 farm mini loader valves: Advanced Italian Hydrocontrol valves
4. HY380 farm mini loader drive motor: slow speed big torque INI drive motor
5.HY380 farm mini loader Engine filter : Donaldson cyclonic air filter
6. All parts electrophoresis avoid rusting

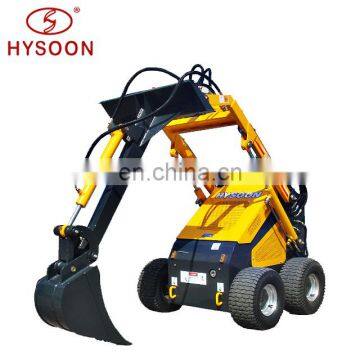

7.Different attachments for optional : digger , auger , fork , trencher , 4 in 1 bucket , stump grinder , lawn mower , ripper , leveller , totary tiller , snow blower , angle blade and so on
HY380 farm mini loader |
|
|
Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |
2. China HYSOON HY380 farm mini loader pictures:

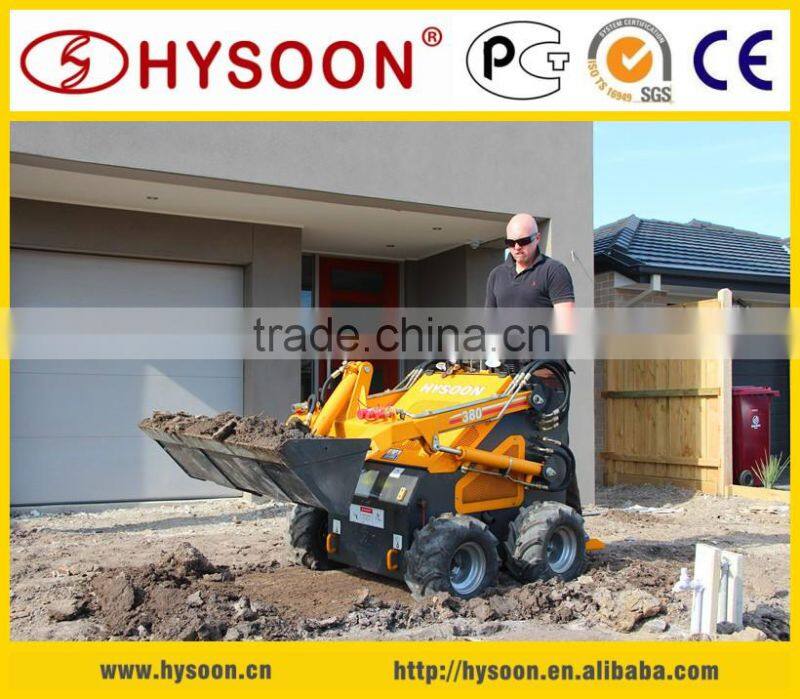

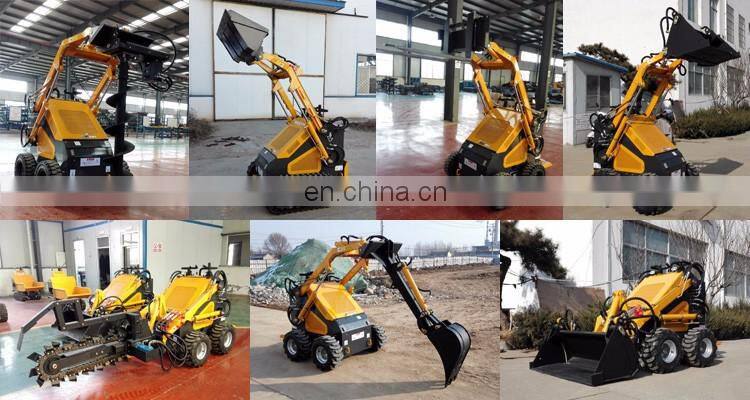

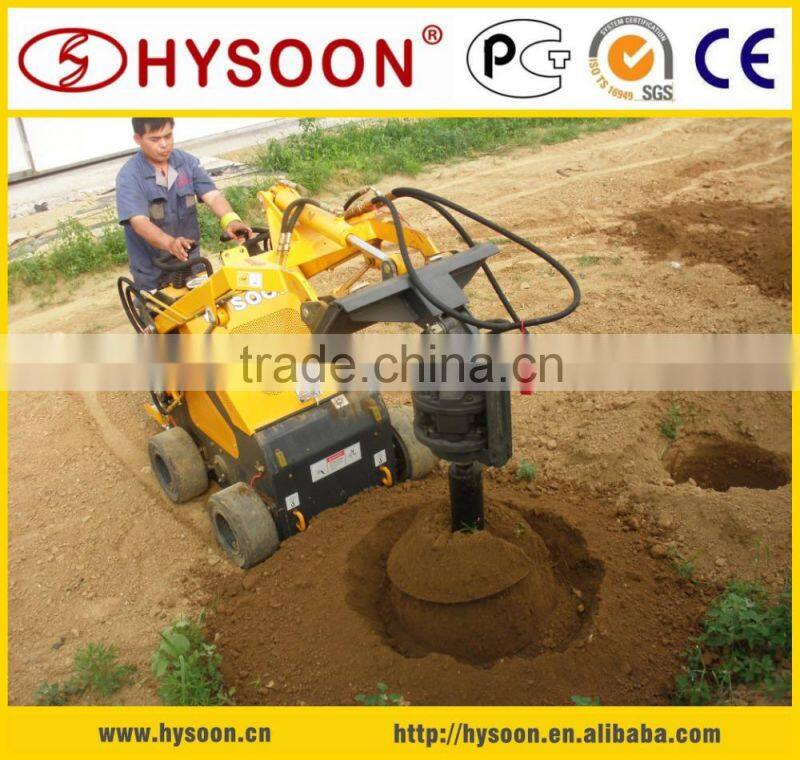

HY380 farm mini loader can do different works by quick change different accessories . Other brand like Dingo ,Toro accessories can also suitable for HY380 farm mini loader
If LCL , use plywood & iron frame package , It’s very strong to protect HY380 farm mini loader
If FCL , direct load HY380 farm mini loader into the container
Taian Hysoon Machinery Co., LTD is the first-class company engaged in the research, development and manufacture of mini skid steer loaders mini digger loaders with accessories.
Warmly Welcome you to visit our factory!
