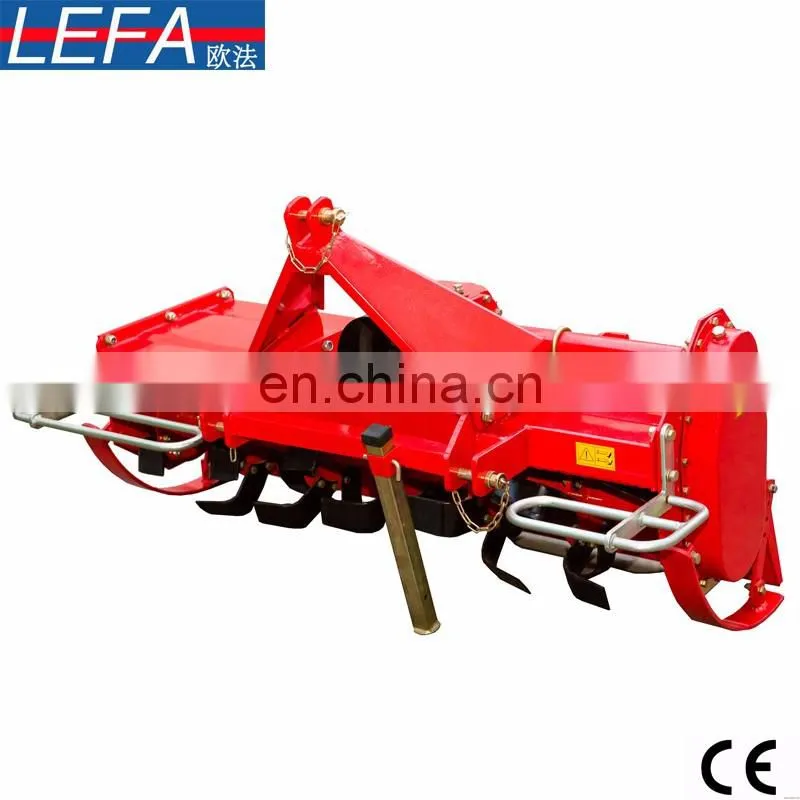

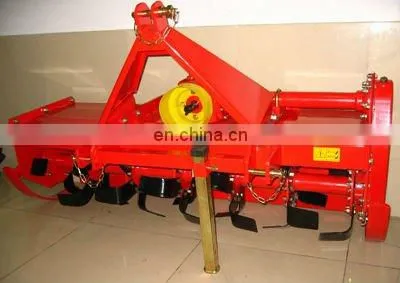

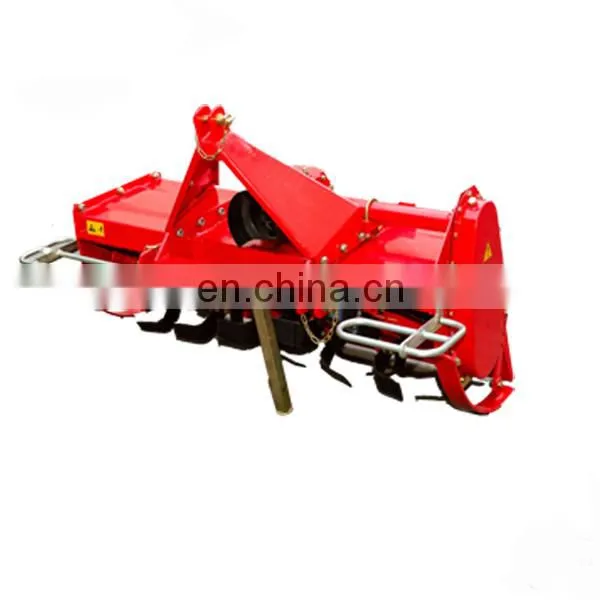

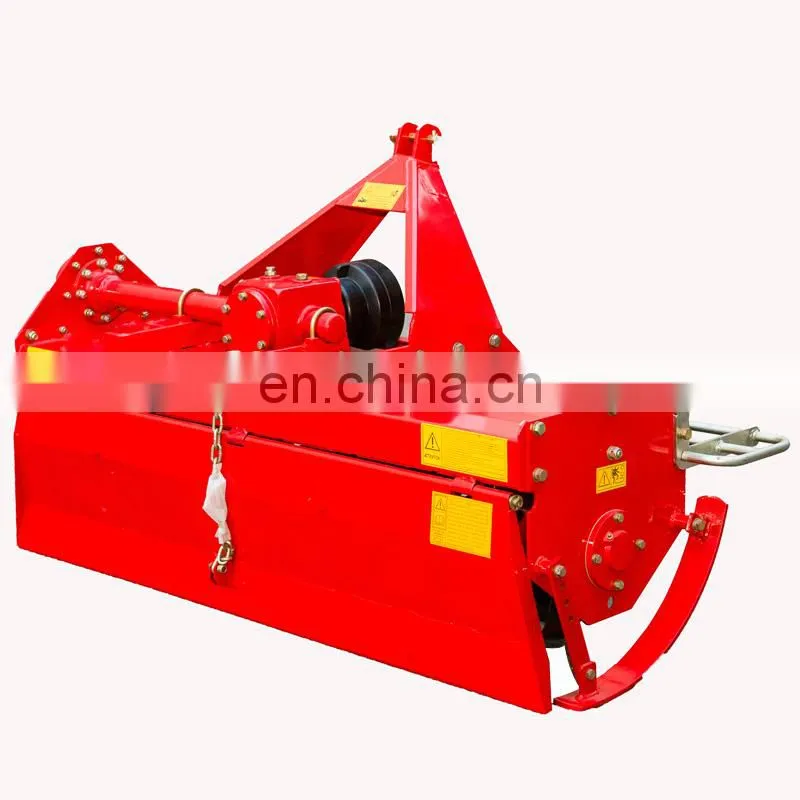

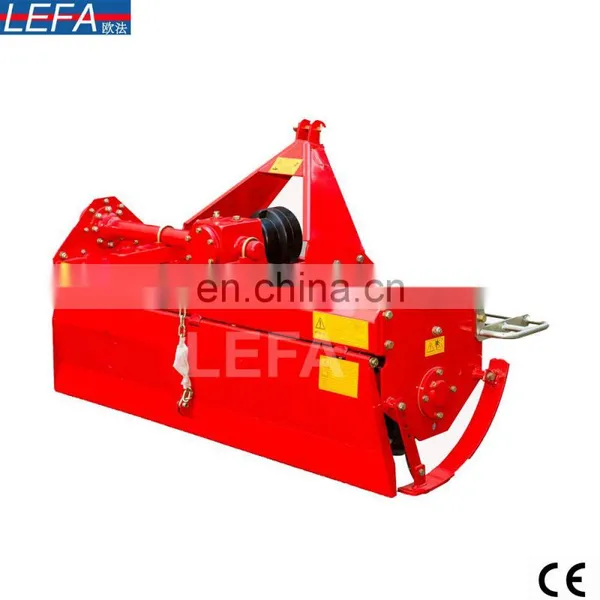

High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE

High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-1
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-2
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-3
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-4
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-5
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-6
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE thumbnail-7
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-1
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-2
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-3
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-4
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-5
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-6
High Performance 3-point PTO Rotary Tiller for Japanese Tractor With CE photo-7
US$ 900 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LEFA
Place of Origin:
Jiangsu, China
Model Number:
LFH-125
Contact Supplier Request Quote Chat Now
Changzhou Lefa Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LEFA
Place of Origin Jiangsu, China
Model Number LFH-125
Type Farm Cultivator
Use Tilling
Certification CE
After-sales Service Provided No overseas service provided
Warranty 1 Year
Weight 285kg
Dimension(L*W*H) 1450*800*700(mm)
Condition New
Product Description

The RT Series Rotary Tillers are sized right for Japanese tractors and are designed to till soil. They are ideal for sowing preparation,nurseries, gardens, farms……


Specification:

1.3 point linkage
2.Graphite casting iron gearbox
3.Tractor power required: 20-75 hp
4.With CE certification

Composition:

body，gear box，gearbox bracket，blades axis/arbor,sprocket cover,back shield, suspender,sleeve，transmission shaft.

Working principle:

The transmission shaft of tractor drive the rotation of the small sprocket,and the small sprocket dive the rotation of the big sprocket.


In this machine ,it has three-pointed linkage.These three-point suspension (the upper one and two below )is according to the CAT I standard.



Function:Used for farming

                Prepare the ground

                loose the soil before sowing


Model
LFH-105
LFH-125
LFH-135
LFH-150
LFH-180
 Dimensions(L*W*H)
1250*800*700mm
1450*800*700mm
1550*800*700mm
1700*800*700mm
2000*800*700mm
 Weight
265 kg
285 kg
300 kg
320 kg
350 kg
 Number of blades
24
30
30
36
42
 Working width
1045mm
1245mm
1345mm
1495mm
1795mm
 Working depth
120mm
120mm
120mm
120mm
120mm
 PTO Input speed
540r/min
540r/min
540r/min
540r/min
540r/min
 Power required
20-30 HP
25-35 HP
30-40 HP
30-50 HP
40-75 HP

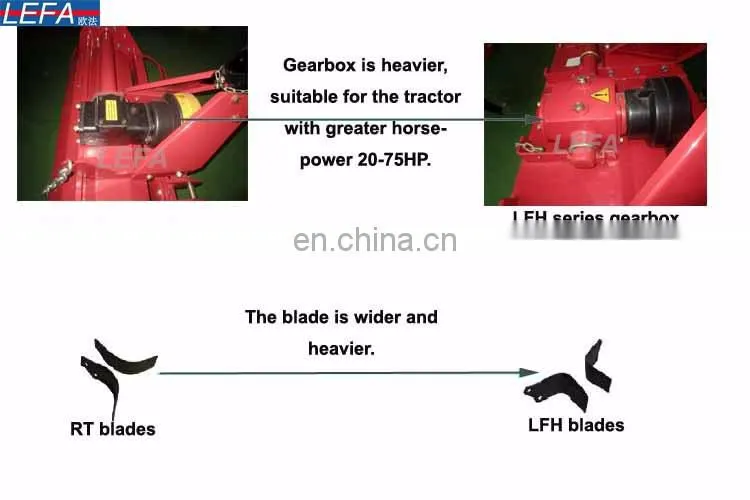

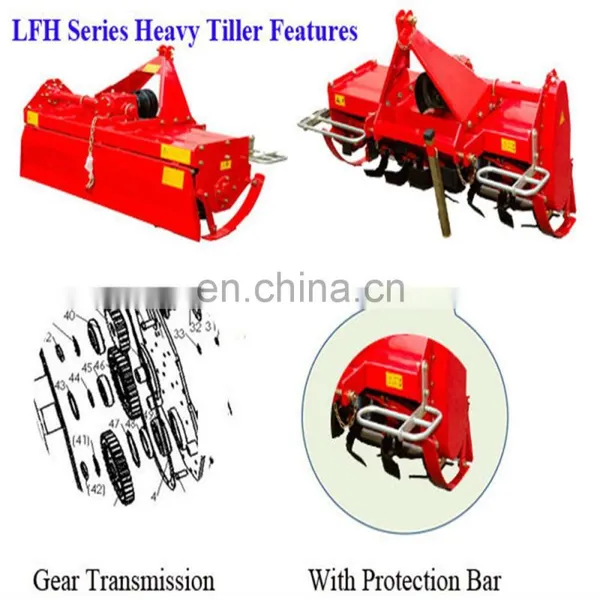

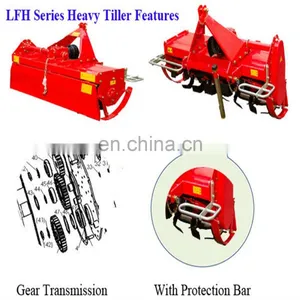

The advantage of this machine :

1.Graphite gearbox is made of casting iron. Material performance is better. Not easy broken。

The modified structure is more reasonable,connection is more reliable.

2.The lower hanging seat plate is strengthened,the suspension plate shape is not easy to deform.

3.The sprocket tension-er requires manual adjustment, it becomes simple and reliable.

4.The back barrier adds two side plates,to prevent the mud splashed out more efficiency.


Detailed Images

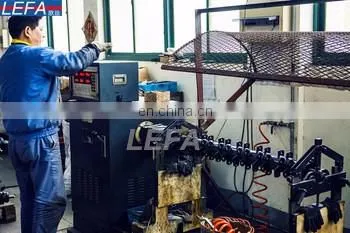

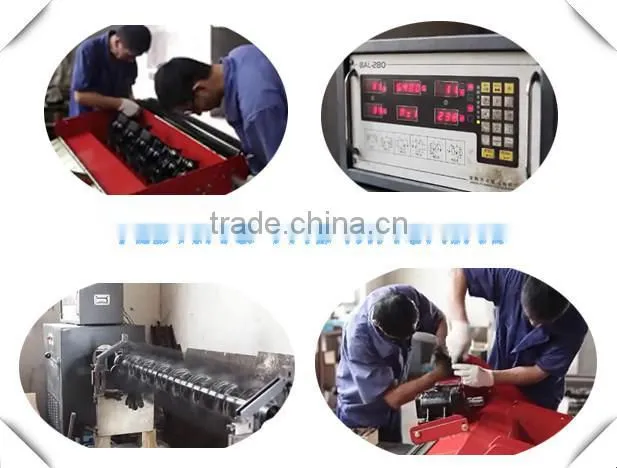

Product Test


Blade should be tested by the torque wrench before installation.


The gear oil is added into gearbox and chain cover before trial test, to guarantee high quality test

Related Products

15-30HP Small Farm Compact Tractor PTO Rotary Tiller Cultivator

95.8% Response Rate

efdl-125 verge flail mower for tractor with CE

92.8% Response Rate

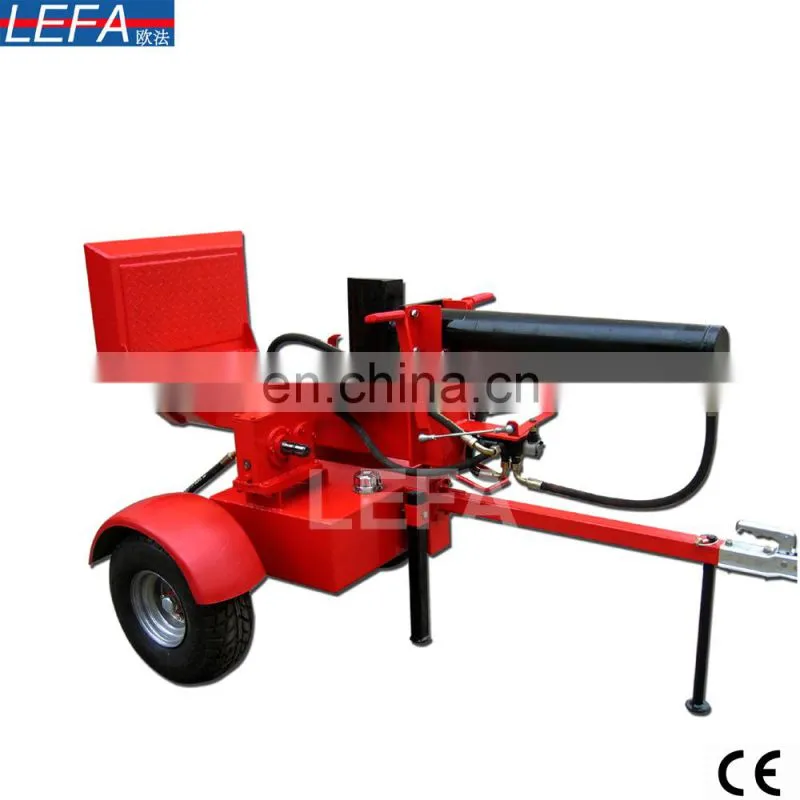

Italy Style horizontal log splitter  with CE

97% Response Rate

LEFA machines in YOUTOBE web for your reference:

/watch?v=jphaylxaKUg          RT ROTARY TILLERS

/watch?v=O_tVXodWdN8       EFG FLAIL MOWERS
/watch?v=ZuWSCmiPows     EFGL HYDRAULIC FLAIL MOWERS
/watch?v=iH6uQiqEyuQ         FM FINISHING MOWERS
/watch?v=VLUEyam_5DY     TM TOPPER MOWERS

Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: LEFA is a factory.

Q: How to buy(farm equipment tractor mower )?

A: Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm

Q: How long is the delivery date?

A:In general, we can ship the goods within 30-45 days after receiving your payment. Of course, it also depends on your quantity.

Q: What is your terms of payment ?

A: T/T, L/C, Paypal,Western Union

Favorable  Comments

Im very sorry for late my answer. We are very busy in last couple weeks. I want to stress that we are VERY SATISFIED with you and your services. We have picked the goods, everything is perfect. Goods has been reserved at customs because they suspected the illegal sending of goods from China.

------David from Germany



Regarding the mowers, I left them in Davao and I am presently in Manila & I still do not have the chance to use them yet but for sure I am very satisfied with them specially the person (you) who helped me made all of these possible. I Thank you for it.

-----Ben from Philippines



I was using the mower at the weekend and am very happy with it.

-----Edward  from New Zealand


Company&Contact us

Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools.


Our company was established in 2003


We are located in Changzhou, only one hour's distance to Shanghai or Nanjing.

The transportation is very convenient


If you are interested in our product ,please contact me!
