Home > Construction & Decoration > Prefabricated Building > Steel Structure Building > Xiamen Tong’an Stadium Project

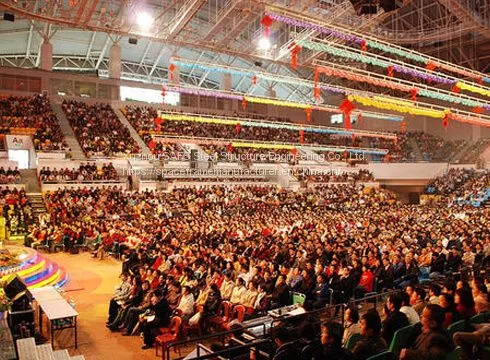

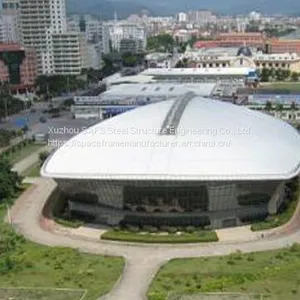

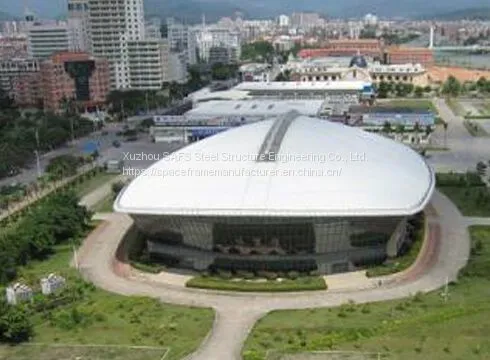

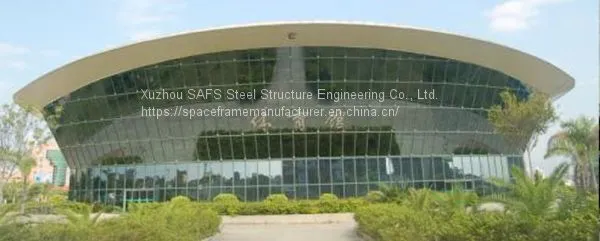

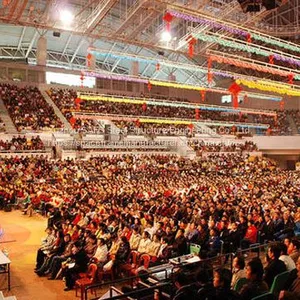

Xiamen Tong’an Stadium Project
US$ 30 - 80
MOQ: 200 Square Meters
Key Specifications
Get Latest Price
Brand Name:
SAFS
Place of Origin:
China
Model Number:
SAFS-Application
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang, Qingdao, Shanghai
Delivery Detail:
30 days
Related Products
-
Lianyungang Kaida Bonded Warehouse Space Frame ProjectUS$ 30 - 80MOQ: 200 Square Meters -
Jinlong Space Frame Roof Jacking Up ProjectUS$ 30 - 80MOQ: 200 Square Meters
-
Guangxi Shenglong Project Large Span Barrel Coal StorageSpace FrameUS$ 30 - 80MOQ: 200 Square Meters
-
Changle StadiumUS$ 30 - 80MOQ: 200 Square Meters
-
Beijing Sport University Tennis Training Stadium ProjectUS$ 30 - 80MOQ: 200 Square Meters
Brand Name
SAFS
Place of Origin
China
Model Number
SAFS-Application
Type
Light
Application
Structural Roofing
Standard
AISI, ASTM, BS, DIN, GB, JIS
Grade
Steel material
Dimensions
Requested
Span 66 m
Length 93 m
Area 6000 ㎡
Roof sandwich panel
The dimension of skylight 60*5 m
Advantage

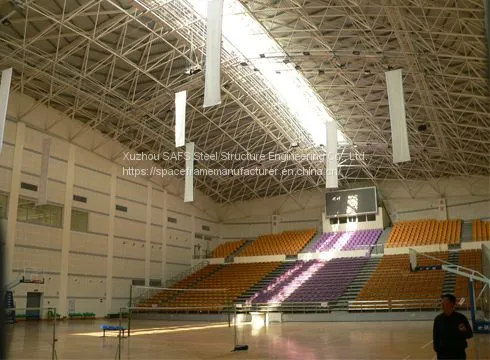

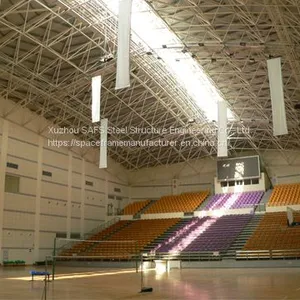

space frame project, which was one of the best-investment stadium in recent years, was located in front of Tong’an hall in Tong’an District, Xiamen. The space frame is 93 m in length and 66 m in width. It is oval shape structure and covered an area of 6000 square meter. It was 36 m in biggest span, 14 m in arch height, 11 m in eave height. The maximum elevation of the roof is 25 m and the maximum external projection is 6.75 m. The net frame is in the form of a quadrangle cone with a sagittal height of 1.7 m. The roof board is double BHP color steel plate, with 50 mm thick insulation glass wool in the middle, and a skylight with a length of 60 m and width of 5 m is set in the middle of the roof. The skylight is designed with an automatic smoke exhaust system, which can be opened automatically. The lower string has a 270 m maintenance track.
