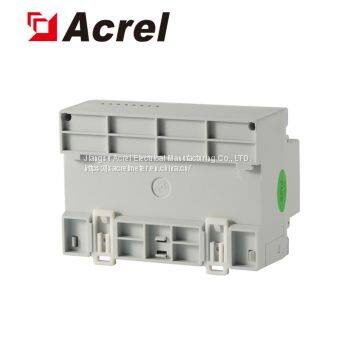

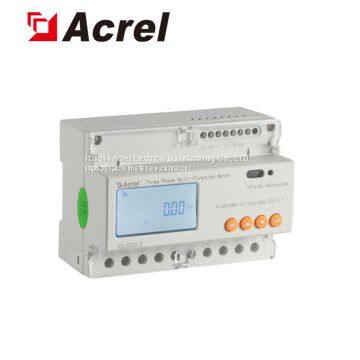

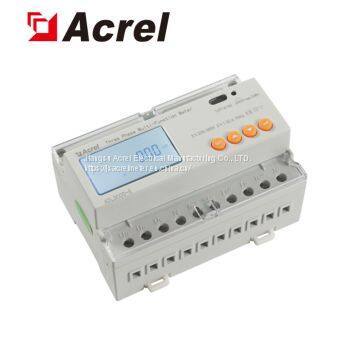

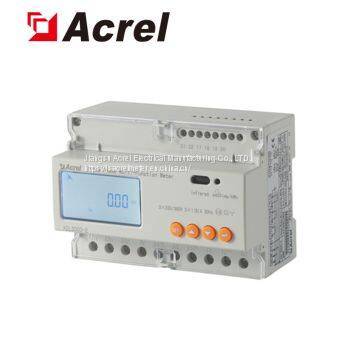

Acrel Three Phase Din Rail RS485-Modbus Power Monitoring Meter

General

ADL3000-E Three Phase Multi-Function Energy Meter

ADL3000-E power analyzer specializes in measuring the data of all kinds of AC networks. It can be used for local display, or it is connected with the control equipment in measuring and controlling system. They comply EN 61326:2006 and EN 61010-1:2001.
They are a kind of programmable analyzer. With the 2 key on the front, we can choose to read the data that we need. They can be equipped RS-485 communication Modbus-RTU.
They are a kind of analyzer with excellent cost performance, since they regroup the functions of traditional electric transmitter and digital meters. Therefore they are widely being used in kinds of control system, SCADA system and power management system.

Features

● AC 3×220/380V，3×380V，3×57.7/100V，3×100V
● 3×1（6）A，3×10（80）A
● U、I、P、Q、S、PF、kWh、kvarh
● RS485(MODBUS-RTU)
● LCD display
● Frozen data
● 2-31st Harmonics
● Alarm
● kWh Class 0.5S,kVarh Class 2

Technical Parameters

LCD Display

Function

Wiring

Typical connection

Detailed Information
