Stroke Measuring Tools Kit To test common rail injector
High Quality Lowest Price
>>>Description:
Common rail injector measurement tools is used to test the travel range for shims or valve adjusting. It is the helpful tools for you to check injector inside parts. used on CRIN1,CRIN2,CRI, and densso G2 injectors.
>>>Functions:
1.Test nozzle pin valve lift, which decides nozzle pin valve shim thickness (Horsepower different)
2.Test armature total range, which decides circlip thickness
3.Test armature range, which decides the hexagonal shim thickness below.
4.Test remaining air gap, which decides the hexagonal shim thickness above.
5.If VE is not proper, pls debug solenoid valve spring force adjusting shim.
6.If LL is not proper, pls debug nozzle pin valve spring force shim.
>>>Technical Parameters:
| Armature lift test | 45-50um |
| Cross lift test | 30-50um |
| Remainin air gap test | 35-55um |
| Armature total range | 50-70um |
| Test injector | common rail solenoid injector bos/ch dens/o |
| weight | 3kg |
You can choose the logistics method
If there is any problem with the product, we will help you answer it in time.

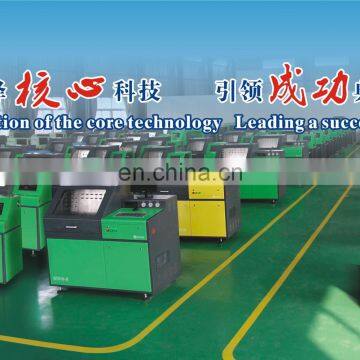

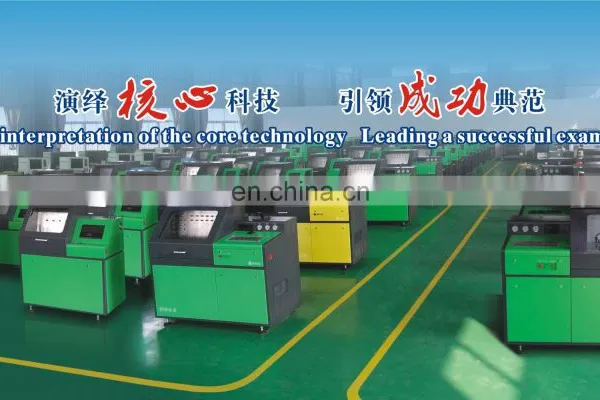

Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise
that produces common rail test bench, traditional diesel fuel injection pump
test bench, Nozzle Tester, and sells spares parts for repairing variety of
electronic diesel injection systems to serve the automobile aftermarket all
over the world.
The company pursues high standard manufacturing and qualified products. All
the products have passed the quality system certification of ISO9001:2008 &
CE certificate and entered European market. Depending on the stable and
lasting capabilities, our products are well known to international market such
as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany,
Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
