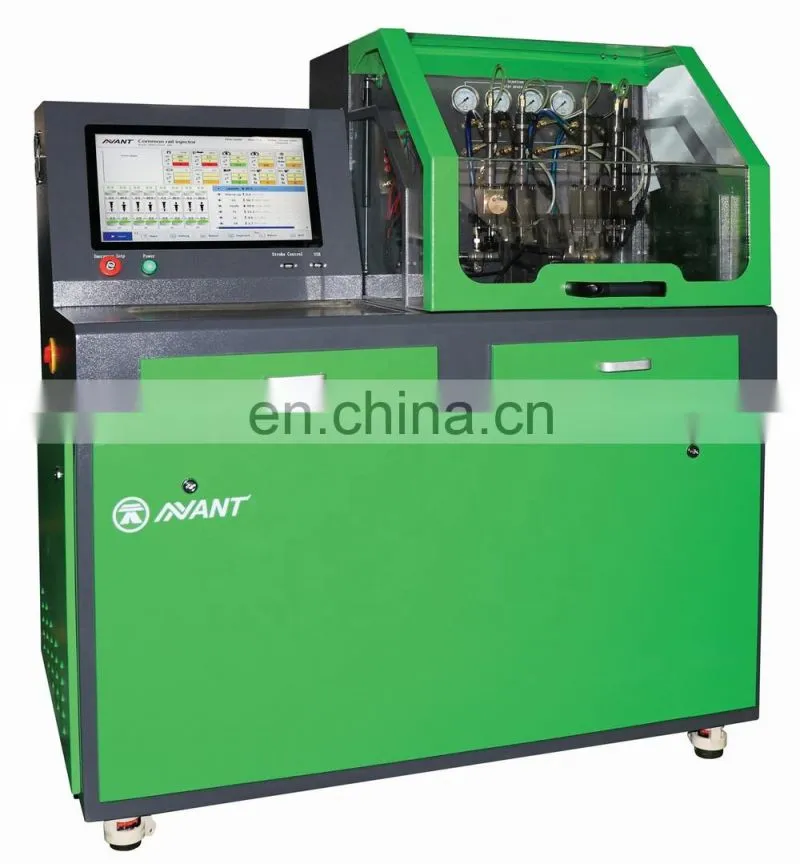

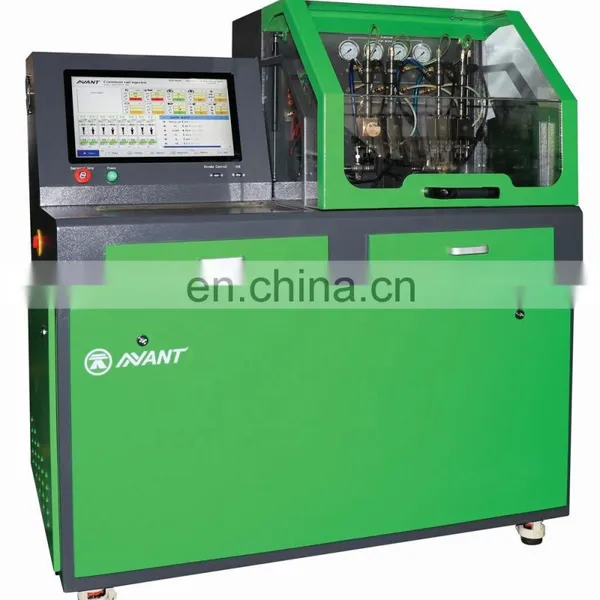

Help CenterFull Function Common Rail Injector Test Bench EPS816F Can Test Four Injectors at the Same Time
Related Products
-
EPS207 Common Rail Injector Test BenchUS$ 3,500 - 3,500MOQ: 1 Set -
NT816F Common Rail Injector Test BenchUS$ 6,850 - 6,850MOQ: 1 Set
-
EUS900B Common Rail Injector EUI/EUP Test BenchUS$ 9,850 - 9,850MOQ: 1 Piece
-
Common Rail Injector Test Bench CRI-NT816C for Testing Common Rail Injector&piezo InjectorUS$ 4,200 - 4,700MOQ: 1 Set
-
Common Rail Injector Test Bench CRI-NT816C for Testing Common Rail Injector + Piezo InjectorUS$ 4,200 - 4,700MOQ: 1 Set
Function introduction:
1.Automatically test various solenoid valve injector and piezoelectric injector
2.Automatically test the performance of injector solenoid valve
3.Four injectors can be test at the same time
4.Generate IMA code for Bosch
5.Equip Bosch 3rd stage stroke testing program and adapters.
6.Set injection current curve ,injection time and pressure.Fully automatic test of different types of solenoid valve injector and piezoelectric injector
7.Test the current of injector solenoid valve, valve assembly lift fuel injection lift
8.High pressure cleaning: high pressure cleaning impurities attached to internal parts of injector
9.Atomization test: to judge whether the injector is blocked through the atomization effect
10.Single injection: the operator can set the number of injections to conduct a single injection observation
11.Sealing test: check the sealing performance of nozzle, nozzle cap nut and solenoid valve
12.Injector test:Test the injected fuel & volume under rating,idling,Emission,pre-injection and pre-injection 2 status
13.Check, save, print data and customer information
Main configuration:
1.Size:130cmx87cmxl 50cm (L*W*H)
2.Stainless steel fuel tank with industrial air conditioner to control temperature 40 ± 2 °C circularly
3.Original Germany high precision flow sensor
4.Equip original Bosch DRV, pressure sensor (0-2600bar)
5.Include DRVZ fuel injection cooling treatment device
6.Include Oil circuit emptying treatment device
7.You can set the injection current curve by yourselves
8.The system includes original fuel injector current curve and data
9.Main motor power 5.5KW, three phases 380V 60HZ.Optional three phases 220V 60HZ, two phases 220V/60HZ in convenient for the different need of power supply in different countries
System advantage:
1.Industrial computer system: Full automatic operation, high speed operation and stable performance
2.Original Bosch test bench database. Test accuracy similar with the world-leading test bench
3.Powerful database:include more than 1,000 kinds of Bosch, Delphi, Denso,Siemens injector plan, and test plan could be updated free of charge
4.The operator can choose to test step by step or continuous test
5.The operator can set injection time and injection pressure during testing
6.The operator can choose testing results automatically judged by computer system or judge it by yourself
7.Injector database management: edit,save, revise and delete
8.Include Chinese,English,German,Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world
9.Database remote one click upgrade
Selection function:
1.Generate IMA code for Denso Delphi injector
2.Fuel injection response time test
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company pursues high standard manufacturing and qualified products. All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
