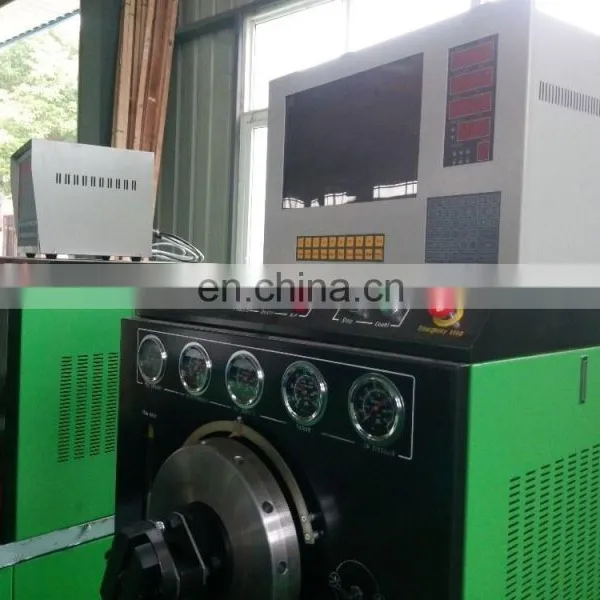

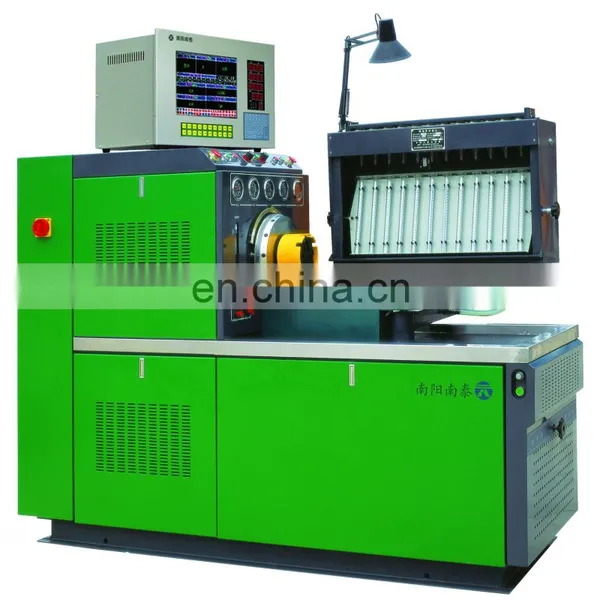

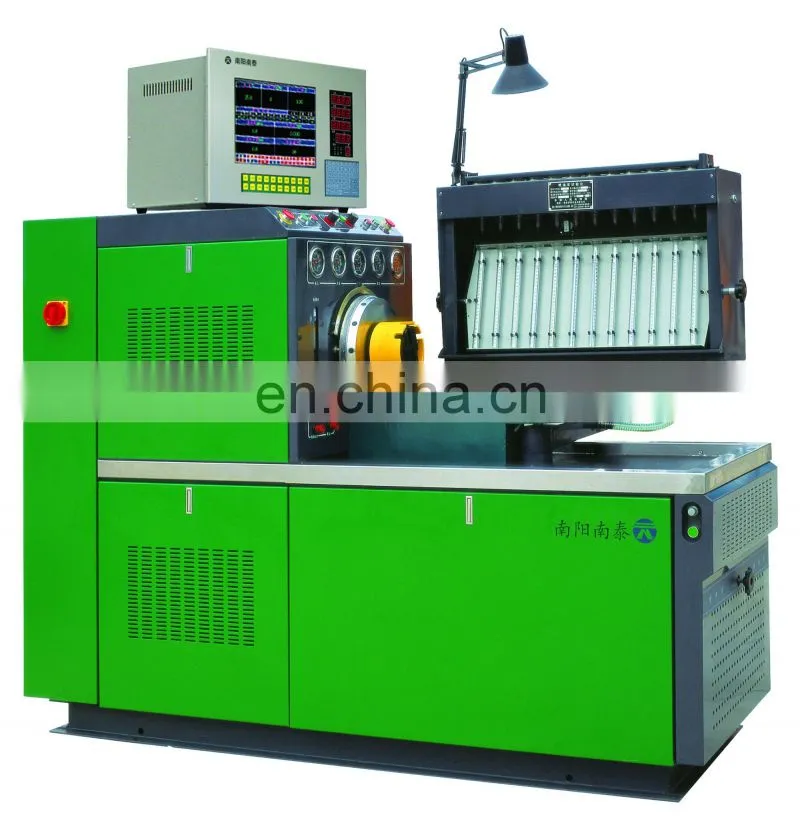

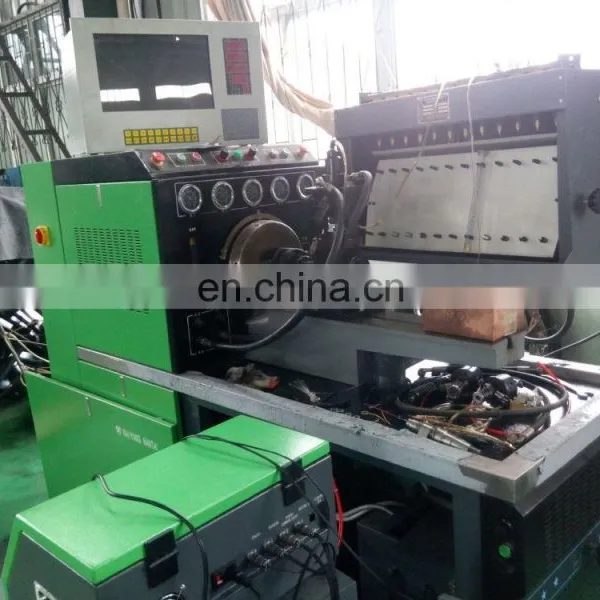

NANT Computer Manual oil discharge diesel injection pump test bench 12PSBG-3
Functions:
1.Test and debugging about oil supply amount and uniformity each cylinder of injection pump.
2.Check the oil supply spacing of each cylinder and oil supply starting point in the static state.
3.Check and adjust the performance of mechanical speed controller.
4.The sealing inspection of pump body.
5.The test of solenoid valve of distribution pump.
6.The test of return oil of distribution pump.
7.Measure the interior pressure of distribution pump.
8.Check the vacuum capacity regulators.
9.Check the pressure of compensator.
10.Checking the fuel supply pump.
11.Measure the advance timer device.
12.User can change the temperature.
Technical parameter
1. motor power: 11, 15, 18.5, 22KW
2. power supply voltage: 380/220V
3. power supply frequency: 50 / 60Hz
4. protection level: iP54
5. speed range: 0--4000rpm
6. times set range: 0--9999
7. temperature setting range: 0--80 C
8. drive shaft center height: 125mm
9. DC Power supply: 12 / 24V
10. drive coupling diameter: 120mm
11. measuring cups: 45mI, 150mi, 260ml (option)
12. number of test cylinders: 6, 8, 12
13. fuel pump: 10L / min
14. oil supply pressure: high voltage 0--40bar, low voltage 0--4bar
15. mailbox volume: 60L
16. pressure gauge: low pressure 0--6bar, high voltage 0--60bar, internal pressure 0--16bar.
17. positive and negative pressure -1--2.5bar, oil meter 0--10bar
18. heating power: 2KW
19. temperature control range: 30--65 C
20. external dimensions (long x width x high) mm:2100 * 1080*1750
21. Net weight: 900KG
Option(On Request):
1.Oil lubricate
2.Measurement of rack travel
3.Printer
1.Advanced frequency conversion technology and industrialized computer control technology with rotation speed temperature count numeral control Industrial LCD double control display system.
2.English and Chinese menu.
3.Two sides operation manually.
4.Equipped with the relevant attachments for measuring the domestic and international various kinds of high pressure oil pumps
5.Measuring the Rack Bar journey exactly.
6.Debug speed curve of injecting oil pump.
7.Automatic oil unloading device
8.Print and keep debugging data of pump.
9.Large inertia flywheel--- steady drive and good balance
Operation video for injection pump test bench
/watch?v=VNbH8eQEhXk
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company pursues high standard manufacturing and qualified products. All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
