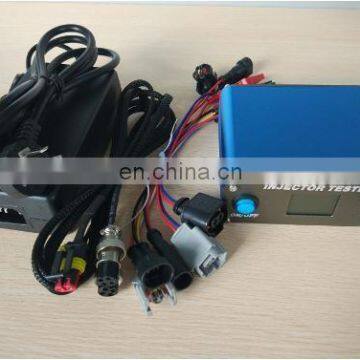

CRI100 Mini High Pressure Common Rail Injector Test Simulator With Piezo Injector Testing+S60H Nozzle Validator Tester set
PRODUCT 1:
CRI100 Mini High Pressure Common Rail Injector Tester
PRODUCT 2:

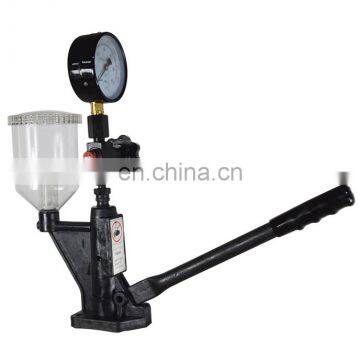

Common rail diesel nozzle Injector tester S60H
Diesel Injector Nozzle Pop Tester fuel injector nozzle tester with 0 - 400 BAR / 0 - 6000 PSI Dual Scale Gauge BOSCH injector checker is suitable for all common rail injector and mechanical injectors, auxiliary products have compression release valve, it can check the fuel injection conditions of various types of injector quickly and easily. It also can be used with common rail injector 118 solenoid valve tester to test various types of common rail injectors. The injector checker equipped with two different types of tubing. You can freely switch suitable for detecting the injector, it is a good choice to Initial inspection injector working state.
CRI100 High pressure common rail
injector tester user manual
l Support magnetic and piezo injectors
(BOSCH, DENSO,DELPHI, PIZEO, CAT);
l Overcurrent and short circuit protection;
1, Brief introduction
CRI100 high-pressure common rail injector tester function is used to drive common rail injector, while providing Bosch, Denso, Delphi and other common rail injector control signal to drive the high-pressure common rail injector to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high-pressure common rail injector in working condition to judge different conditions and maintenance.
2,Check the accessories
After receiving the goods, please open the box and check box items are consistent with the packing list immediately if any parts are missing, please contact the service personnel.
3,Operating Instructions

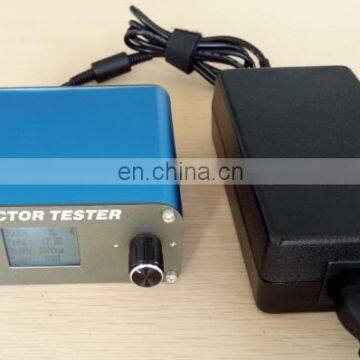

Front view
a, ON/OFF,Turn on and off injector drivers;
b, ADJ,Move cursor or modify parameters;

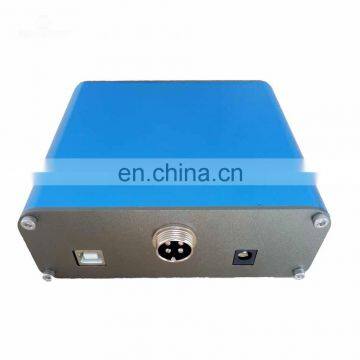

Back view:
1,spare jack;
2,injector harness;
3,24V power
4,Basic operation
Press the ADJ button to move the cursor up and down,
Rotate the ADJ button left and right to adjust the parameters of the cursor's rows,
Press the ON/OFF button to turn on or off the fuel injector drive
a,injector type Type:(BOSCH,DENSO,DELPHI,CAT,PIEZO);
b,injection frequency Freq:1~30Hz;
c,injection pulse width Width:0~6000us;
d,setting test points Point:(VL,TL,LL,VE)
5.after-sales service
1,Under normal use, due to product quality issues, free repair within one year;
2,Due to the non-normal use, causing damage to the product, the user bear the maintenance costs;
3,The product life-long maintenance, a year later, users bear the maintenance costs.
Nanyang NanTai Experimental Equipment Co.,Ltd is a joint-stock enterprise that produces common rail test bench, traditional diesel fuel injection pump test bench, Nozzle Tester, and sells spares parts for repairing variety of electronic diesel injection systems to serve the automobile aftermarket all over the world.
The company pursues high standard manufacturing and qualified products. All the products have passed the quality system certification of ISO9001:2008 & CE certificate and entered European market. Depending on the stable and lasting capabilities, our products are well known to international market such as Russia, Mongolia, Bulgaria ,Albania, Argentina, South Africa, Germany, Romania, Ukraine, Haiti, Iraq, Britain, Brazil, Malaysia and etc
Q: Are you trading company or manufacturer ?
A: We are test bench assembling factory. We have had test bench for 20 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How about the use of maintenance technology and equipment ?
A:We have free training about test bench,injector and pump maintenance.
Q: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer, if you have any requirements you can contact us directly.
