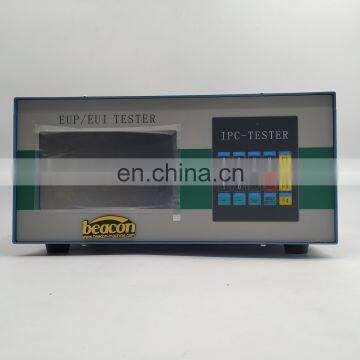

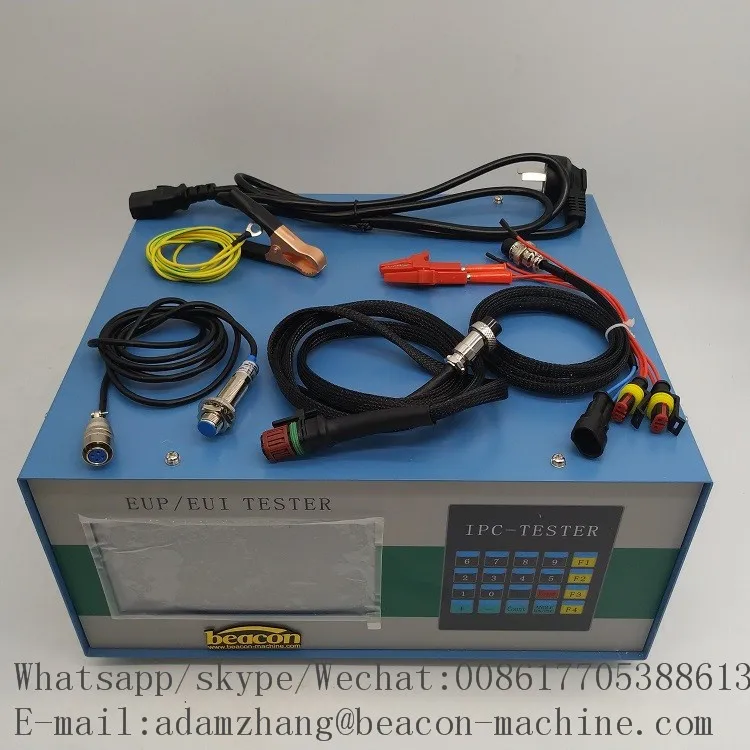

EUI EUP tester

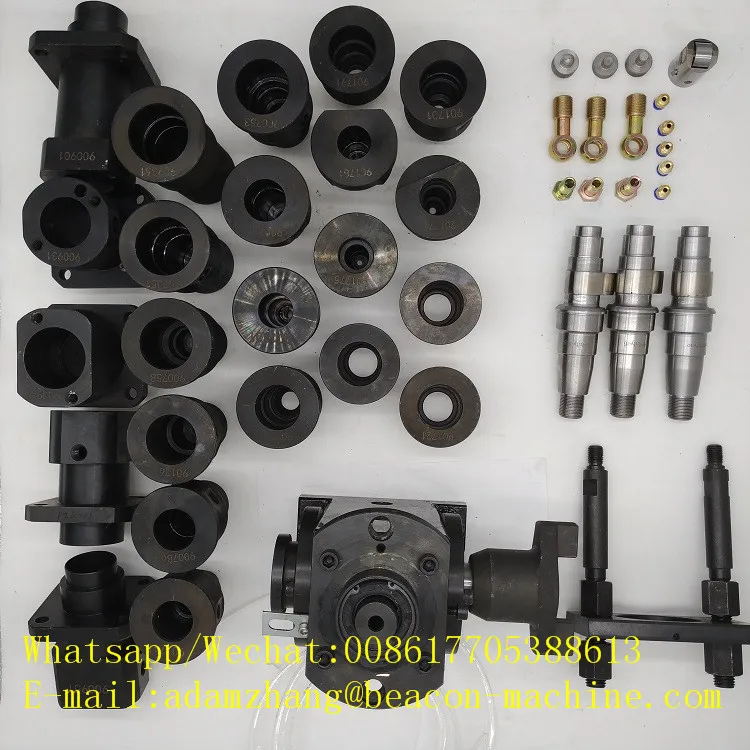

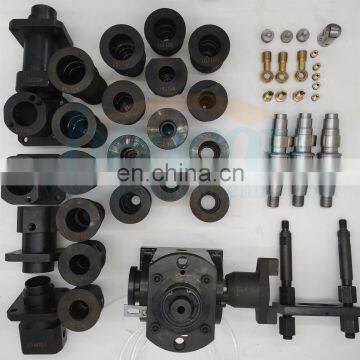

accessories | CAMBOX AND FULL ADAPTOR | ||||
DESIGN FEATURES

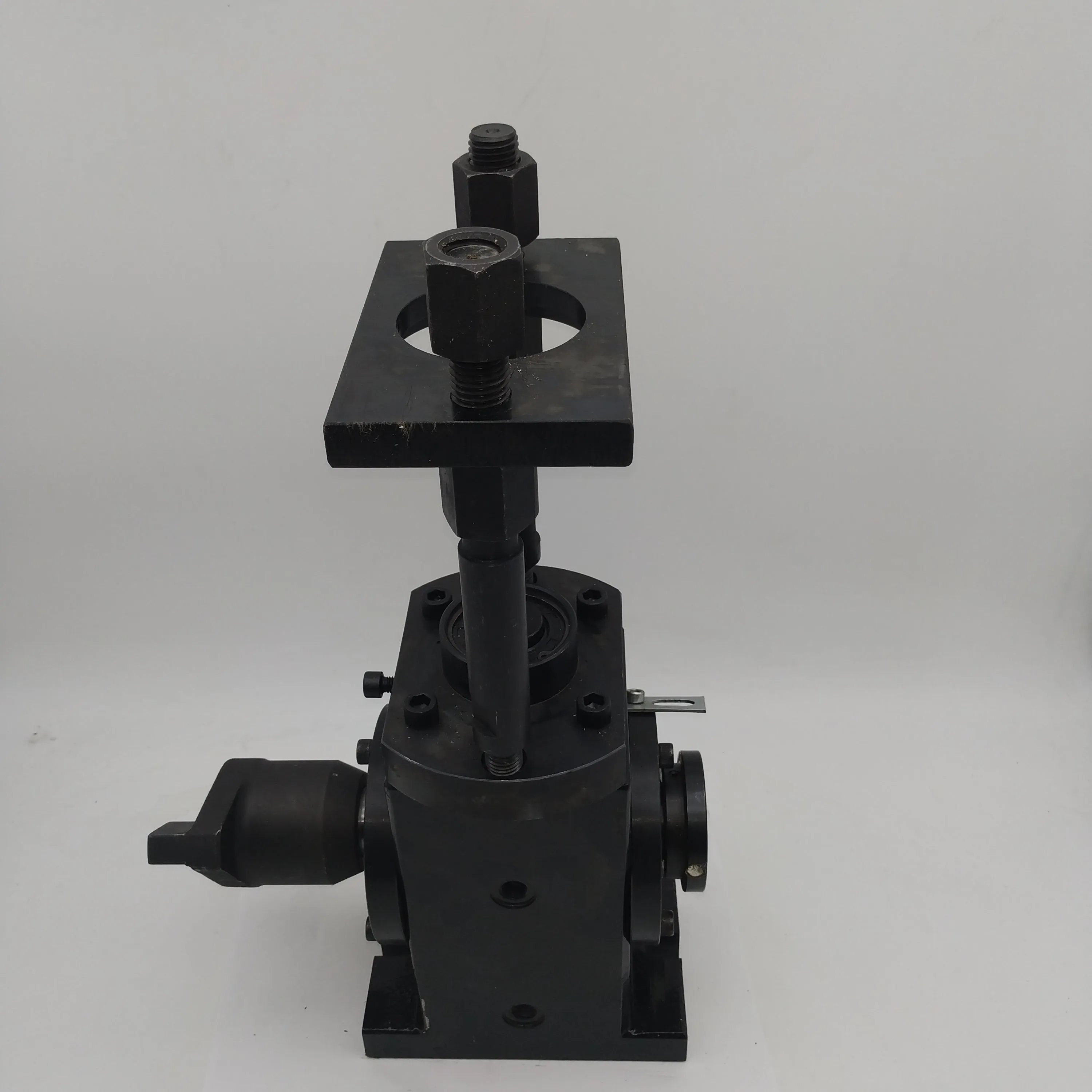

- ONE CAMBOX FOR ALL MAJOR EUI/EUP MODELS WITH CORRESPONDING ADAPTERS AND CAMSHAFTS
- CAMBOX MOUNTING HEIGHT 125MM (FROM THE CENTER OF CAMSHAFT TO BENCH MOUNTING PLATFORM) FOR BOSCH TYPE
PUMP TEST BENCH

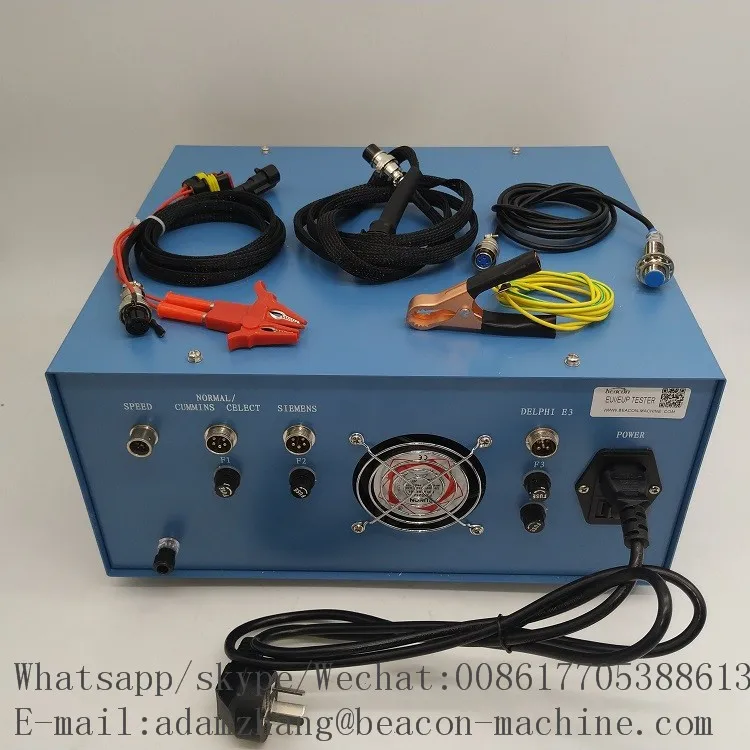

CONTROLLER IS DESIGNED FOR THREE KINDS OF DRIVE MODE:
- LOW VOLTAGE FOR MOST BATTERY VOLTAGE DRIVEN EUI/EUP
-HIGH VOLTAGE FOR CAT EUI
- CUMMING CELECT EUI

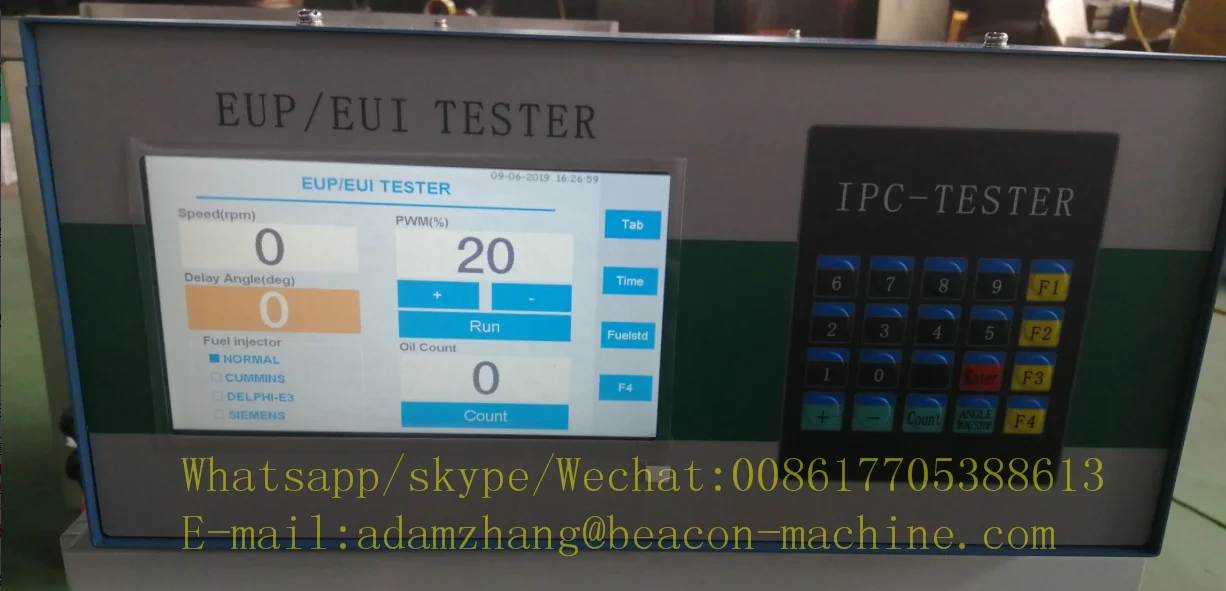

- ADJUSTABLE BEGIN OF INJECTION (BOI) IN CRANK ANGLE DEGREES
- ADJUSTABLE INJECTION PERIOD (PW) IN CRANK ANGLE DEGREES
ENGINE STANDARD CAM LOBE DESIGNS:
- FOUR LEVELS OF CAM LIFT
- CONSTANT VELOCITY CAM LOBE TO GENERATE HIGHER INJECTION PRESSURE, 3 TIMES HIGHER THAN CHEAP ECCENTRIC CAMS
- THE REPAIR TESTER IS DESIGNED TO PERFORM REPAIR TESTS FOR DIFFERENT TYPE OF ELECTRONIC UNIT INJECTORS (EUI) AND ELECTRONIC UNIT PUMPS (EUP).
- THE TESTER CONSISTS OF A MECHANICAL CAM BOX WITH SPECIFIED EUI/EUP ADAPTER KITS AND AN ELECTRONIC CONTROLLER, THE CAM BOX WILL BE DRIVEN BY A STANDARD HIGH PRESSURE FUEL INJECTION PUMP TEST BENCH.
JINAN BEACON MACHINE CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
