CIT800 diesel common rail injector tester diesel Piezo Injector tester injector driver

CIT800multifunction of common rail injector tester can accurately and effectively, to imitate ECU drive signal for each work condition of injector, such as pre injection, emission point, full load point conditions. Can drive a variety of brands, For Bossch injector,for Densoo,for Delphii and Piezo common rail injector.

CIT800 multifunction of common rail injector tester using the simple operation, can meet the detection of common rail injector combination and ordinary nozzle tester. To effectively reduce the investment threshold of repair equipment. The detector has the advantages of small size and convenient carrying can provide customers the way detection and repair of common rail injector, can greatly improve the work efficiency.
Common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It's small size and light weight, could meet the requires from repairman on the simple device of testing.
Technical Parameters:
Produce Model: CIT800

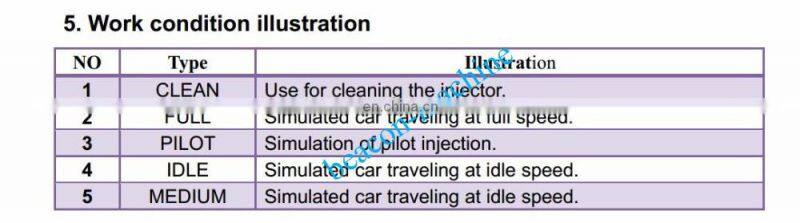

Testing Range: atomization, pilot, emission and full load condition.
Test Injectors: for Bosch, for Denso, for Delphi common rail injector,and Piezo injector
Working Voltage: AC110V-AC220V
Working Temperature: -30C°--70C°
Size: 110*260*200mm
Adjustable Width: 100us - 6 MS
Adjustable Frequency: 1-30HZ( Solenoid Injector ) 1-20HZ(Piezo Injector )
Other function : Measuring Solenoid injector impedance
Safeguard: 1,Protection fuse use in Power In 2,Hardware protection circuit 3,Software protection,4,Out connector safety protection

JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....

Welcome to visit our factory and cooperate in the future.

Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?
A:One year and offer technical support all life.
