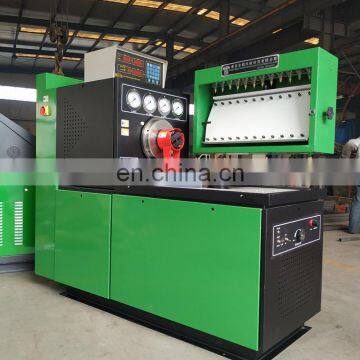

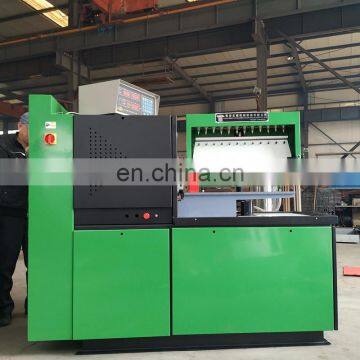

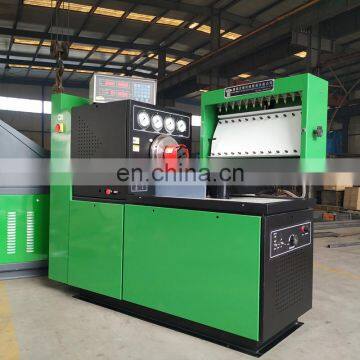

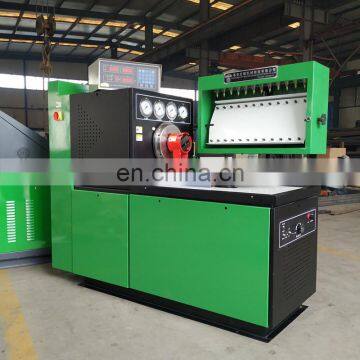

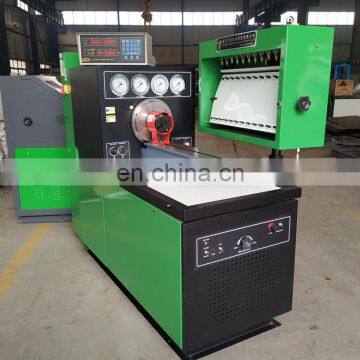

12PSB Fuel Injector Diesel Pump Test Equipment Diesel Injection Pump Test Bench
Main function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10.Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:
1.TRAVEL OF TOOTH BAR
2.OIL LUBRICATE
3.FORCED COLLING
4.Checking of the advance angle of advance device
Technical characteristic
Type |
Technical characteristic |
Output power(KW) |
||
12PSB-I
|
1.test cylinders:12
2.RPM 0-4000.
3.Three speed preset.
4.With 12v/24v DC power
5.digital display of oil cont times
|
5.5
7.5
11
15
18.5
|
||
12PSB220V-I |
SAME 12PSB-I |
|||
12PSB-II |
1.test cylinders:12
2.RPM 0-4000
3.Three speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.digital display of temperature
7.Measurement of oil return of distributing pumps
8.the internal pressure of VE pump
|
5.5
7.5 11 15 18.5 |
||
12PSB220V-II |
SAME 12PSB-II |
|||
12PSB-III
|
1.test cylinders:12
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measurement of oil return of distributing pumps
9.Measure oil flux of VE pumps
10.Measure the internal pressure of VE pump.
|
5.5
7.5
11
15
18.5
|
||
12PSB220V-III |
SAME 12PSB-III |
|||
12PSB-IV
|
1.test cylinders:12
2.RPM 0-4000
3.Ten speed preset
4.With 12v/24v DC power
5.digital display of oil count times
6.Digital display of temperature
7.with air supply
8.Measure advance angle
9. Measure oil return of VE pumps
10. Measure oil flux of VE pumps
11.Measure the internal pressure of VE pump.
|
5.5
7.5 11 15 18.5 |
||
12PSB220V-IV |
SAME 12PSB-IV |
|||
JINAN BEACON MACHINE CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
